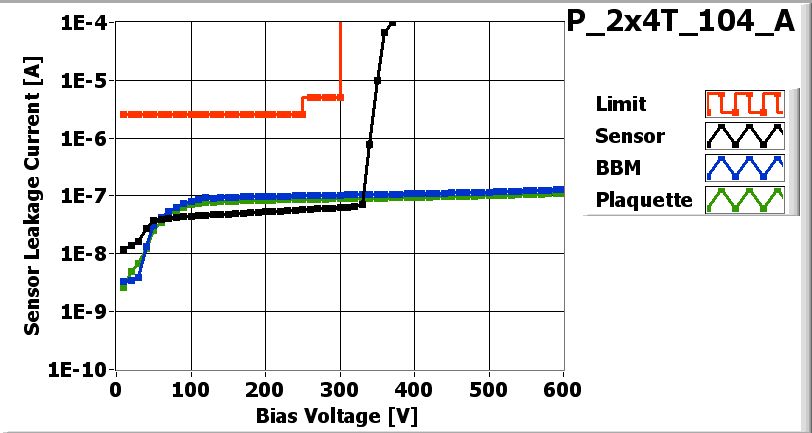

![[IMAGE] of](P_2x4T_104_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

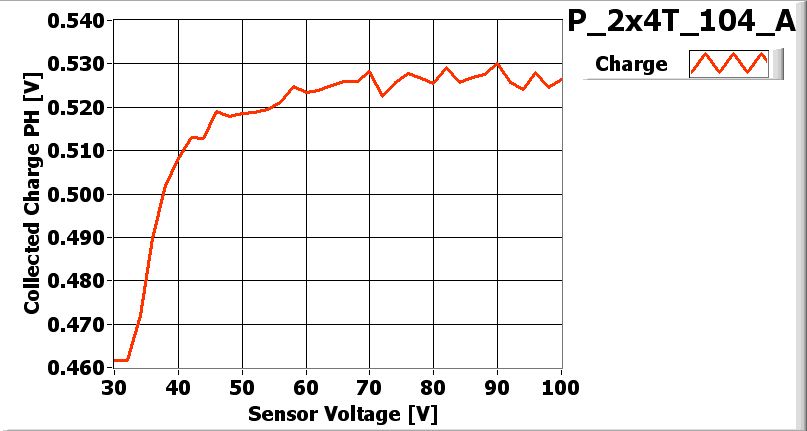

![[IMAGE] of](P_2x4T_104_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 2/9/2007
| Part | ID |
|---|---|
| BBM | BBM_104-2x4T |
| VHDI | 2x4_444 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W33_XC4K5LT | 54D |
| ROC1 | W33_XC4K5LT | 54A |
| ROC2 | W33_XC4K5LT | 53D |
| ROC3 | W33_XC4K5LT | 53B |
| ROC4 | W33_XC4K5LT | 33C |
| ROC5 | W33_XC4K5LT | 33D |
| ROC6 | W33_XC4K5LT | 34A |
| ROC7 | W33_XC4K5LT | 34B |
Inspected by Lockwood Gale on date 2/14/2007
| LR_dev | 0.057 |
| LL_dev | 0.034 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 2/14/2007 by Lockwood Gale
P_2x4T_104_Aon 2/16/2007 9:33 AM
P_2x4T_104_Aon 2/16/2007 9:33 AM
PLAQUETTE TESTED on 2007-02-16 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 140 | 134 | 126 | 144 | 130 | 138 | 130 | 128 | |
| Vana | 134 | 142 | 126 | 142 | 135 | 135 | 145 | 124 | |
| Cal_Del | 74 | 62 | 83 | 69 | 69 | 74 | 72 | 75 | |
| Vthrs_Comp | 78 | 79 | 69 | 83 | 78 | 84 | 84 | 72 | |
| Unbumped | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4T_104_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

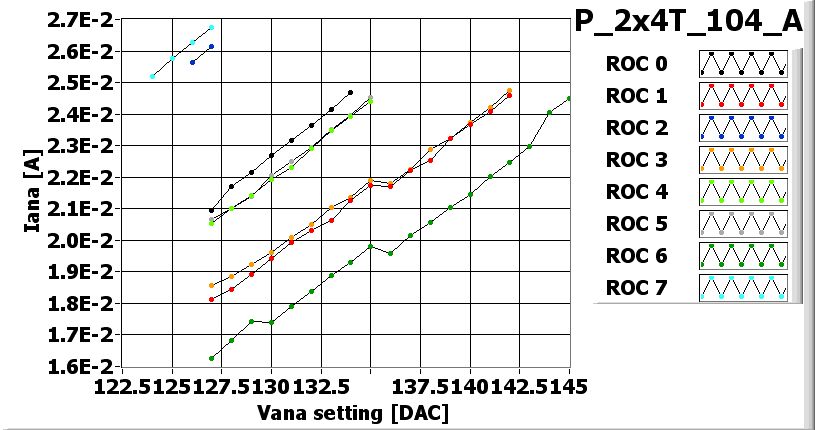

![[IMAGE] of](P_2x4T_104_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4T_104_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4T_104_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4T_104_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4T_104_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 105 | 120 | 95 | 115 | 105 | 90 | 120 |
| Vsf | 140 | 140 | 140 | 145 | 140 | 140 | 145 | 140 |
| VoffsetOp | 85 | 75 | 70 | 90 | 70 | 100 | 85 | 75 |
| VIbias_PH | 100 | 105 | 100 | 100 | 105 | 100 | 100 | 100 |

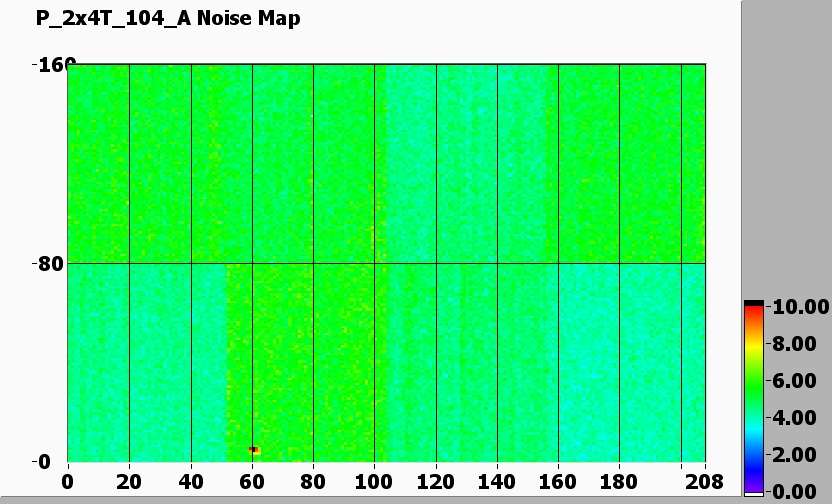

Noise MAP
![[IMAGE] of](P_2x4T_104_A-100-noise.jpg)

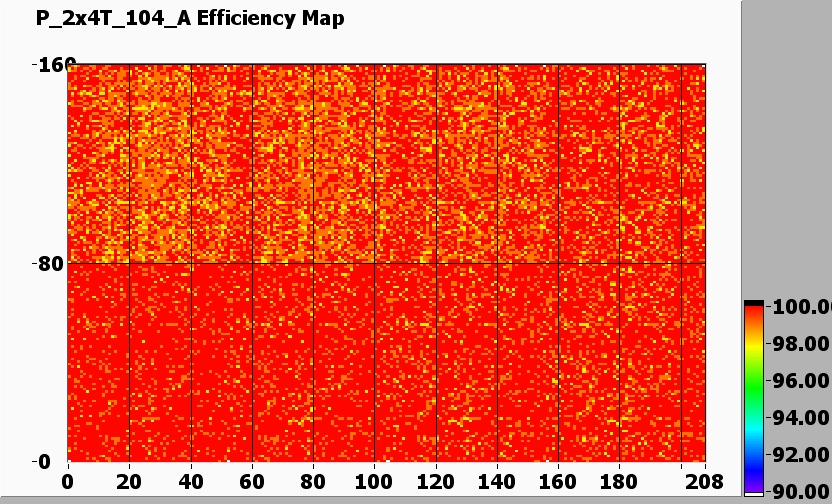

Efficiency MAP
![[IMAGE] of](P_2x4T_104_A-100-efficiency.jpg)
EXTRA DACs for NOISE
| VHldDe | 120 | 105 | 120 | 95 | 115 | 105 | 90 | 120 |
| Vsf | 140 | 140 | 140 | 145 | 140 | 140 | 145 | 140 |
| VoffsetOp | 85 | 75 | 70 | 90 | 70 | 100 | 85 | 75 |
| VIbias_PH | 100 | 105 | 100 | 100 | 105 | 100 | 100 | 100 |
PLAQUETTE READY TO BE POTTED
