Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
---|---|---|---|---|

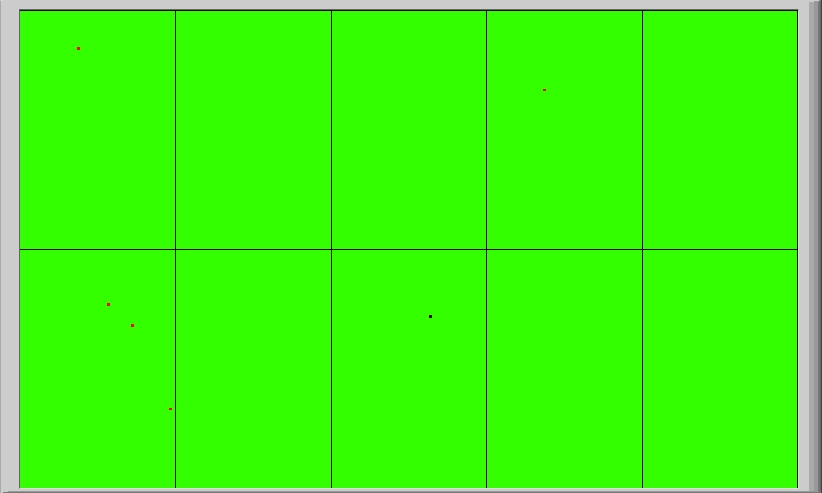

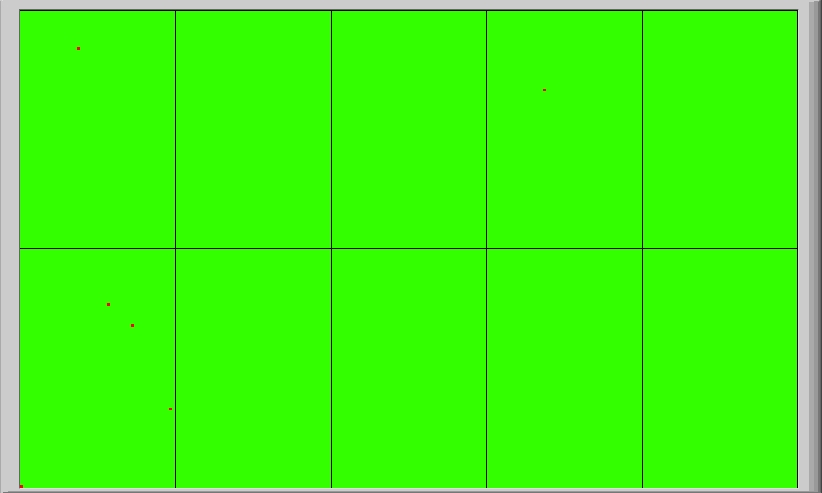

P_2x5_050_C | 3 | |||

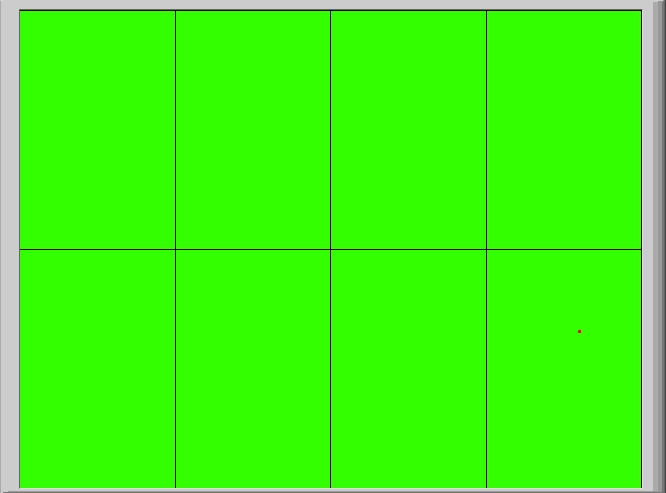

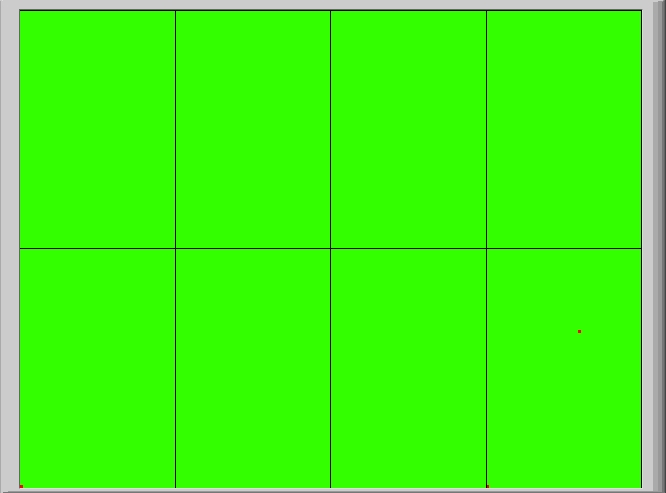

P_2x4T_104_A | 2 | |||

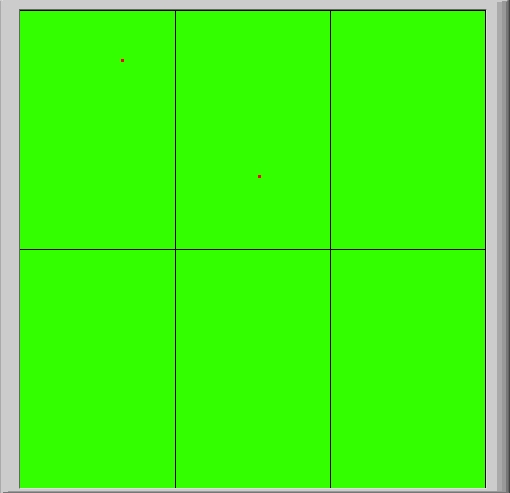

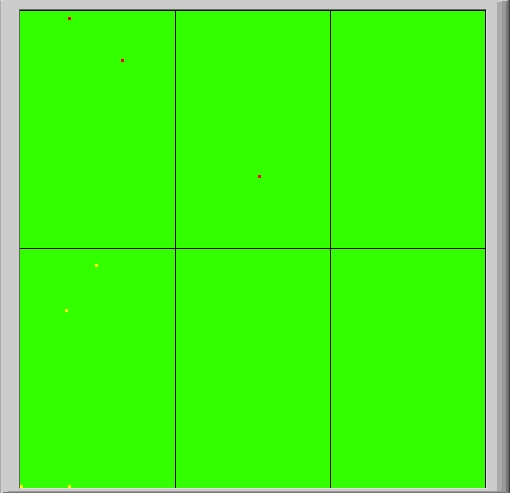

P_2x3B_047_C | 1 |
Panel assembly comments |
---|
The lower wirebond field on the 2x5 plaquette was flapping. Some epoxy Araldite 2011 was applied and the flapping was minimized. Some bouncing of the VHDI remained, but our wirebond operator assured the bonds are good. |
