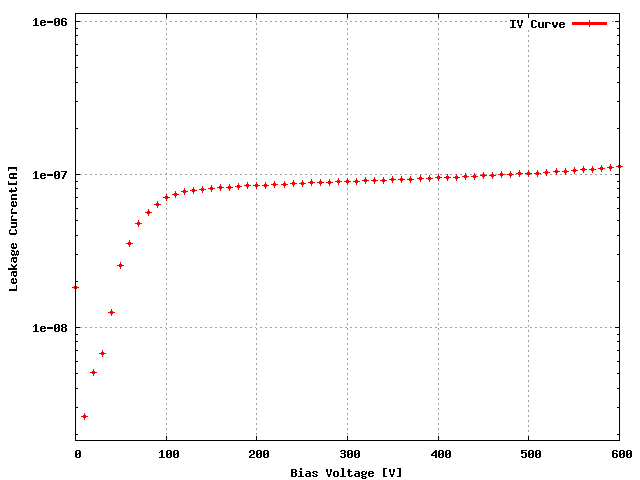

Sensor: S_2x4T_10, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W33_XC4K5LT | 54D |
ROC1 | W33_XC4K5LT | 54A |
ROC2 | W33_XC4K5LT | 53D |
ROC3 | W33_XC4K5LT | 53B |
ROC4 | W33_XC4K5LT | 33C |
ROC5 | W33_XC4K5LT | 33D |
ROC6 | W33_XC4K5LT | 34A |
ROC7 | W33_XC4K5LT | 34B |
Ibias_DAC, Ibias_DAC Data | 140 | 134 | 126 | 144 | 130 | 138 | 130 | 128 |
Vana, VanaData | 134 | 142 | 126 | 142 | 135 | 135 | 145 | 124 |
CalDelData and plots | 74 | 62 | 83 | 69 | 69 | 74 | 72 | 75 |
VthrCompData and plots | 78 | 79 | 69 | 83 | 78 | 84 | 84 | 72 | Depletion Voltage is -46 and suggested operational voltage is -86
TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 0 | 1 | 0 | 0 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |

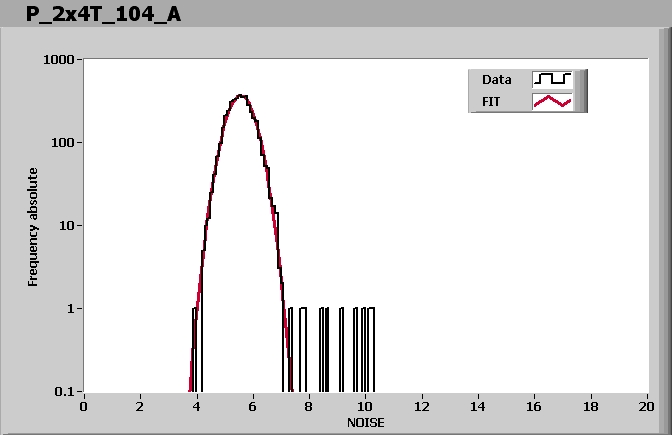

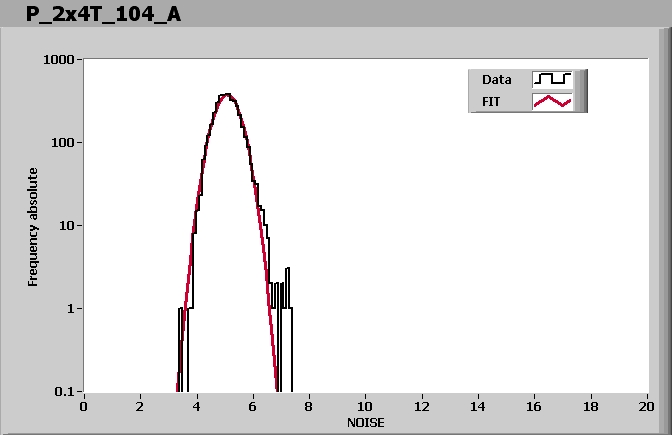

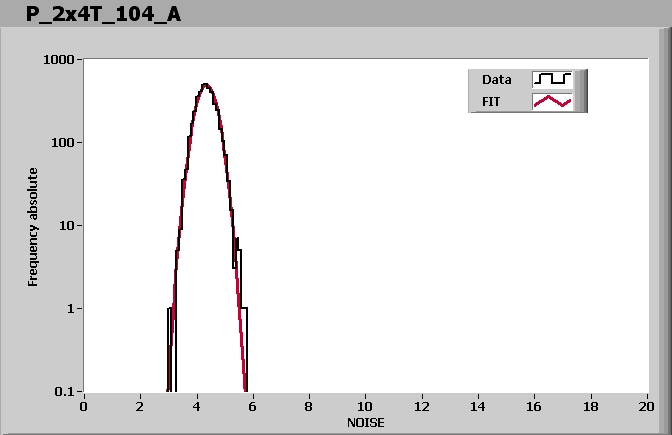

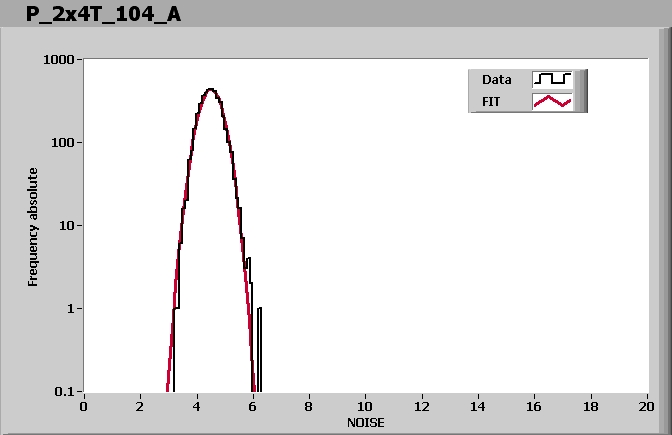

Noise MAP
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 120 | 105 | 120 | 95 | 115 | 105 | 90 | 120 |
Vsf | 140 | 140 | 140 | 145 | 140 | 140 | 145 | 140 |
VoffsetOp | 85 | 75 | 70 | 90 | 70 | 100 | 85 | 75 |
VIbias_PH | 100 | 105 | 100 | 100 | 105 | 100 | 100 | 100 |
Comment (if any):
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 10:01 AM
