![[IMAGE] of](P_2x4B_028_C_IV.jpg)

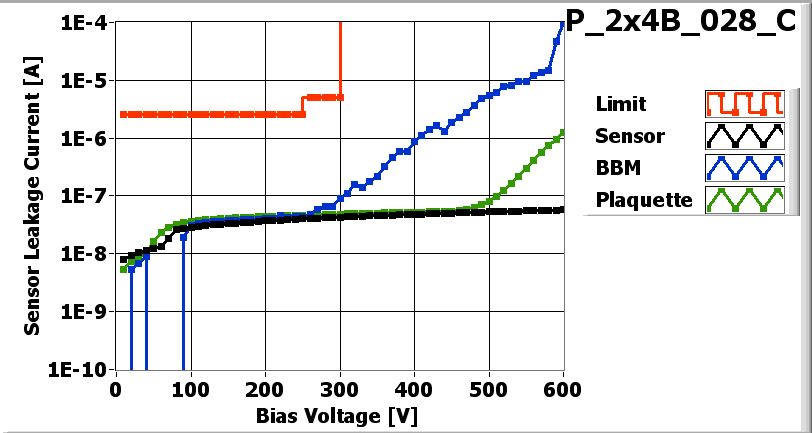

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_028_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 2/5/2007
| Part | ID |
|---|---|
| BBM | BBM_028-2x4B |
| VHDI | 2x4_434 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 38B |
| ROC1 | XE4K3KT | 33A |
| ROC2 | XE4K3KT | 32B |
| ROC3 | XE4K3KT | 32A |
| ROC4 | XE4K3KT | 37A |
| ROC5 | XE4K3KT | 36B |
| ROC6 | XE4K3KT | 35A |
| ROC7 | XE4K3KT | 34B |
Inspected by Lockwood Gale on date 2/12/2007
Inspected by Lockwood Gale on date 2/12/2007
| LR_dev | 0.096 |
| LL_dev | 0.104 |
| FINAL COMMENT by Lockwood Gale | No assembly problem. No wirebonding problems. |
PLAQUETTE made READY for testing on 2/12/2007 by Lockwood Gale
P_2x4B_028_Con 2/12/2007 10:50 AM
P_2x4B_028_C-1on 2/12/2007 10:52 AM
P_2x4B_028_C-1on 2/12/2007 10:52 AM
PLAQUETTE TESTED on 2007-02-12 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 140 | 132 | 138 | 130 | 142 | 144 | 130 | 138 | |
| Vana | 123 | 133 | 121 | 128 | 133 | 131 | 123 | 125 | |
| Cal_Del | 78 | 94 | 101 | 86 | 83 | 88 | 78 | 79 | |
| Vthrs_Comp | 84 | 65 | 69 | 74 | 66 | 70 | 88 | 75 | |
| Unbumped | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x4B_028_C_Ibias-dac.jpg) |

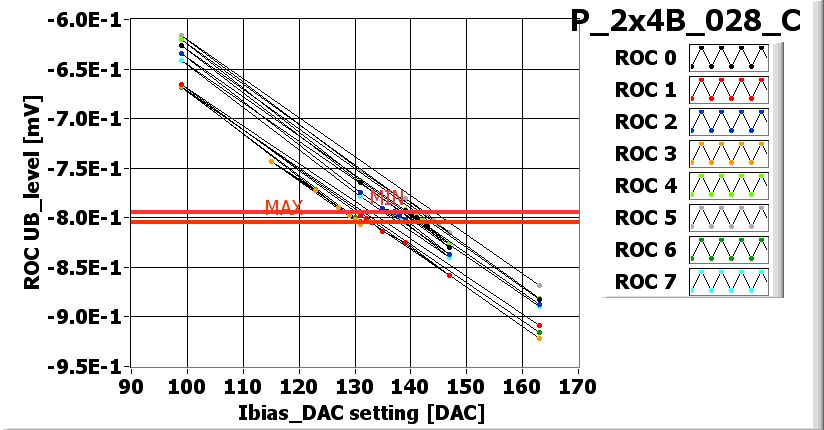

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x4B_028_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_028_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_028_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_028_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_028_Cno-bump-light.jpg) |
LIGHT_XML-File |
Noise MAP
![[IMAGE] of](P_2x4B_028_C-1-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x4B_028_C-1-100-efficiency.jpg)
| ROC0 NOISE | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC0-HISTO.jpg) | MEAN = 4.515405SIGMA = 0.343679 |
| ROC1 NOISE | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC1-HISTO.jpg) | MEAN = 4.269653SIGMA = 0.328804 |
| ROC2 NOISE | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC2-HISTO.jpg) | MEAN = 3.884154SIGMA = 0.293516 |
| ROC3 NOISE | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC3-HISTO.jpg) | MEAN = 4.515124SIGMA = 0.359551 |
| ROC4 NOISE | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC4-HISTO.jpg) | MEAN = 5.102069SIGMA = 0.412272 |
| ROC5 NOISE | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC5-MAP.jpg) | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC5-HISTO.jpg) | MEAN = 4.274431SIGMA = 0.329083 |
| ROC6 NOISE | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC6-MAP.jpg) | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC6-HISTO.jpg) | MEAN = 4.262336SIGMA = 0.331378 |
| ROC7 NOISE | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC7-MAP.jpg) | ![[IMAGE] of](P_2x4B_028_C-1-100-noise-ROC7-HISTO.jpg) | MEAN = 4.456912SIGMA = 0.359696 |
PLAQUETTE READY TO BE POTTED
