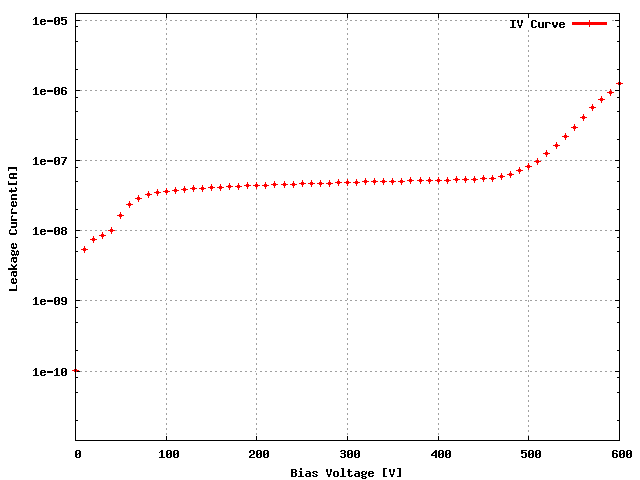

Sensor: S_2x4B_02, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XE4K3KT	38B
ROC1	XE4K3KT	33A
ROC2	XE4K3KT	32B
ROC3	XE4K3KT	32A
ROC4	XE4K3KT	37A
ROC5	XE4K3KT	36B
ROC6	XE4K3KT	35A
ROC7	XE4K3KT	34B

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	140	132	138	130	142	144	130	138
Vana, VanaData	123	133	121	128	133	131	123	125
CalDelData and plots	78	94	101	86	83	88	78	79
VthrCompData and plots	84	65	69	74	66	70	88	75
TestDdata ,TestD Plots	0	0	1	0	3	0	0	0
LightData ,Light Plots	0	0	1	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

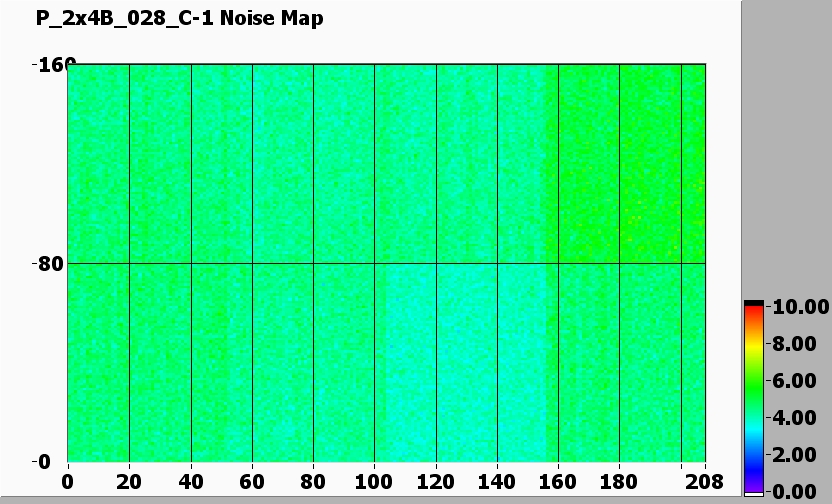

Noise MAP

Efficiency MAP

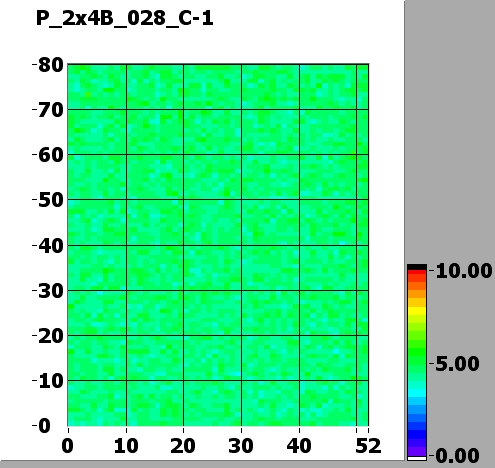

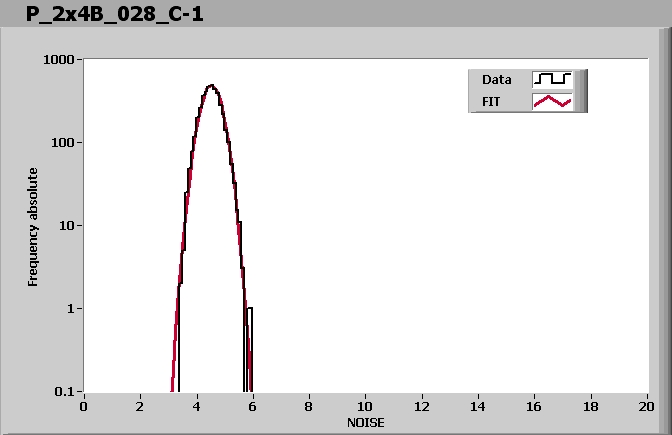

ROC0 NOISE			MEAN = 4.515405 SIGMA = 0.343679

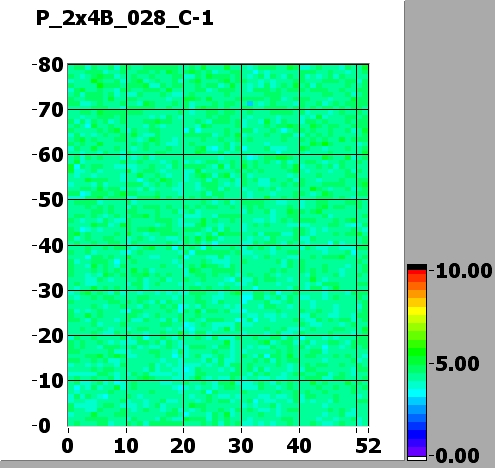

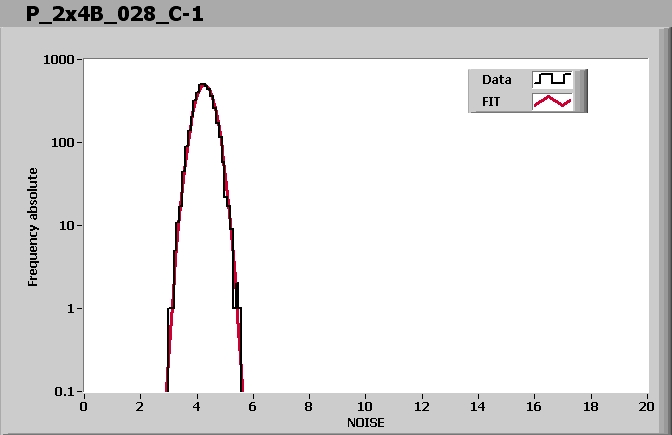

ROC1 NOISE			MEAN = 4.269653 SIGMA = 0.328804

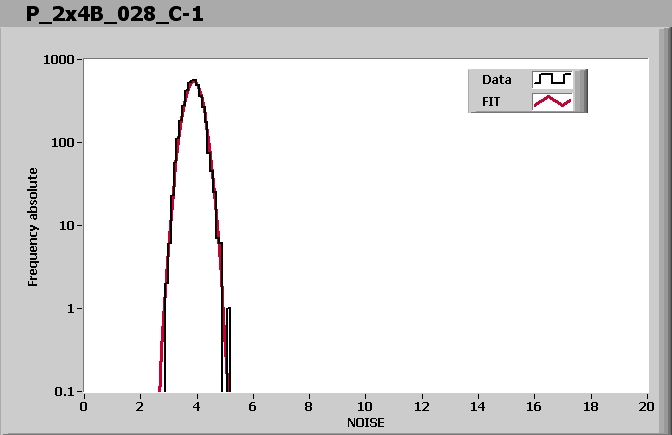

ROC2 NOISE			MEAN = 3.884154 SIGMA = 0.293516
ROC3 NOISE			MEAN = 4.515124 SIGMA = 0.359551

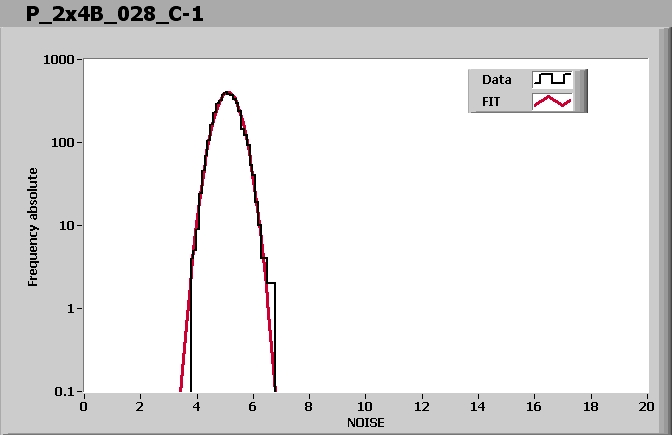

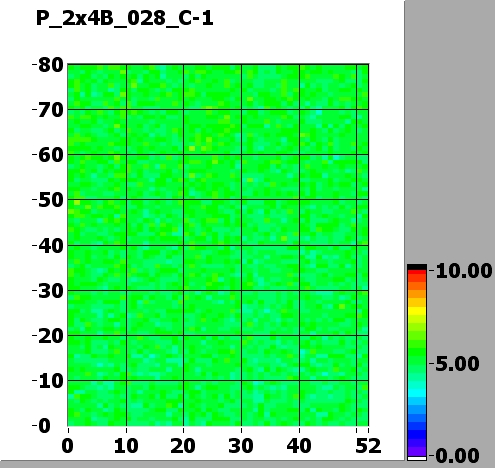

ROC4 NOISE			MEAN = 5.102069 SIGMA = 0.412272

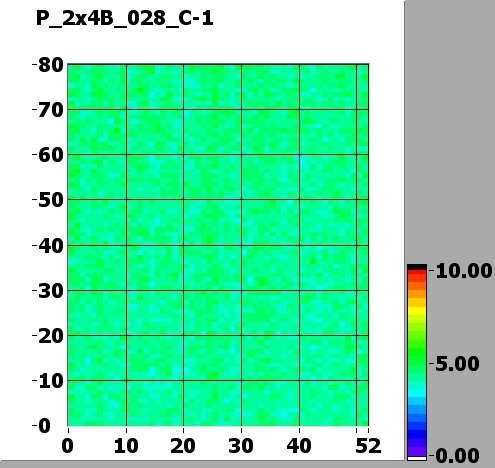

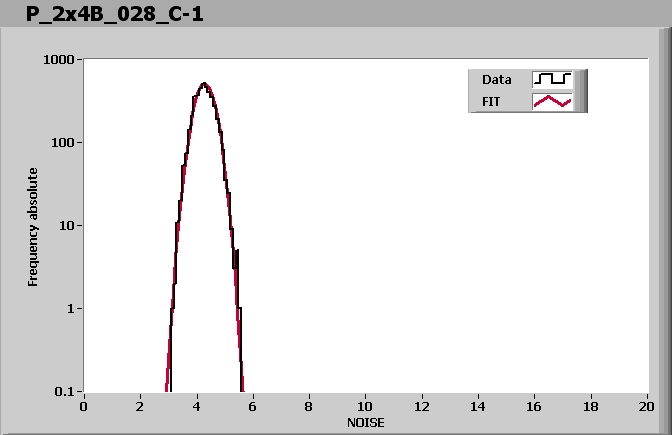

ROC5 NOISE			MEAN = 4.274431 SIGMA = 0.329083

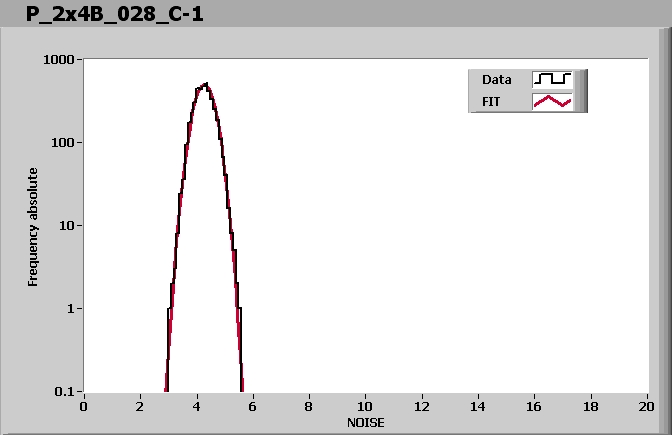

ROC6 NOISE			MEAN = 4.262336 SIGMA = 0.331378

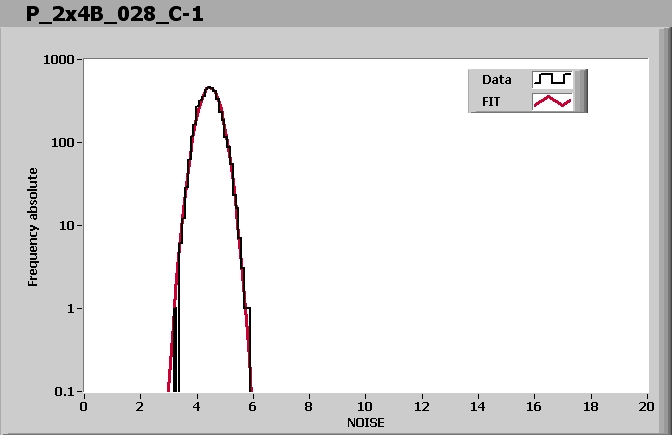

ROC7 NOISE			MEAN = 4.456912 SIGMA = 0.359696

Comment (if any): Good.

P_2x4B_028_C.html,

End testing time: 11:09 AM
