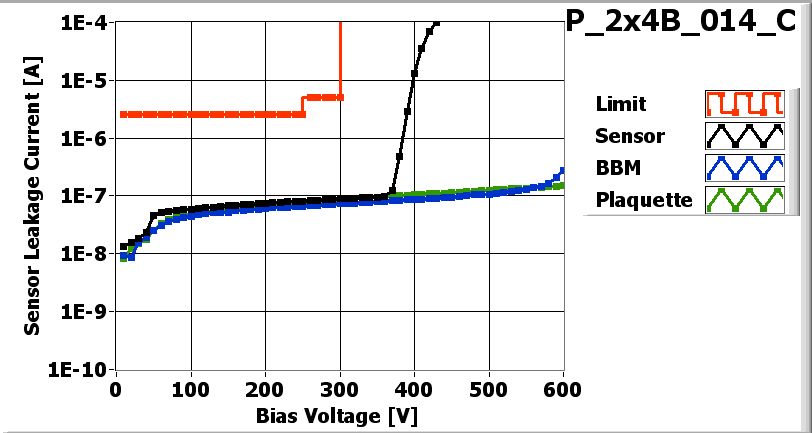

![[IMAGE] of](P_2x4B_014_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_014_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date 2/5/2007
| Part | ID |
|---|---|
| BBM | BBM_014-2x4B |
| VHDI | 2x4_439 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 22D |
| ROC1 | XE4K3KT | 22C |
| ROC2 | XE4K3KT | 21D |
| ROC3 | XE4K3KT | 14B |
| ROC4 | XE4K3KT | 17A |
| ROC5 | XE4K3KT | 16B |
| ROC6 | XE4K3KT | 15B |
| ROC7 | XE4K3KT | 15A |
Inspected by Lockwood Gale on date 2/9/2007
| LR_dev | 0.066 |
| LL_dev | 0.078 |
| FINAL COMMENT by Lockwood Gale | No assembly problem. No wirebond problem. |
PLAQUETTE made READY for testing on 2/9/2007 by Lockwood Gale
P_2x4B_014_Con 2/9/2007 1:49 PM
P_2x4B_014_Con 2/9/2007 1:49 PM
PLAQUETTE TESTED on 2007-02-09 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 134 | 144 | 138 | 128 | 134 | 138 | 148 | 136 | |
| Vana | 125 | 133 | 129 | 125 | 126 | 126 | 144 | 134 | |
| Cal_Del | 83 | 78 | 80 | 80 | 94 | 86 | 73 | 86 | |
| Vthrs_Comp | 73 | 79 | 87 | 77 | 60 | 70 | 75 | 71 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 3 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

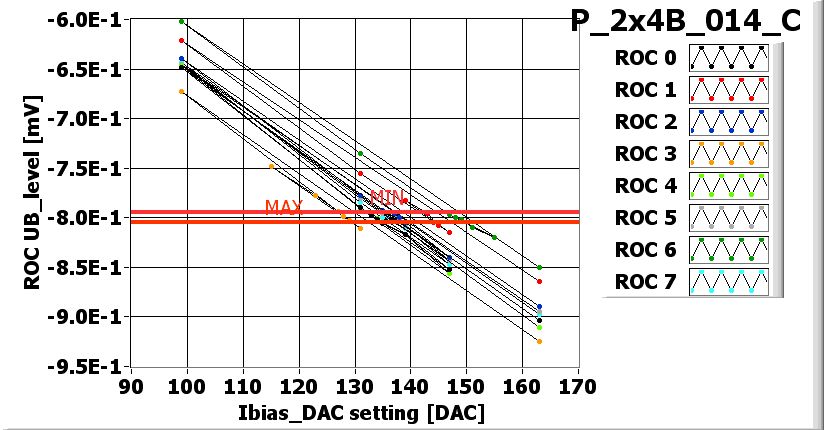

![[IMAGE] of](P_2x4B_014_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

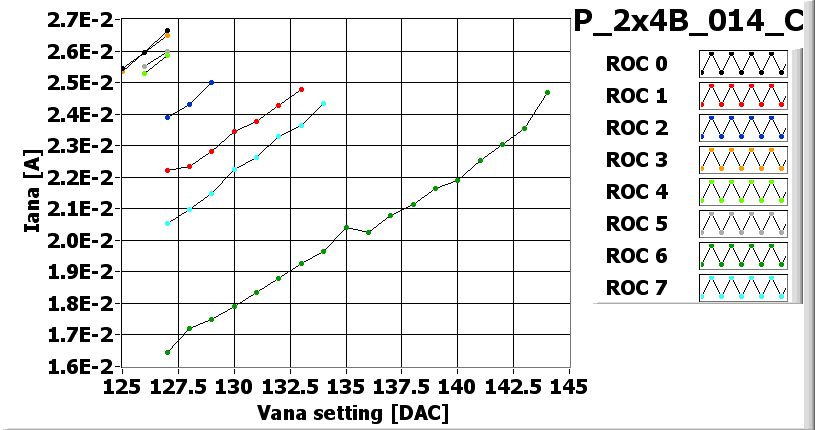

![[IMAGE] of](P_2x4B_014_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_014_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_014_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_014_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_014_Cno-bump-light.jpg) |
LIGHT_XML-File |

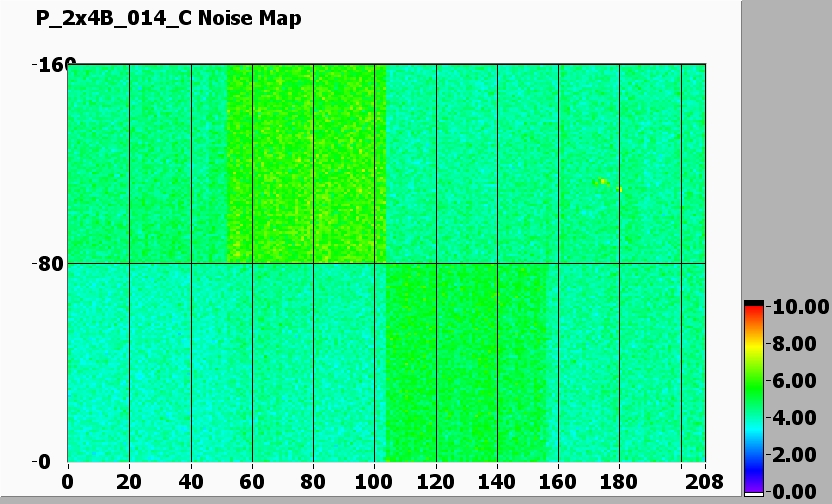

Noise MAP
![[IMAGE] of](P_2x4B_014_C-100-noise.jpg)

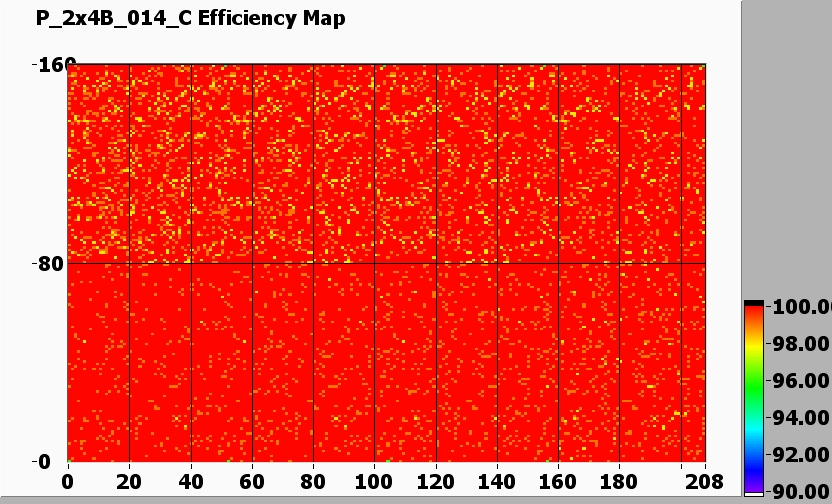

Efficiency MAP
![[IMAGE] of](P_2x4B_014_C-100-efficiency.jpg)
| ROC0 NOISE | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC0-HISTO.jpg) | MEAN = 3.954188SIGMA = 0.301099 |
| ROC1 NOISE | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC1-HISTO.jpg) | MEAN = 4.136957SIGMA = 0.332116 |
| ROC2 NOISE | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC2-HISTO.jpg) | MEAN = 5.031156SIGMA = 0.403530 |
| ROC3 NOISE | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC3-HISTO.jpg) | MEAN = 4.207500SIGMA = 0.328665 |

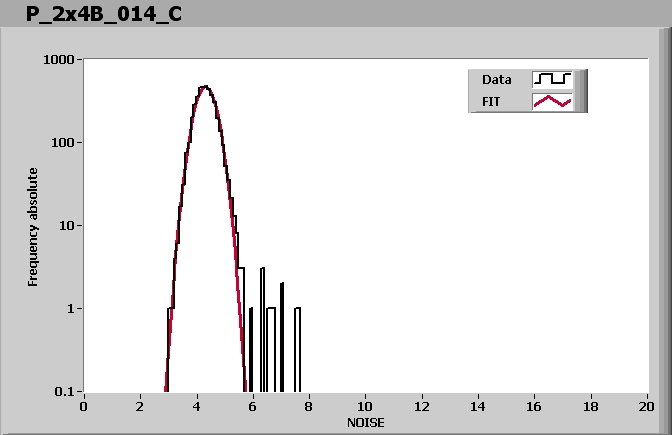

| ROC4 NOISE | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC4-HISTO.jpg) | MEAN = 4.307366SIGMA = 0.344999 |

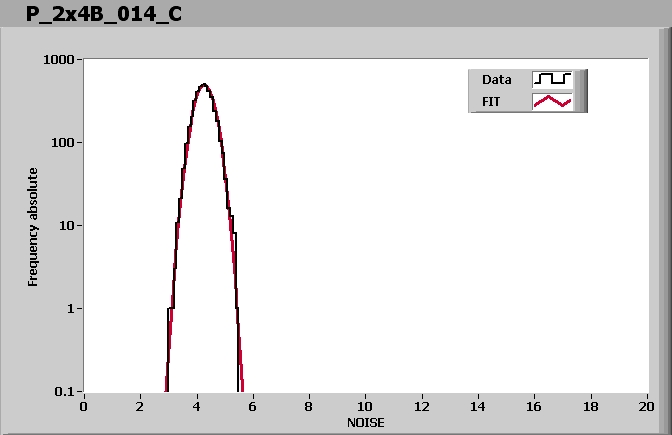

| ROC5 NOISE | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC5-MAP.jpg) | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC5-HISTO.jpg) | MEAN = 4.263773SIGMA = 0.330263 |

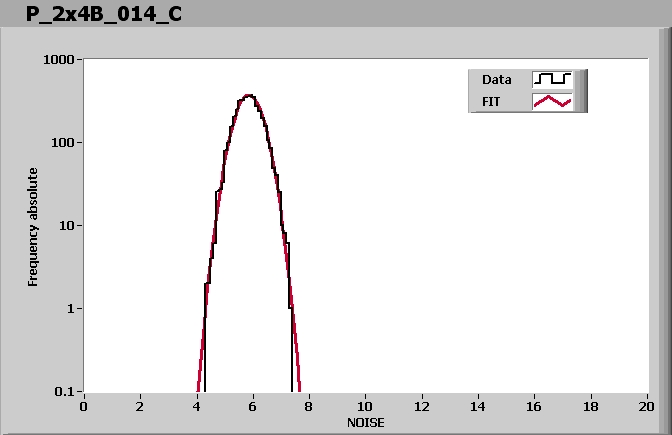

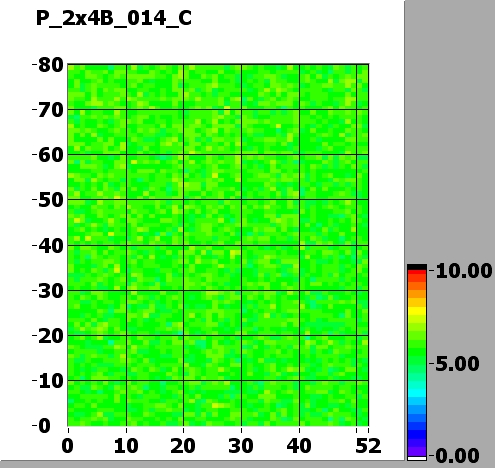

| ROC6 NOISE | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC6-MAP.jpg) | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC6-HISTO.jpg) | MEAN = 5.844682SIGMA = 0.446496 |
| ROC7 NOISE | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC7-MAP.jpg) | ![[IMAGE] of](P_2x4B_014_C-100-noise-ROC7-HISTO.jpg) | MEAN = 4.487289SIGMA = 0.355804 |
PLAQUETTE READY TO BE POTTED
