P3R_025
Unbumped pixels are red, dead are black, noisy are yellow, and undecoded are blue
Plaquette
Position
Purdue Map
FNAL Plaq. Map
FNAL Panel Map

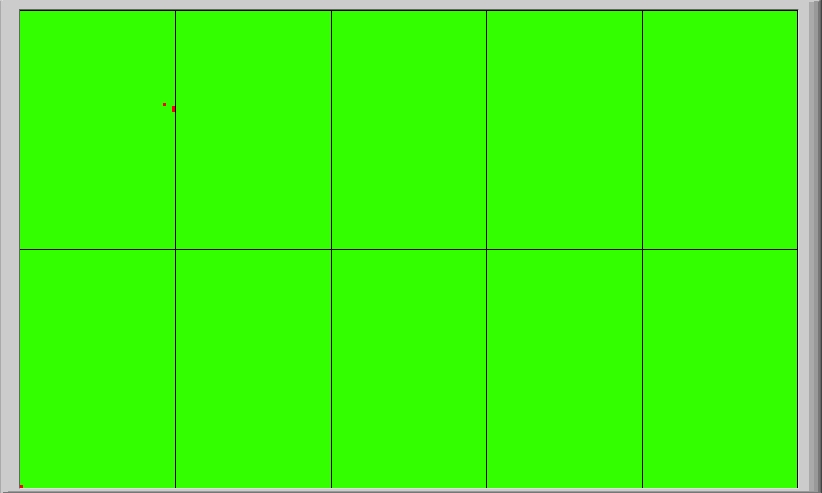

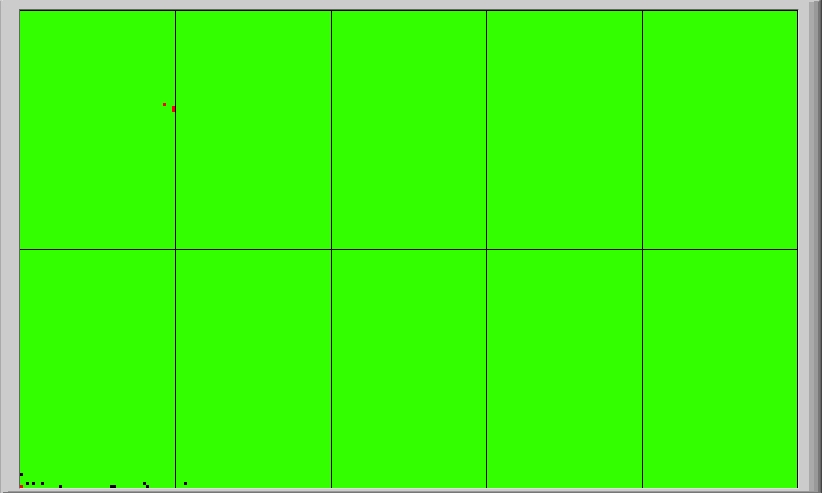

P_2x5_148_A
3

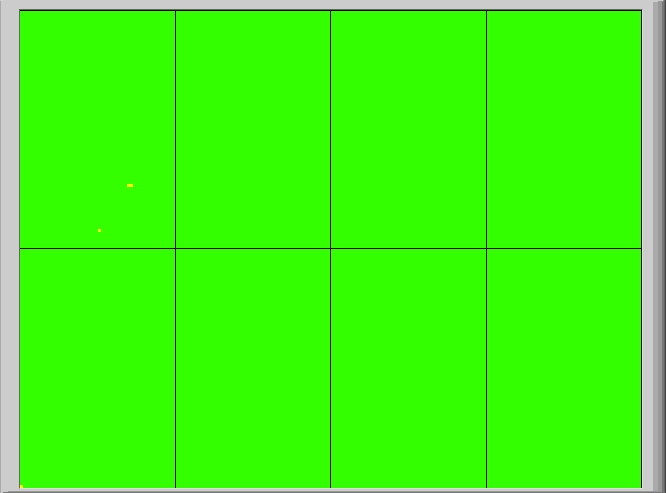

P_2x4B_014_C
2

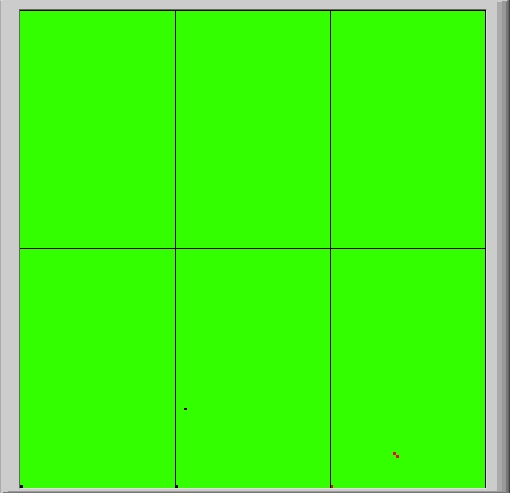

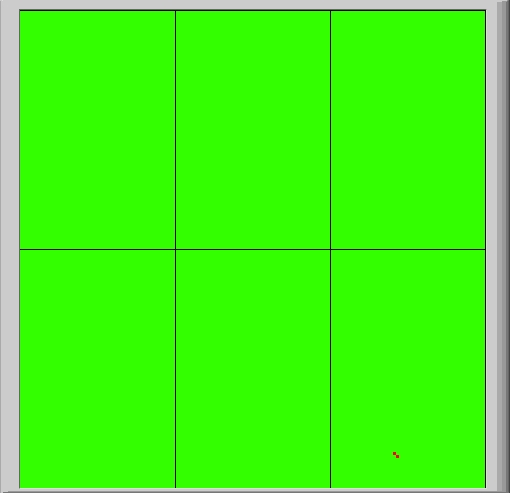

P_2x3B_014_C
1
Panel assembly comments
29mar2007/ME: 2x3 ROC 1 has 1 pixel that is wrongly decoded.
Overall panel grade:
A
