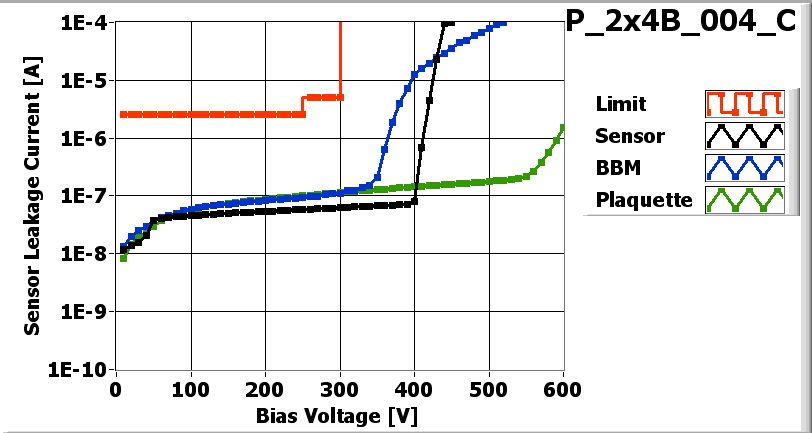

![[IMAGE] of](P_2x4B_004_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x4B_004_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 52 V |
| Operational Voltage 92 V |
Parts committed by Bolla Gino on date 2/5/2007
| Part | ID |
|---|---|
| BBM | BBM_004-2x4B |
| VHDI | 2x4_432 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XG4KFCT | 67B |
| ROC1 | XG4KFCT | 67A |
| ROC2 | XG4KFCT | 66B |
| ROC3 | XG4KFCT | 66A |
| ROC4 | XG4KFCT | 63B |
| ROC5 | XG4KFCT | 64B |
| ROC6 | XG4KFCT | 65A |
| ROC7 | XG4KFCT | 65B |
Inspected by Lockwood Gale on date 2/9/2007
| LR_dev | 0.084 |
| LL_dev | 0.080 |
| FINAL COMMENT by Lockwood Gale | No assembly problem. All wirebonds OK. ROC5 chn 1 missed bond missed 4 times - repaired on 5th attempt. |
PLAQUETTE made READY for testing on 2/9/2007 by Lockwood Gale
P_2x4B_004_Con 2/9/2007 2:33 PM
P_2x4B_004_C-1on 2/9/2007 2:45 PM
P_2x4B_004_C-2on 2/9/2007 3:23 PM
P_2x4B_004_C-2on 2/9/2007 3:23 PM
PLAQUETTE TESTED on 2007-02-09 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | |
| Ibias_DAC | 140 | 144 | 126 | 126 | 122 | 132 | 140 | 128 | |
| Vana | 140 | 163 | 122 | 126 | 130 | 127 | 129 | 142 | |
| Cal_Del | 80 | 57 | 95 | 92 | 97 | 69 | 92 | 90 | |
| Vthrs_Comp | 85 | 88 | 83 | 83 | 74 | 92 | 75 | 71 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

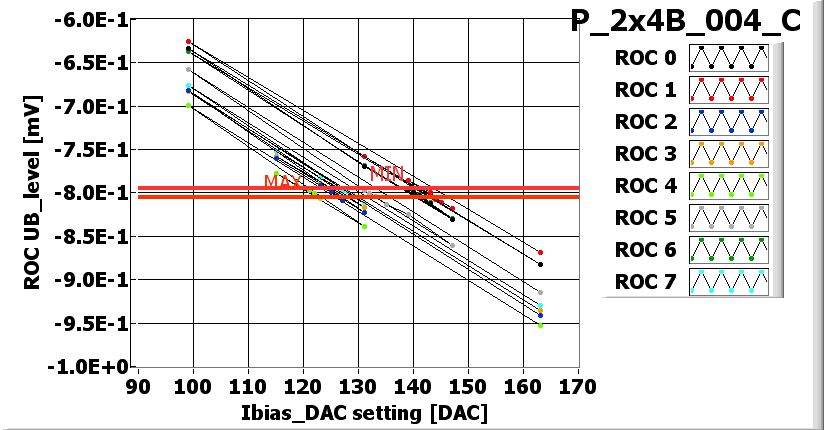

![[IMAGE] of](P_2x4B_004_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

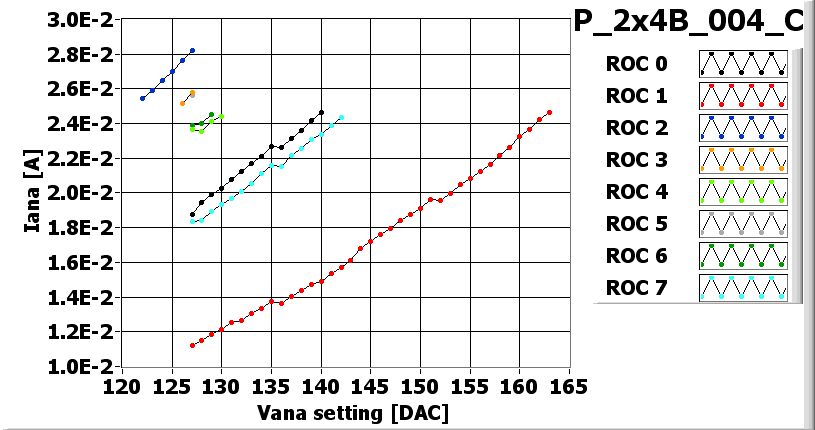

![[IMAGE] of](P_2x4B_004_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x4B_004_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x4B_004_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x4B_004_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x4B_004_Cno-bump-light.jpg) |
LIGHT_XML-File |
Noise MAP
![[IMAGE] of](P_2x4B_004_C-2-100-noise.jpg)

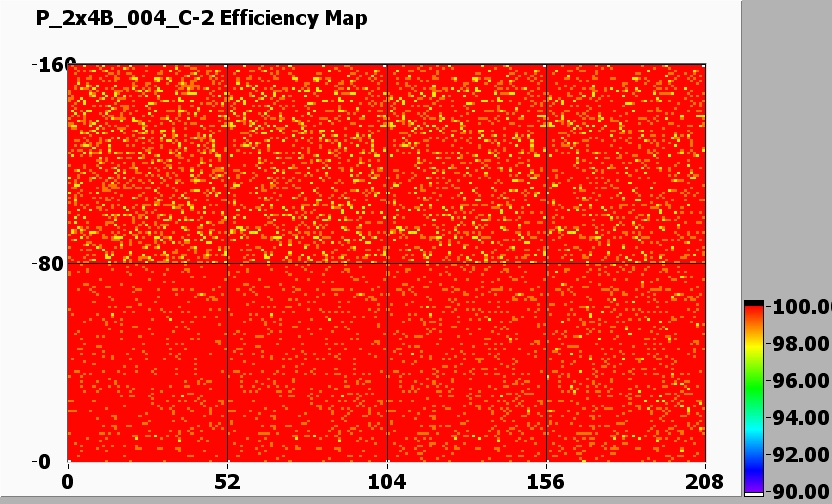

Efficiency MAP
![[IMAGE] of](P_2x4B_004_C-2-100-efficiency.jpg)

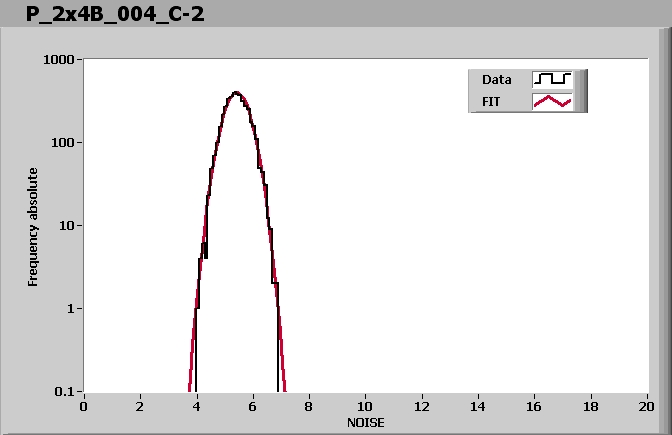

| ROC0 NOISE | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC0-HISTO.jpg) | MEAN = 5.420091SIGMA = 0.420210 |

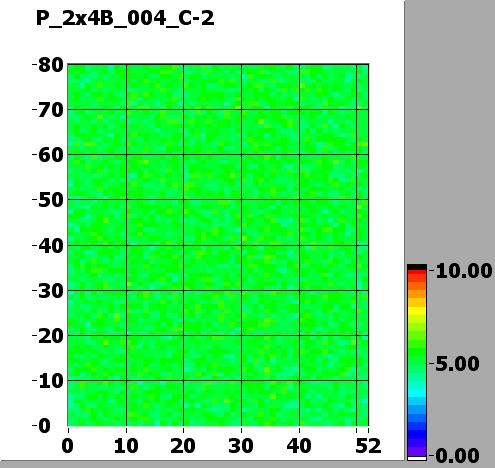

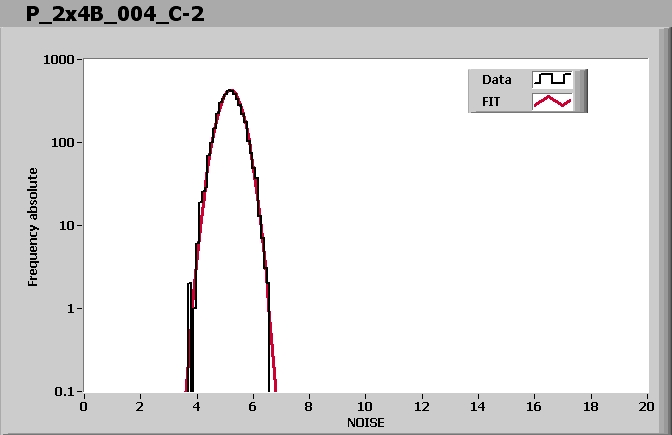

| ROC1 NOISE | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC1-HISTO.jpg) | MEAN = 5.199392SIGMA = 0.391126 |

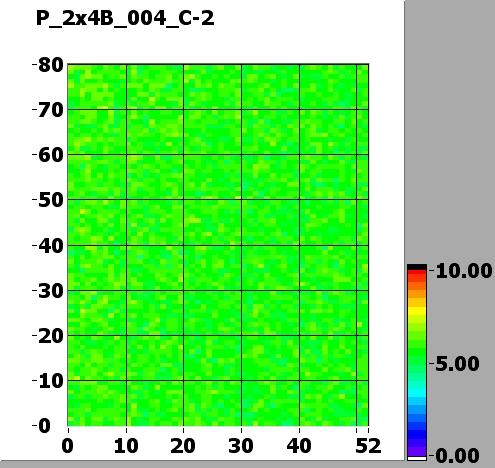

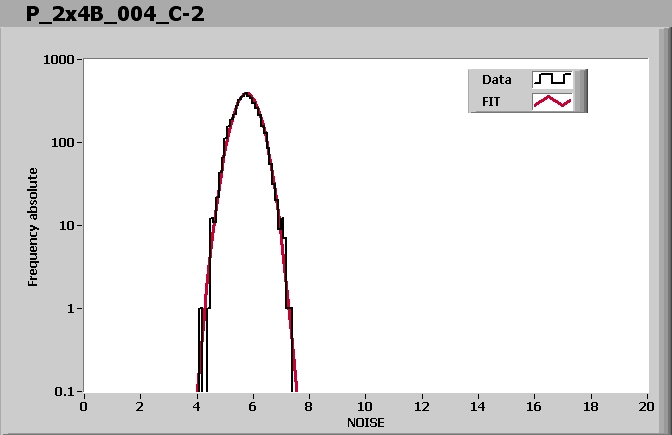

| ROC2 NOISE | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC2-HISTO.jpg) | MEAN = 5.770656SIGMA = 0.432656 |
| ROC3 NOISE | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC3-HISTO.jpg) | MEAN = 5.066464SIGMA = 0.399947 |
| ROC4 NOISE | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC4-HISTO.jpg) | MEAN = 5.117594SIGMA = 0.408934 |

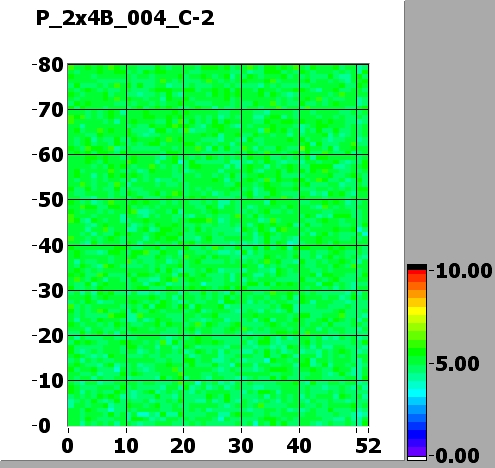

| ROC5 NOISE | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC5-MAP.jpg) | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC5-HISTO.jpg) | MEAN = 4.960906SIGMA = 0.367377 |

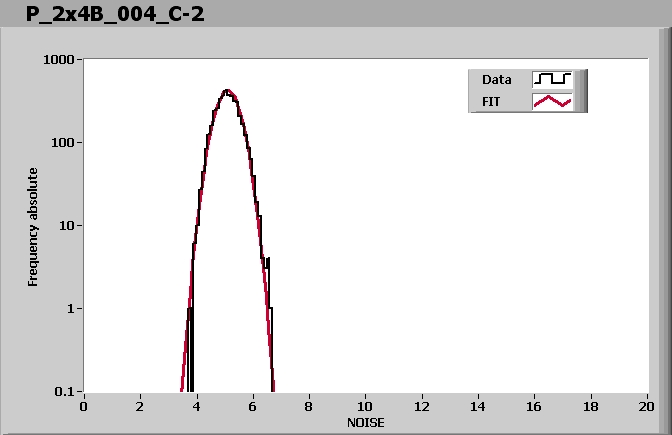

| ROC6 NOISE | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC6-MAP.jpg) | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC6-HISTO.jpg) | MEAN = 5.095613SIGMA = 0.400333 |

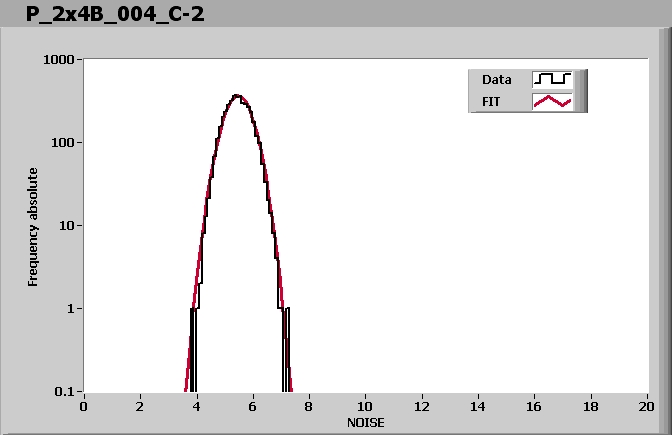

| ROC7 NOISE | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC7-MAP.jpg) | ![[IMAGE] of](P_2x4B_004_C-2-100-noise-ROC7-HISTO.jpg) | MEAN = 5.467827SIGMA = 0.463329 |
PLAQUETTE READY TO BE POTTED
