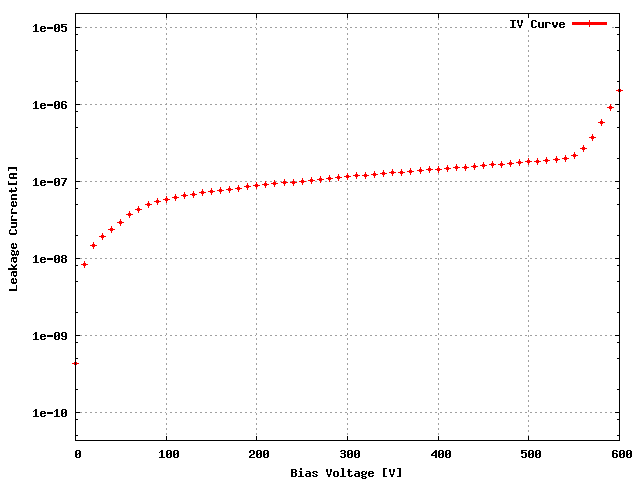

Sensor: S_2x4B_00, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	XG4KFCT	67B
ROC1	XG4KFCT	67A
ROC2	XG4KFCT	66B
ROC3	XG4KFCT	66A
ROC4	XG4KFCT	63B
ROC5	XG4KFCT	64B
ROC6	XG4KFCT	65A
ROC7	XG4KFCT	65B

Depletion Voltage is -52 and suggested operational voltage is -92

Ibias_DAC, Ibias_DAC Data	140	144	126	126	122	132	140	128
Vana, VanaData	140	163	122	126	130	127	129	142
CalDelData and plots	80	57	95	92	97	69	92	90
VthrCompData and plots	85	88	83	83	74	92	75	71
TestDdata ,TestD Plots	0	0	1	0	0	1	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

ROC0 NOISE			MEAN = 5.420091 SIGMA = 0.420210
ROC1 NOISE			MEAN = 5.199392 SIGMA = 0.391126
ROC2 NOISE			MEAN = 5.770656 SIGMA = 0.432656
ROC3 NOISE			MEAN = 5.066464 SIGMA = 0.399947
ROC4 NOISE			MEAN = 5.117594 SIGMA = 0.408934
ROC5 NOISE			MEAN = 4.960906 SIGMA = 0.367377
ROC6 NOISE			MEAN = 5.095613 SIGMA = 0.400333
ROC7 NOISE			MEAN = 5.467827 SIGMA = 0.463329

Comment (if any): Okay.
