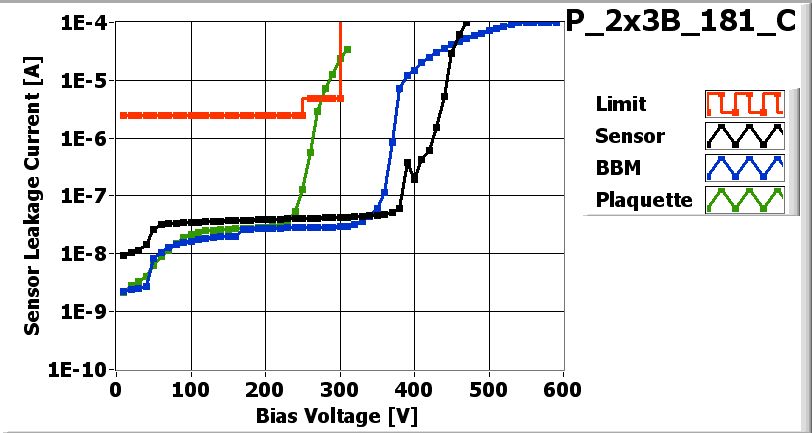

![[IMAGE] of](P_2x3B_181_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 310 V |
![[IMAGE] of](P_2x3B_181_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Isaac Childres on date 5/15/2007
| Part | ID |
|---|---|
| BBM | BBM_181-2x3B |
| VHDI | 2x3_609 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KBNG0QT | 67B |
| ROC1 | KBNG0QT | 67A |
| ROC2 | KBNG0QT | 67D |
| ROC3 | KBNG0QT | 27D |
| ROC4 | KBNG0QT | 18A |
| ROC5 | KBNG0QT | 28D |
Inspected by Lockwood Gale on date 5/16/2007
| LR_dev | 0.038 |
| LL_dev | 0.042 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. Released pusher before releasing joining force. No assembly problems. ROC 2, Ch 6,7 2 attempts, No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/16/2007 by Lockwood Gale
P_2x3B_181_Con 5/16/2007 3:17 PM
P_2x3B_181_Con 5/16/2007 3:17 PM
PLAQUETTE encapsulated on 5/17/2007 by Perera Rajiv
PLAQUETTE made READY for testing on 5/17/2007 by Perera Rajiv
P_2x3B_181_C-1on 5/18/2007 9:37 AM
P_2x3B_181_C-1on 5/18/2007 9:37 AM
P_2x3B_181_C-2on 5/18/2007 3:24 PM
P_2x3B_181_C-3on 5/18/2007 4:01 PM
P_2x3B_181_C-3on 5/18/2007 4:01 PM
PLAQUETTE TESTED on 2007-05-18 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 144 | 164 | 160 | 156 | 146 | 162 | |
| Vana | 132 | 139 | 146 | 144 | 134 | 144 | |
| Cal_Del | 86 | 83 | 78 | 81 | 73 | 98 | |
| Vthrs_Comp | 73 | 80 | 78 | 85 | 87 | 80 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 1 | |
| Dead | 0 | 0 | 0 | 1 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 1 | 1 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

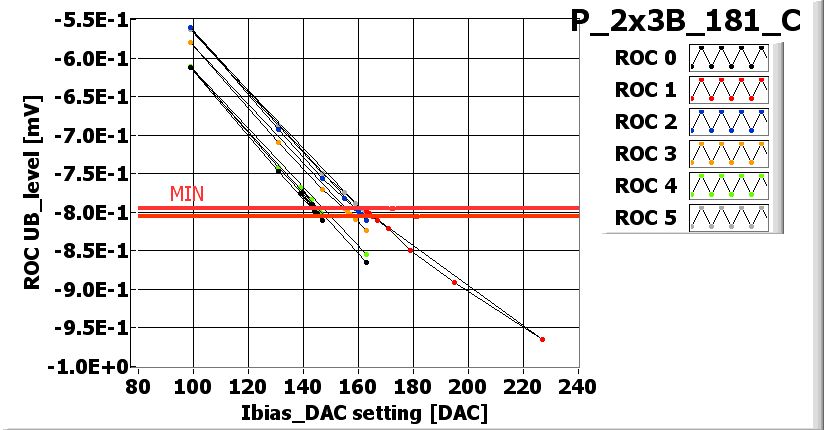

![[IMAGE] of](P_2x3B_181_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

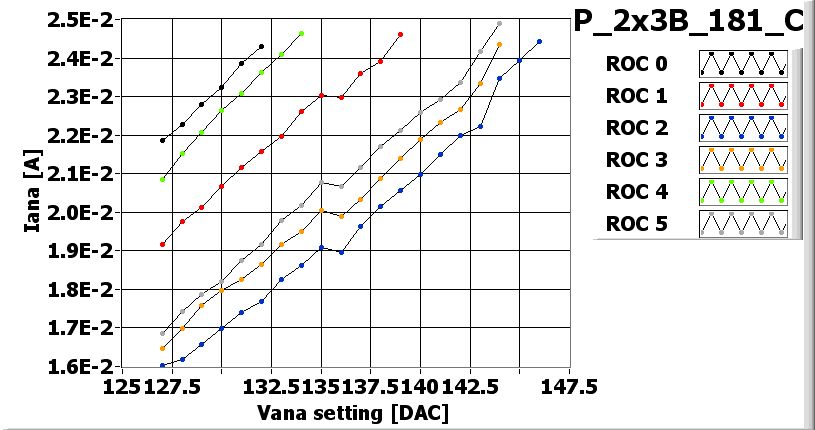

![[IMAGE] of](P_2x3B_181_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_181_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_181_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_181_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_181_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 90 | 85 | 90 | 115 | 85 |
| Vsf | 140 | 140 | 145 | 145 | 140 | 145 |
| VoffsetOp | 55 | 100 | 95 | 95 | 80 | 95 |
| VIbias_PH | 105 | 100 | 105 | 95 | 100 | 95 |
Noise MAP at VMAX
![[IMAGE] of](P_2x3B_181_C-3-290-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_181_C-3-290-efficiency.jpg)

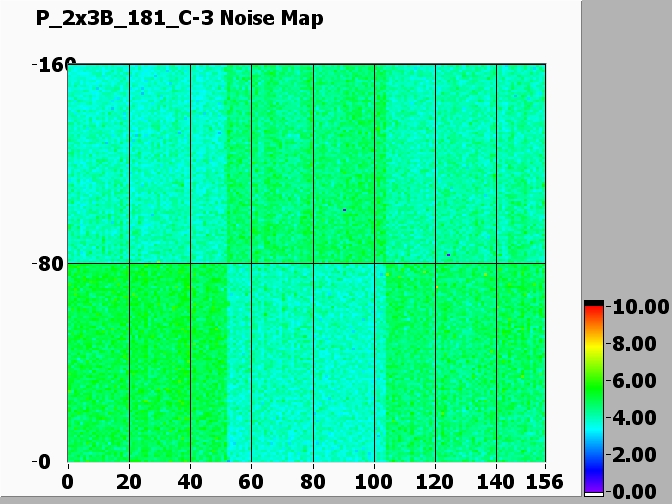

Noise MAP at -200 V
![[IMAGE] of](P_2x3B_181_C-3-200-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_181_C-3-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
