P_2x3B_181

P_2x3B_181_C-1

Production testing

Date:5/18/2007

Operator: Emily Grace

start testing time:9:37 AM

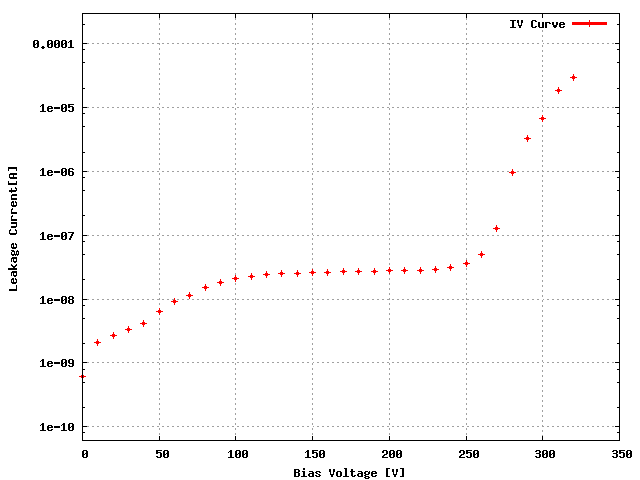

Sensor: S_2x3B_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KBNG0QT 67B

ROC1 KBNG0QT 67A

ROC2 KBNG0QT 67D

ROC3 KBNG0QT 27D

ROC4 KBNG0QT 18A

ROC5 KBNG0QT 28D

ROC	ROC wafer	Label
ROC0	KBNG0QT	67B
ROC1	KBNG0QT	67A
ROC2	KBNG0QT	67D
ROC3	KBNG0QT	27D
ROC4	KBNG0QT	18A
ROC5	KBNG0QT	28D

Depletion Voltage is -78 and suggested operational voltage is -118

Ibias_DAC, Ibias_DAC Data 146 166 162 158 148 164

Vana, VanaData 133 139 146 145 134 144

CalDelData and plots 64 63 60 78 60 74

VthrCompData and plots 55 60 60 84 71 56

TestDdata ,TestD Plots 0 0 0 1 1 2

LightData ,Light Plots 0 0 0 0 0 1

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

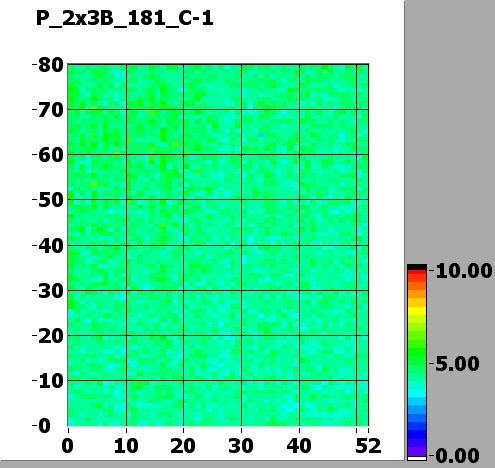

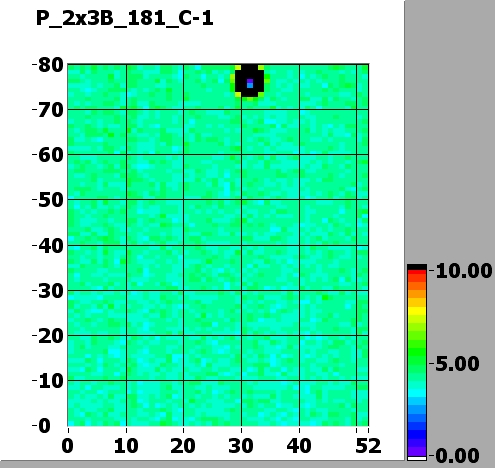

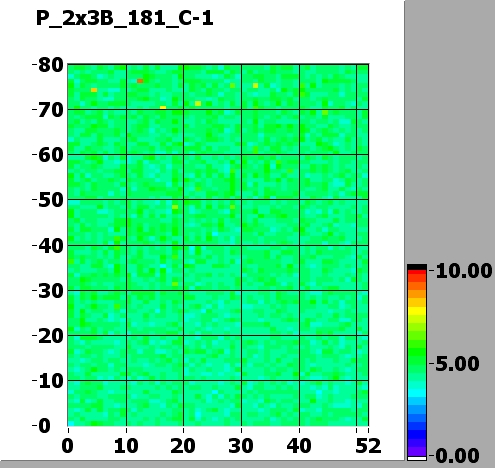

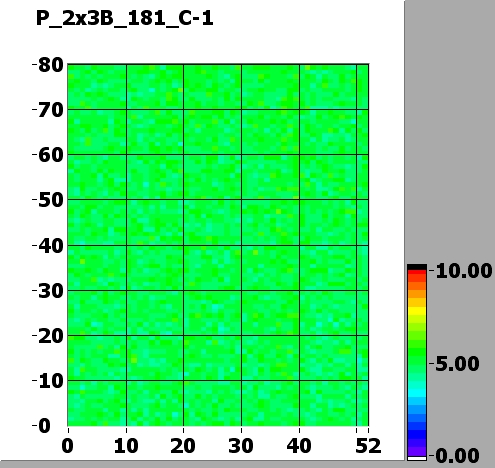

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	115	90	85	90	115	85
Vsf	140	140	140	145	140	145
VoffsetOp	55	100	95	95	80	90
VIbias_PH	105	100	100	95	100	105

ROC0 NOISE			MEAN = 4.946528 SIGMA = 0.371064

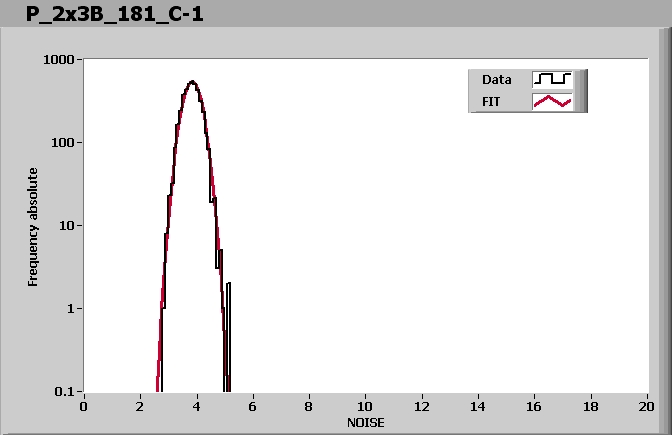

ROC1 NOISE			MEAN = 3.834108 SIGMA = 0.305136

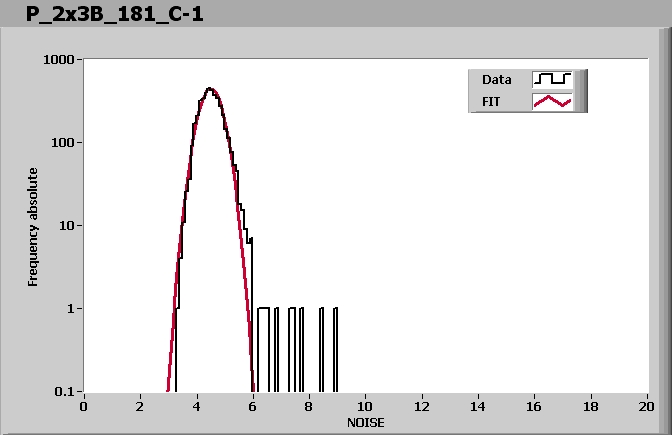

ROC2 NOISE			MEAN = 4.492494 SIGMA = 0.372946

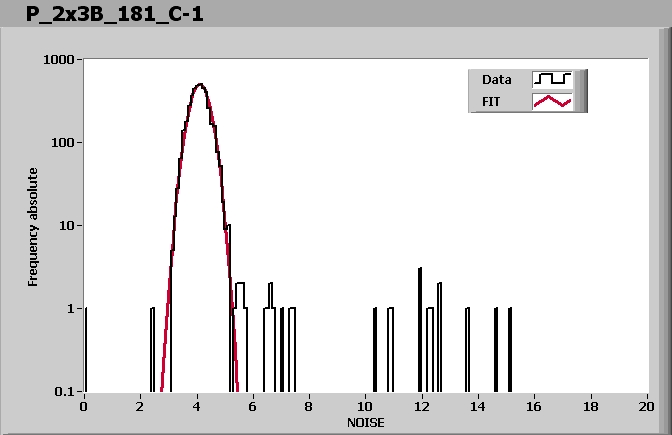

ROC3 NOISE			MEAN = 4.101451 SIGMA = 0.325490
ROC4 NOISE			MEAN = 4.547676 SIGMA = 0.376630

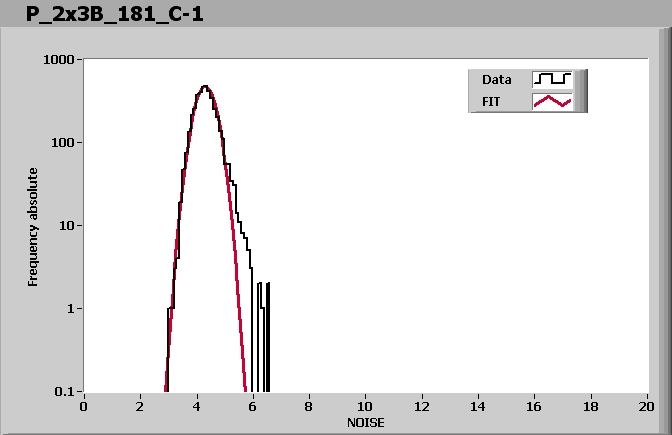

ROC5 NOISE			MEAN = 4.299307 SIGMA = 0.343446

Comment (if any):

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x3B_181_C.html,

End testing time: 10:04 AM

Ibias_DAC, Ibias_DAC Data	146	166	162	158	148	164
Vana, VanaData	133	139	146	145	134	144
CalDelData and plots	64	63	60	78	60	74
VthrCompData and plots	55	60	60	84	71	56
TestDdata ,TestD Plots	0	0	0	1	1	2
LightData ,Light Plots	0	0	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
