P_2x3B_181

P_2x3B_181_C-3

Production testing

Date:5/18/2007

Operator: Gino Bolla

start testing time:4:01 PM

Sensor: S_2x3B_18, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KBNG0QT 67B

ROC1 KBNG0QT 67A

ROC2 KBNG0QT 67D

ROC3 KBNG0QT 27D

ROC4 KBNG0QT 18A

ROC5 KBNG0QT 28D

ROC	ROC wafer	Label
ROC0	KBNG0QT	67B
ROC1	KBNG0QT	67A
ROC2	KBNG0QT	67D
ROC3	KBNG0QT	27D
ROC4	KBNG0QT	18A
ROC5	KBNG0QT	28D

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data 144 164 160 156 146 162

Vana, VanaData 132 139 146 144 134 144

CalDelData and plots 86 83 78 81 73 98

VthrCompData and plots 73 80 78 85 87 80

TestDdata ,TestD Plots 0 0 0 1 1 1

LightData ,Light Plots 0 0 0 0 0 1

Pass/Fail TestD GOOD GOOD GOOD GOOD GOOD GOOD

Pass/Fail LIGHT GOOD GOOD GOOD GOOD GOOD GOOD

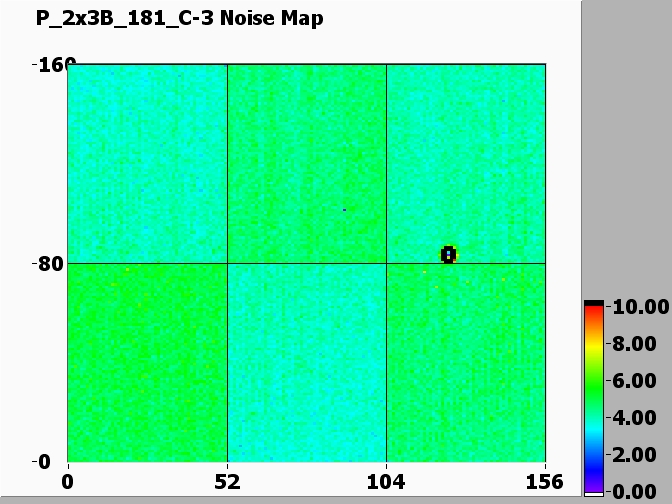

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	120	90	85	90	115	85
Vsf	140	140	145	145	140	145
VoffsetOp	55	100	95	95	80	95
VIbias_PH	105	100	105	95	100	95

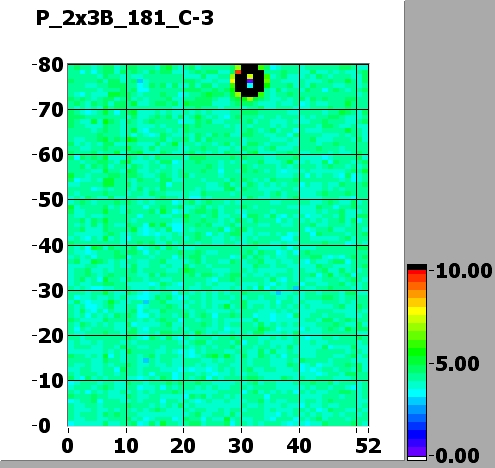

ROC0 NOISE			MEAN = 4.922539 SIGMA = 0.388973
ROC1 NOISE			MEAN = 3.845095 SIGMA = 0.296773

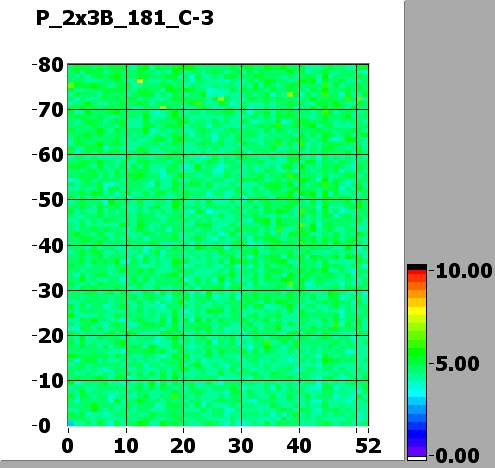

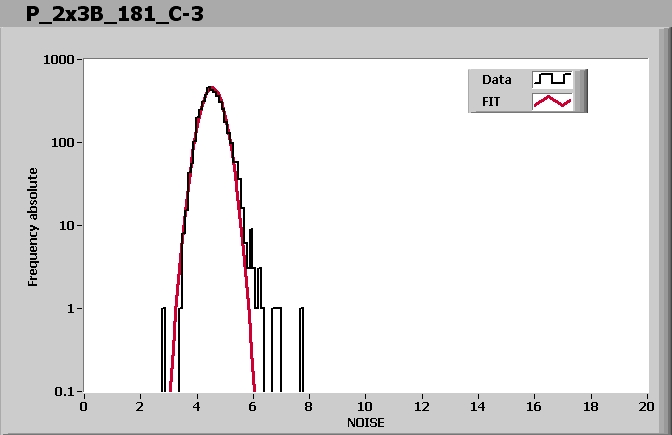

ROC2 NOISE			MEAN = 4.547207 SIGMA = 0.367053
ROC3 NOISE			MEAN = 4.062914 SIGMA = 0.331392
ROC4 NOISE			MEAN = 4.544311 SIGMA = 0.369349

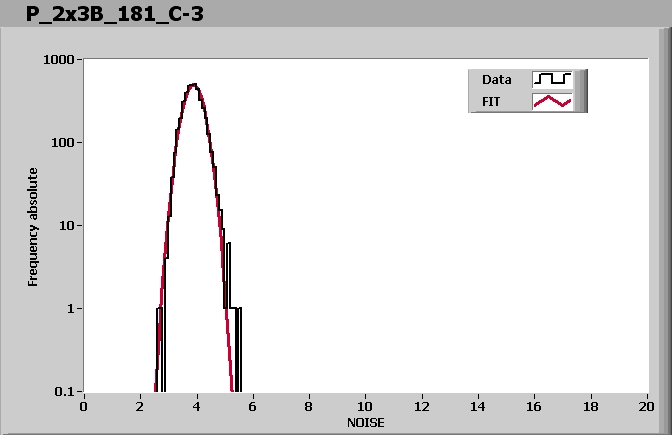

ROC5 NOISE			MEAN = 3.876440 SIGMA = 0.329637

Comment (if any):

This Device have been tested 3Times prior to this one and here are the links to the previous tests:

P_2x3B_181_C-1.html,

P_2x3B_181_C-2.html,

P_2x3B_181_C.html,

End testing time: 4:34 PM

Ibias_DAC, Ibias_DAC Data	144	164	160	156	146	162
Vana, VanaData	132	139	146	144	134	144
CalDelData and plots	86	83	78	81	73	98
VthrCompData and plots	73	80	78	85	87	80
TestDdata ,TestD Plots	0	0	0	1	1	1
LightData ,Light Plots	0	0	0	0	0	1
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
