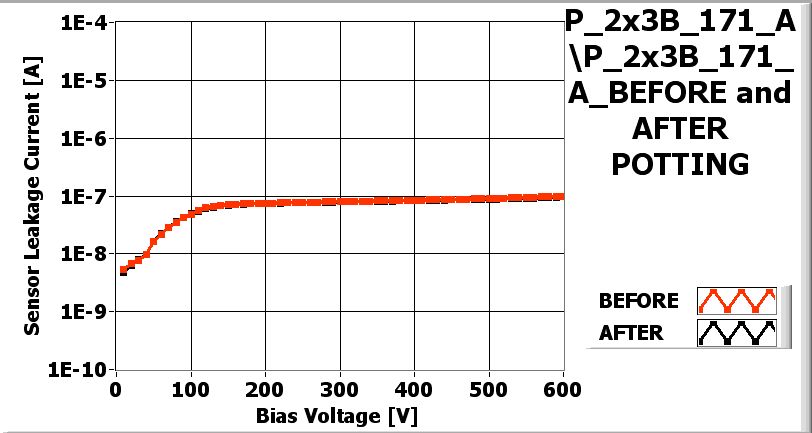

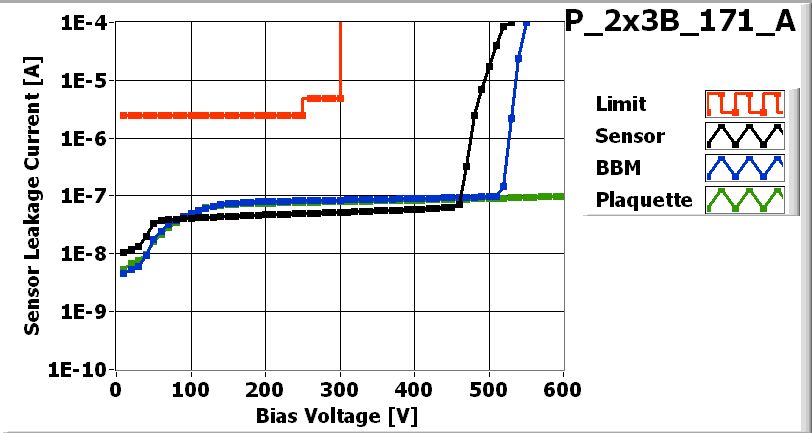

![[IMAGE] of](P_2x3B_171_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_171_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 1/31/2007
| Part | ID |
|---|---|
| BBM | BBM_171-2x3B |
| VHDI | 2x3_439 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 27D |
| ROC1 | W30_X74K5RT | 27C |
| ROC2 | W30_X74K5RT | 27A |
| ROC3 | W29_X64K5ST | 73C |
| ROC4 | W29_X64K5ST | 73D |
| ROC5 | W29_X64K5ST | 74A |
Inspected by Arndt Kirk on date 2/7/2007
| LR_dev | 0.065 |
| LL_dev | 0.068 |
| FINAL COMMENT by Arndt Kirk | No assembly problems No wirebond problem. |
PLAQUETTE made READY for testing on 2/7/2007 by Arndt Kirk
P_2x3B_171_Aon 2/7/2007 2:47 PM
P_2x3B_171_A-1on 2/7/2007 2:57 PM
P_2x3B_171_A-2on 2/7/2007 3:07 PM
P_2x3B_171_A-3on 2/7/2007 3:14 PM
P_2x3B_171_A-4on 2/7/2007 3:59 PM
P_2x3B_171_A-4on 2/7/2007 3:59 PM
PLAQUETTE TESTED on 2007-02-07 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 142 | 130 | 144 | 132 | 146 | 144 | |
| Vana | 127 | 133 | 153 | 125 | 141 | 143 | |
| Cal_Del | 100 | 83 | 69 | 75 | 85 | 73 | |
| Vthrs_Comp | 70 | 70 | 83 | 78 | 88 | 80 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

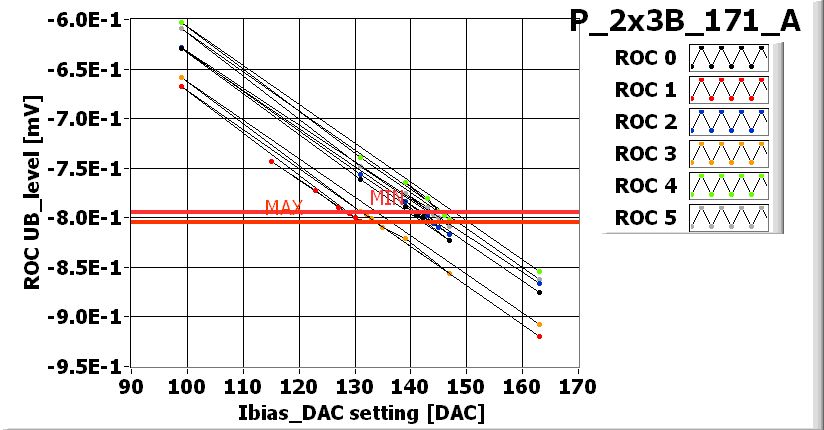

![[IMAGE] of](P_2x3B_171_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

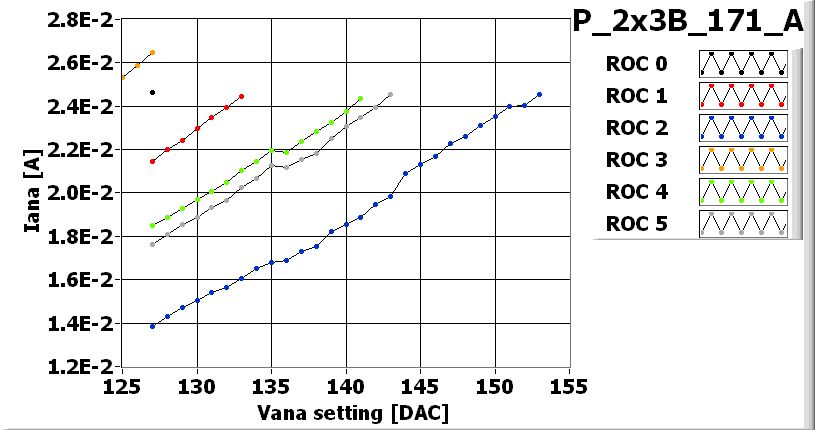

![[IMAGE] of](P_2x3B_171_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_171_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_171_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_171_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_171_Ano-bump-light.jpg) |
LIGHT_XML-File |

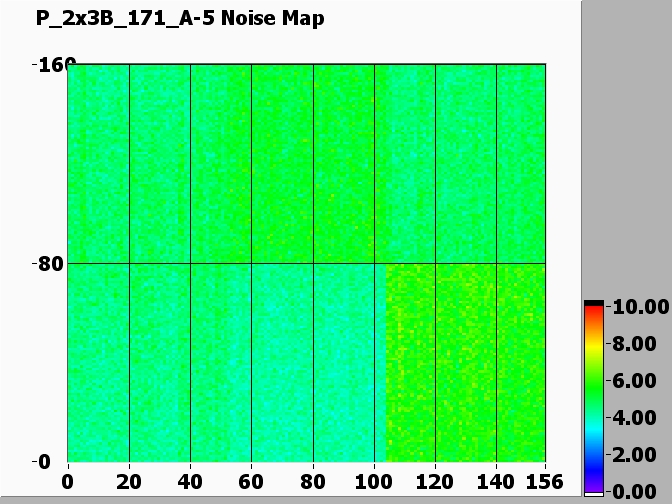

Noise MAP
![[IMAGE] of](P_2x3B_171_A-5-100-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x3B_171_A-5-100-efficiency.jpg)

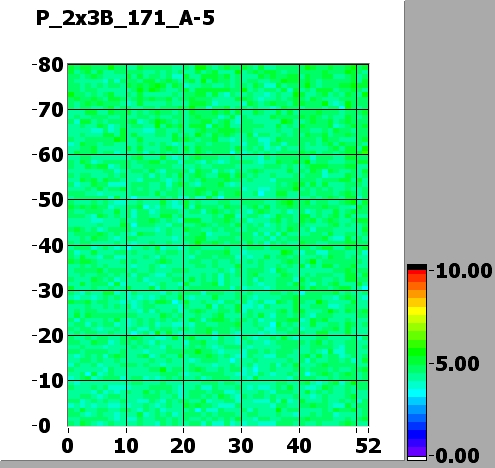

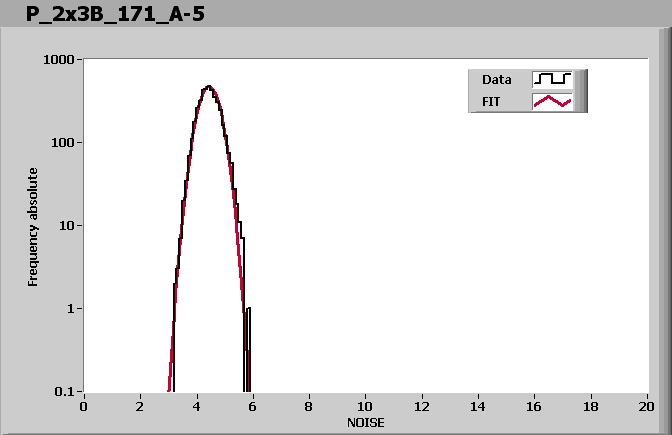

| ROC0 NOISE | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC0-HISTO.jpg) | MEAN = 4.432521SIGMA = 0.348384 |
| ROC1 NOISE | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC1-HISTO.jpg) | MEAN = 4.197101SIGMA = 0.330500 |

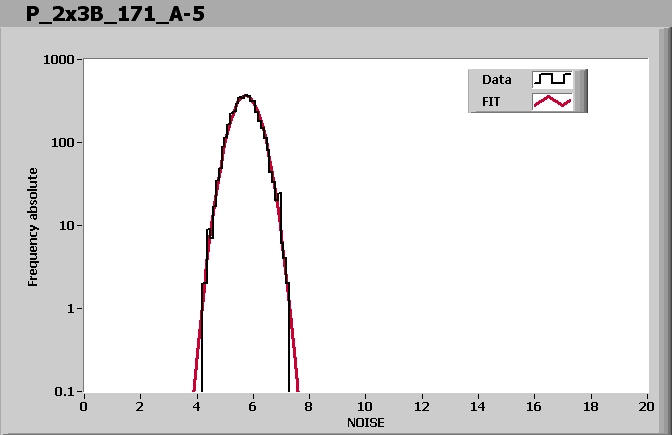

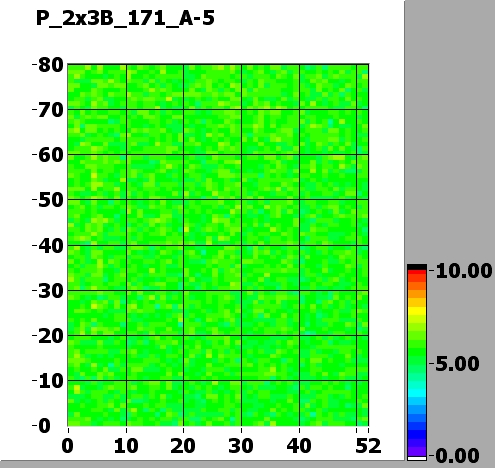

| ROC2 NOISE | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC2-HISTO.jpg) | MEAN = 5.735610SIGMA = 0.454263 |

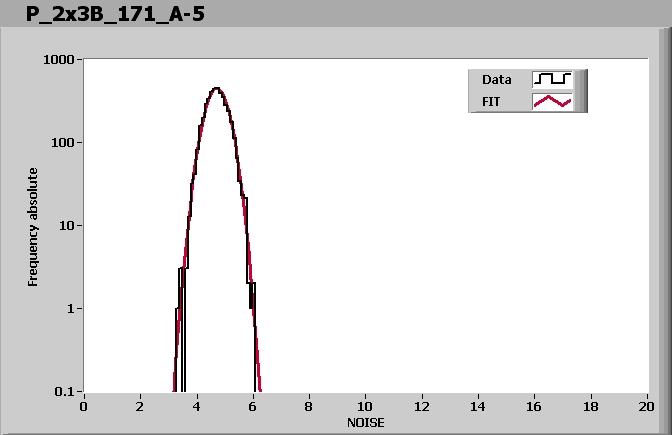

| ROC3 NOISE | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC3-HISTO.jpg) | MEAN = 4.708270SIGMA = 0.373598 |

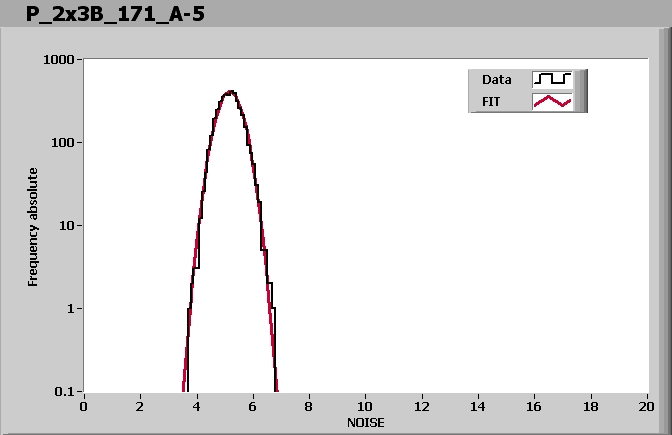

| ROC4 NOISE | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC4-HISTO.jpg) | MEAN = 5.170715SIGMA = 0.408441 |

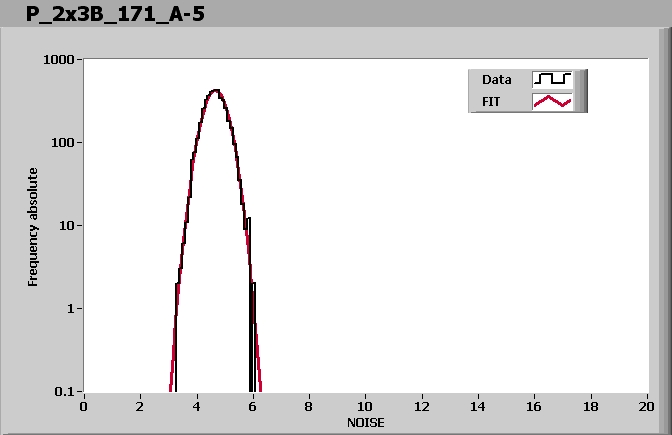

| ROC5 NOISE | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC5-MAP.jpg) | ![[IMAGE] of](P_2x3B_171_A-5-100-noise-ROC5-HISTO.jpg) | MEAN = 4.653608SIGMA = 0.393227 |
