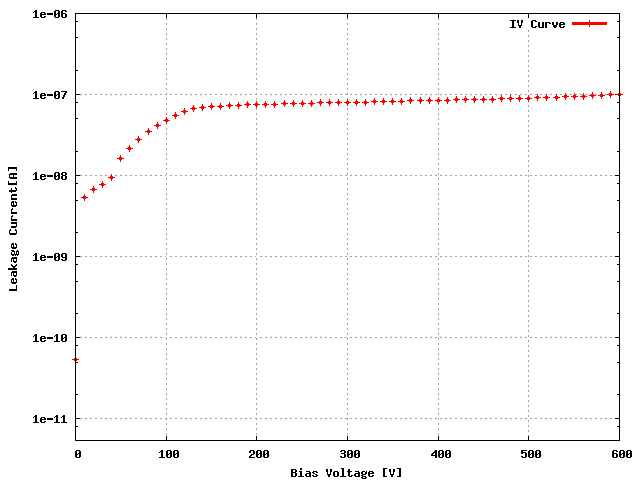

Sensor: S_2x3B_17, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W30_X74K5RT	27D
ROC1	W30_X74K5RT	27C
ROC2	W30_X74K5RT	27A
ROC3	W29_X64K5ST	73C
ROC4	W29_X64K5ST	73D
ROC5	W29_X64K5ST	74A

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	142	130	144	132	146	144
Vana, VanaData	127	133	153	125	141	143
CalDelData and plots	100	83	69	75	85	73
VthrCompData and plots	70	70	83	78	88	80
TestDdata ,TestD Plots	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

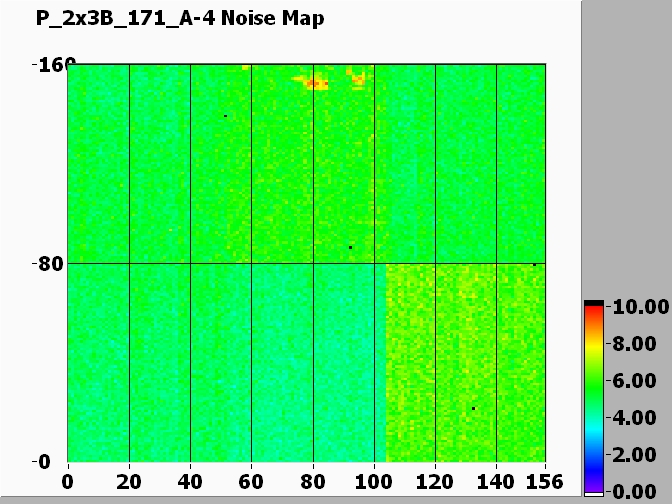

Noise MAP

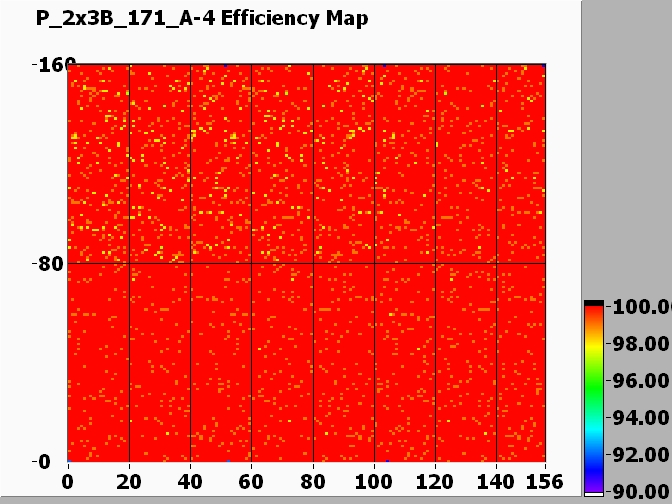

Efficiency MAP

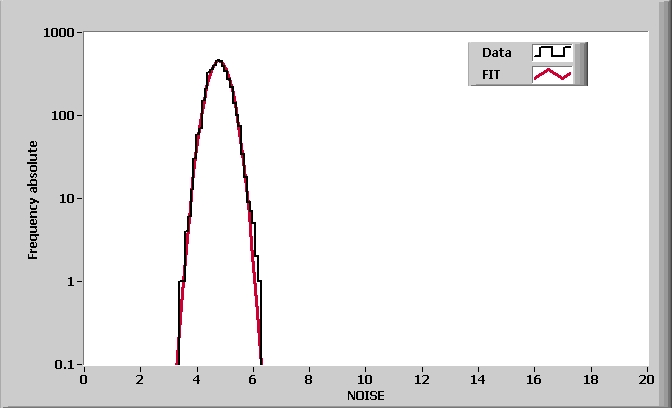

ROC0 NOISE			MEAN = 4.790425 SIGMA = 0.363435

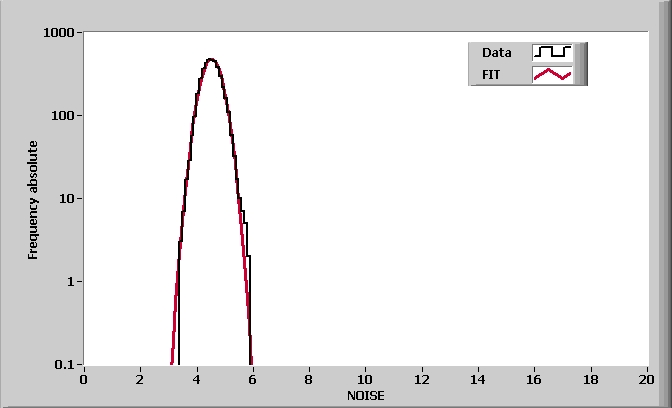

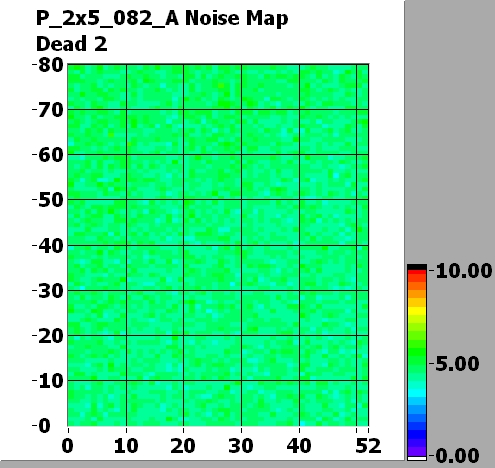

ROC1 NOISE			MEAN = 4.520802 SIGMA = 0.346254

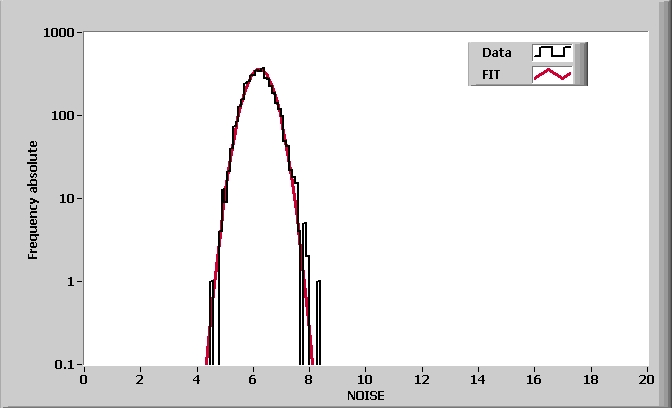

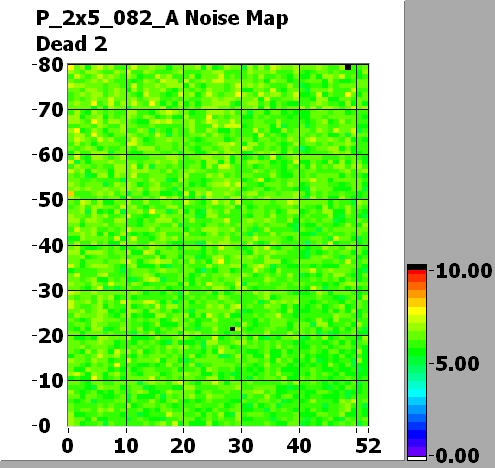

ROC2 NOISE			MEAN = 6.218929 SIGMA = 0.463283

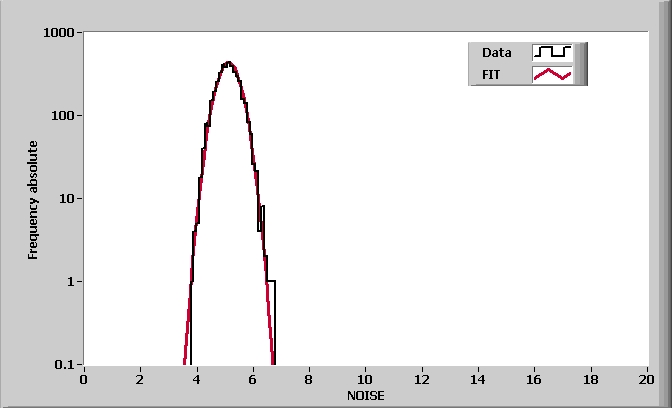

ROC3 NOISE			MEAN = 5.125707 SIGMA = 0.384868

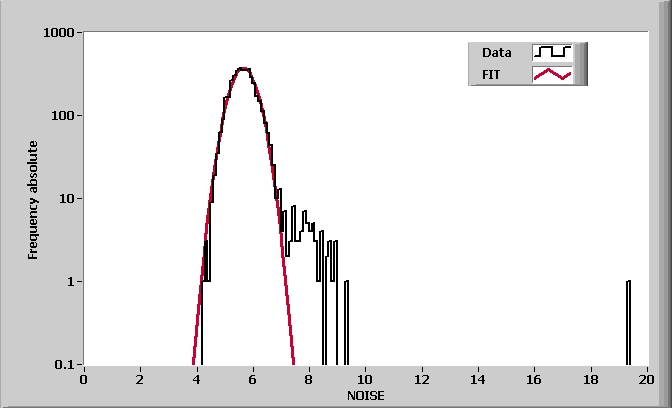

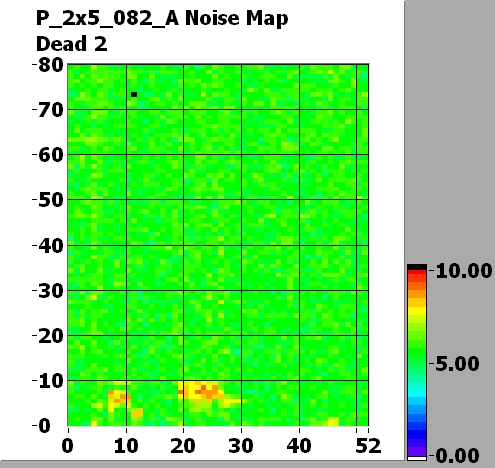

ROC4 NOISE			MEAN = 5.650631 SIGMA = 0.436995

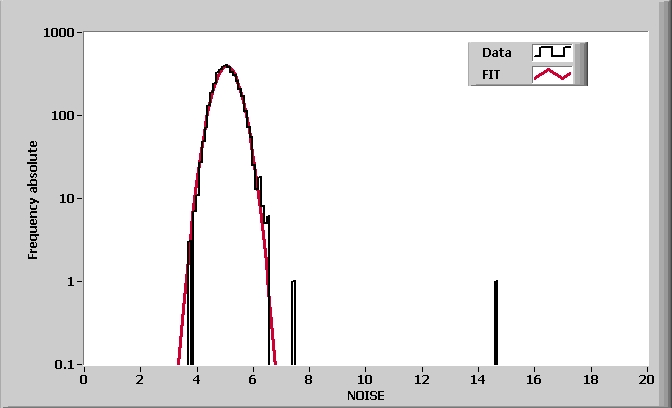

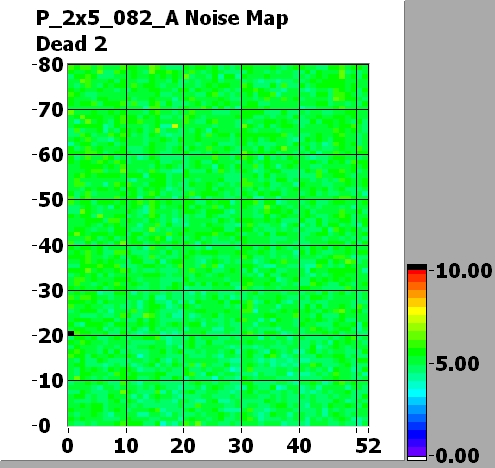

ROC5 NOISE			MEAN = 5.062349 SIGMA = 0.420814

Comment (if any): GOOD

P_2x3B_171_A-1.html,

P_2x3B_171_A-2.html,

P_2x3B_171_A-3.html,

P_2x3B_171_A.html,

End testing time: 4:16 PM
