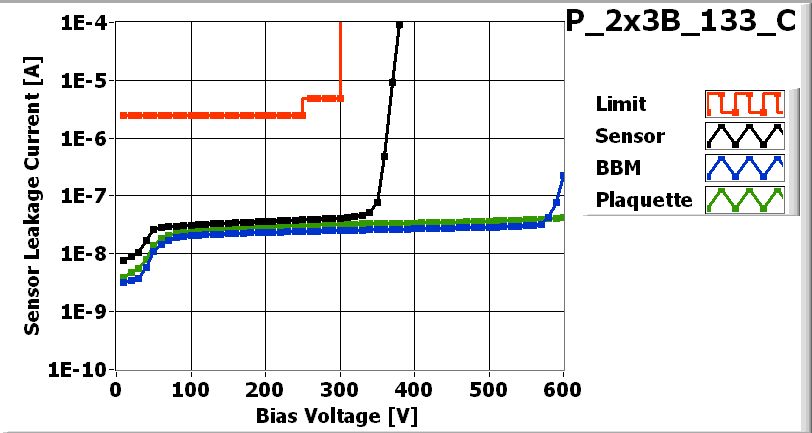

![[IMAGE] of](P_2x3B_133_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x3B_133_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 1/25/2007
| Part | ID |
|---|---|
| BBM | BBM_133-2x3B |
| VHDI | 2x3_416 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4KFET | 31D |
| ROC1 | XE4KFET | 23D |
| ROC2 | XE4KFET | 24C |
| ROC3 | XE4KFET | 26A |
| ROC4 | XE4KFET | 26B |
| ROC5 | XE4KFET | 28B |
Inspected by Arndt Kirk on date 1/30/2007
| LR_dev | 0.084 |
| LL_dev | 0.108 |
| FINAL COMMENT by Arndt Kirk | No_assembly_problems No wirebond problem. |
PLAQUETTE made READY for testing on 1/30/2007 by Arndt Kirk
P_2x3B_133_Con 1/30/2007 12:23 PM
P_2x3B_133_Con 1/30/2007 12:23 PM
PLAQUETTE TESTED on 2007-01-30 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | |
| Ibias_DAC | 128 | 128 | 140 | 132 | 144 | 138 | |
| Vana | 125 | 115 | 144 | 143 | 139 | 134 | |
| Cal_Del | 87 | 82 | 76 | 73 | 85 | 87 | |
| Vthrs_Comp | 77 | 82 | 83 | 81 | 78 | 84 | |
| Unbumped | 0 | 1 | 0 | 0 | 0 | 1 | |
| Dead | 1 | 0 | 0 | 1 | 2 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 1 | 1 | 0 | 1 | 2 | 1 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

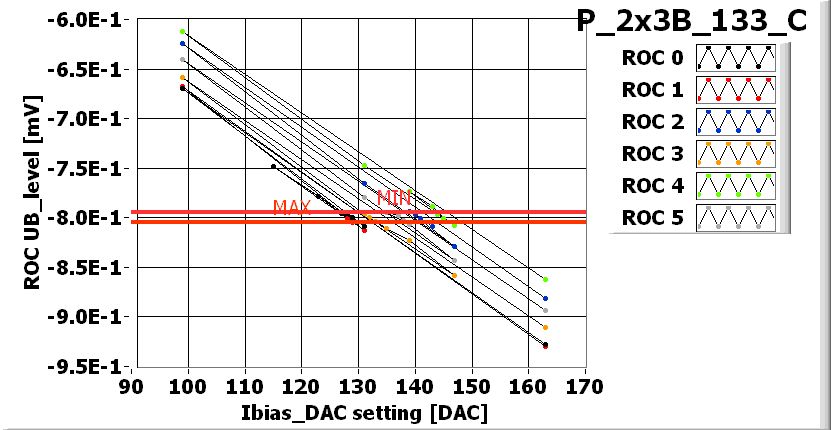

![[IMAGE] of](P_2x3B_133_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

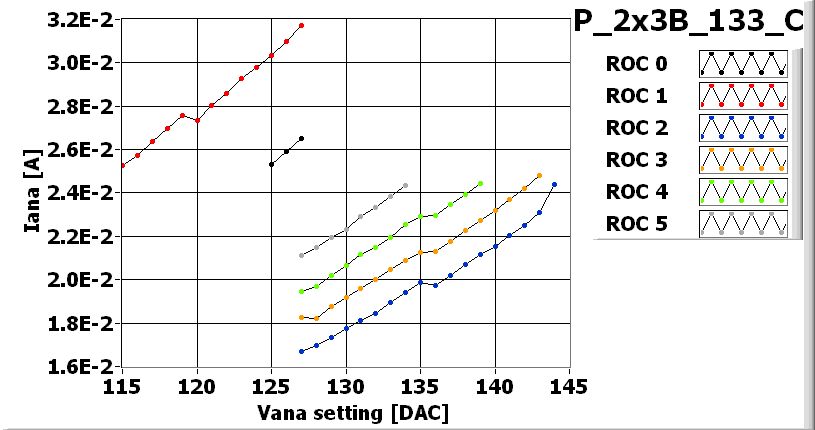

![[IMAGE] of](P_2x3B_133_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x3B_133_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x3B_133_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x3B_133_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x3B_133_Cno-bump-light.jpg) |
LIGHT_XML-File |

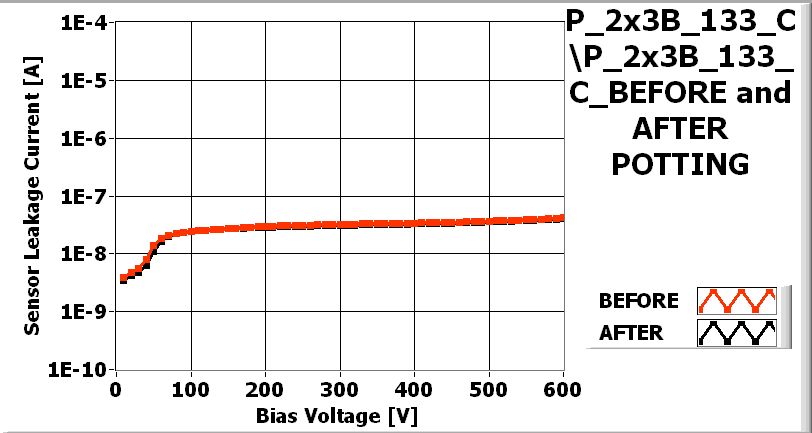

PLAQUETTE READY TO BE POTTED
