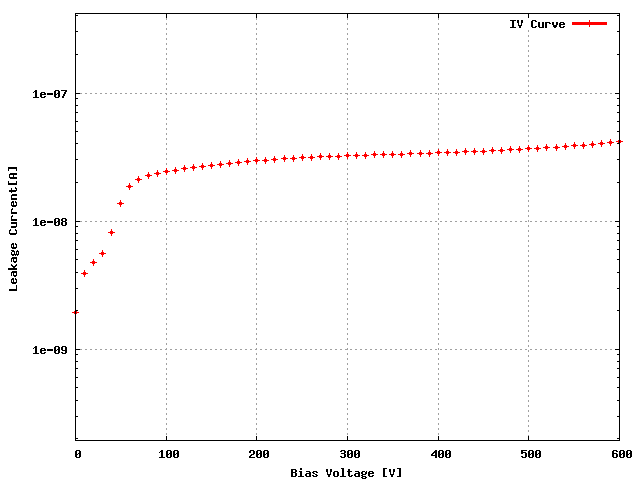

Sensor: S_2x3B_13, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4KFET | 31D |
| ROC1 | XE4KFET | 23D |
| ROC2 | XE4KFET | 24C |
| ROC3 | XE4KFET | 26A |
| ROC4 | XE4KFET | 26B |
| ROC5 | XE4KFET | 28B |
| Ibias_DAC, Ibias_DAC Data | 128 | 128 | 140 | 132 | 144 | 138 |
| Vana, VanaData | 125 | 115 | 144 | 143 | 139 | 134 |
| CalDelData and plots | 87 | 82 | 76 | 73 | 85 | 87 |
| VthrCompData and plots | 77 | 82 | 83 | 81 | 78 | 84 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 1 | 0 | 0 | 1 | 2 | 0 |
| LightData ,Light Plots | 0 | 1 | 0 | 0 | 0 | 1 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD with NOISE
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 12:42 PM
