![[IMAGE] of](P_1x5L_114_A_IV.jpg)

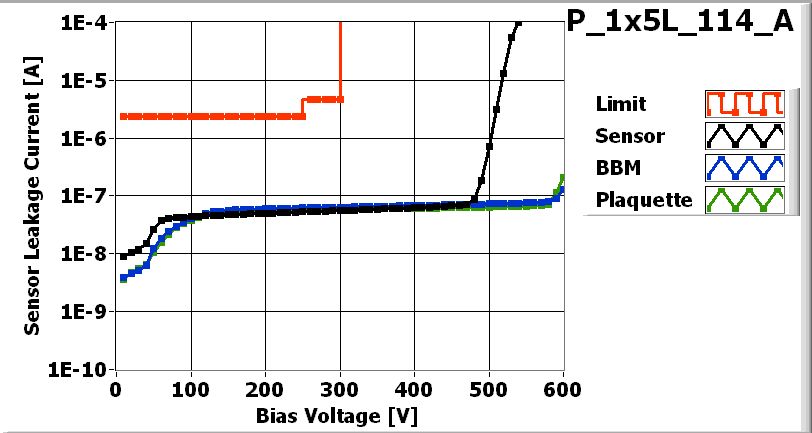

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x5L_114_A_LASER.jpg)

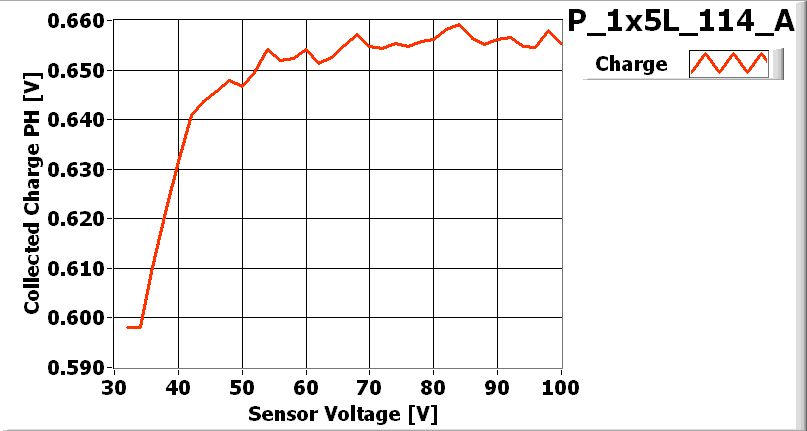

| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 1/31/2007
| Part | ID |
|---|---|
| BBM | BBM_114-1x5 |
| VHDI | 1x5L_234 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 37D |
| ROC1 | W30_X74K5RT | 37C |
| ROC2 | W30_X74K5RT | 29D |
| ROC3 | W30_X74K5RT | 36D |
| ROC4 | W30_X74K5RT | 36C |
Inspected by Lockwood Gale on date 2/5/2007
| LR_dev | 0.044 |
| LL_dev | 0.098 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for testing on 2/5/2007 by Lockwood Gale
P_1x5L_114_Aon 2/6/2007 9:38 AM
P_1x5L_114_Aon 2/6/2007 9:38 AM
PLAQUETTE TESTED on 2007-02-06 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | |
| Ibias_DAC | 132 | 150 | 130 | 140 | 130 | |
| Vana | 115 | 127 | 129 | 135 | 131 | |
| Cal_Del | 83 | 82 | 87 | 83 | 75 | |
| Vthrs_Comp | 76 | 70 | 75 | 71 | 74 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x5L_114_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |
![[IMAGE] of](P_1x5L_114_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x5L_114_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_1x5L_114_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x5L_114_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_1x5L_114_Ano-bump-light.jpg) |
LIGHT_XML-File |
PLAQUETTE READY TO BE POTTED
Noise MAP
![[IMAGE] of](P_1x5L_114_A-1-100-noise.jpg)

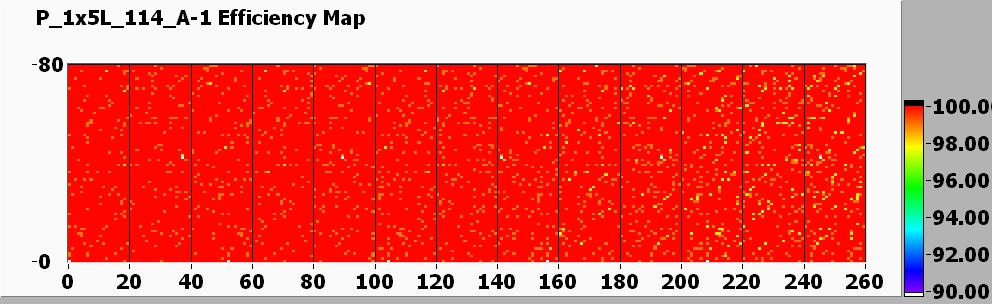

Efficiency MAP
![[IMAGE] of](P_1x5L_114_A-1-100-efficiency.jpg)

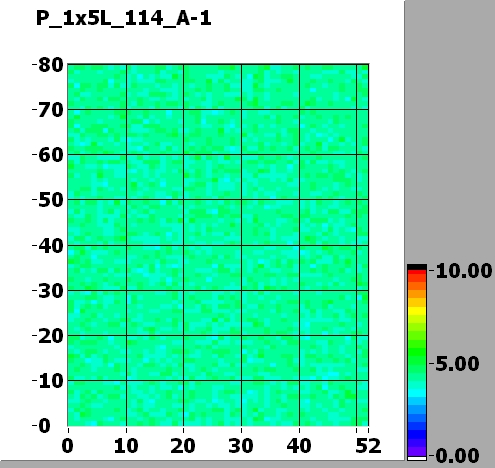

| ROC0 NOISE | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC0-HISTO.jpg) | MEAN = 4.155317SIGMA = 0.311305 |
| ROC1 NOISE | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC1-HISTO.jpg) | MEAN = 5.283112SIGMA = 0.424038 |
| ROC2 NOISE | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC2-HISTO.jpg) | MEAN = 4.122642SIGMA = 0.310603 |
| ROC3 NOISE | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC3-HISTO.jpg) | MEAN = 4.924370SIGMA = 0.386127 |
| ROC4 NOISE | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_1x5L_114_A-1-100-noise-ROC4-HISTO.jpg) | MEAN = 4.362030SIGMA = 0.341053 |
PLAQUETTE encapsulated on 2/7/2007 by Arndt Kirk
P_1x5L_114_A-1on 2/9/2007 8:06 AM
P_1x5L_114_A-1on 2/9/2007 8:06 AM AFTER POTTING
![[IMAGE] of](P_1x5L_114_A_POTTED_IV.jpg)
BAD CHANNELS COMPARISON Before/after ENCAPSULATION
| ROC | DEAD | NOISY | UNDECODED | TESTD | LIGHT |
| ROC0 | 0/0 | 0/0 | 0/0 | 0/1 | 0/0 |
| ROC1 | 0/0 | 0/0 | 0/0 | 0/2 | 0/0 |
| ROC2 | 0/0 | 0/0 | 0/0 | 0/0 | 0/0 |
| ROC3 | 0/0 | 0/0 | 0/0 | 0/0 | 0/0 |
| ROC4 | 0/0 | 0/0 | 0/0 | 0/0 | 0/0 |
DEVICE READY FOR SHIPPING
Shipped on date 2007-02-09
Plaquette assigned to panel P4R_023
