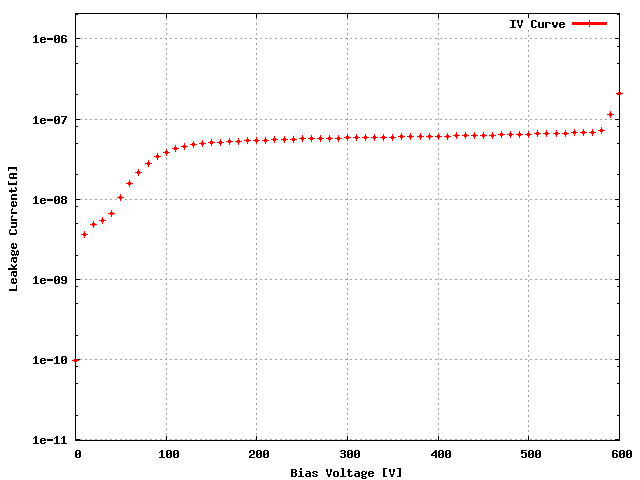

Sensor: S_1x5L_11, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 37D |
| ROC1 | W30_X74K5RT | 37C |
| ROC2 | W30_X74K5RT | 29D |
| ROC3 | W30_X74K5RT | 36D |
| ROC4 | W30_X74K5RT | 36C |
| Ibias_DAC, Ibias_DAC Data | 132 | 150 | 130 | 140 | 130 |
| Vana, VanaData | 115 | 127 | 129 | 135 | 131 |
| CalDelData and plots | 83 | 82 | 87 | 83 | 75 |
| VthrCompData and plots | 76 | 70 | 75 | 71 | 74 | Depletion Voltage is -48 and suggested operational voltage is -88
| TestDdata ,TestD Plots | 0 | 0 | 0 | 0 | 0 |
| LightData ,Light Plots | 0 | 0 | 0 | 0 | 0 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD |
Comment (if any): GOOD
This Device have been tested 0Times prior to this one and here are the links to the previous tests:End testing time: 9:54 AM
