P_1x5L_040_A

Parts committed by Isaac Childres on date 5/10/2007

PartID
BBMBBM_040-1x5
VHDI1x5L_292

ROCROC waferLabel
ROC0W33_XC4K5LT03D
ROC1W33_XC4K5LT03C
ROC2W35_XH4K3HT55B
ROC3W35_XH4K3HT55A
ROC4W33_XC4K5LT03B

Inspected by Lockwood Gale on date 6/4/2007
LR_dev0.059
LL_dev0.062

PLAQUETTE GLUED with FULL PRESSURE

FINAL COMMENT by Lockwood GaleNo assembly problems. No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 6/4/2007 by Lockwood Gale

PLAQUETTE encapsulated on 6/4/2007 by Kozak Brian

PLAQUETTE made READY for testing on 6/4/2007 by Kozak Brian

P_1x5L_040_Aon 6/5/2007 10:50 AM

P_1x5L_040_A-1on 6/5/2007 11:32 AM

P_1x5L_040_A-2on 6/5/2007 11:39 AM

P_1x5L_040_A-2on 6/5/2007 11:39 AM

PLAQUETTE TESTED on 2007-06-05 by Emily Grace

[IMAGE] of
IV_XML-File
Maximum Voltage 320 V
[IMAGE] of
LASER_XML-File
Depletion Voltage 36 V
Operational Voltage 76 V

ROCROC0ROC1ROC2ROC3ROC4
Ibias_DAC144148166166160
Vana124141133140132
Cal_Del8779807184
Vthrs_Comp7372707682
Unbumped00415500
Dead012000
Noisy00000
Undecoded00000
Total BAD012415500

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File

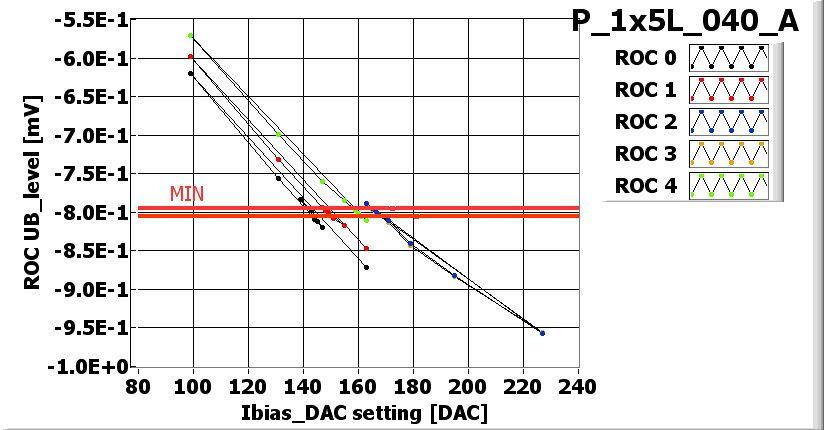

[IMAGE] of I_BIAS_DAC_XML-File

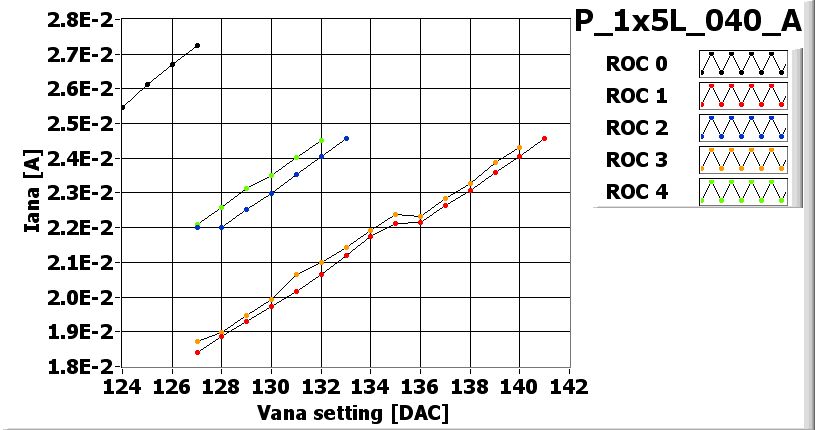

[IMAGE] of VANA_XML-File
[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File

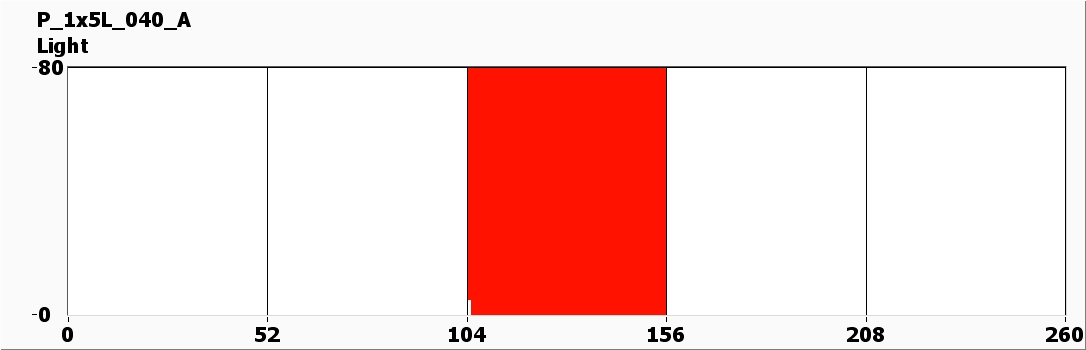

[IMAGE] of LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe12510514011595
Vsf140145140145135
VoffsetOp7590757095
VIbias_PH105100100100100

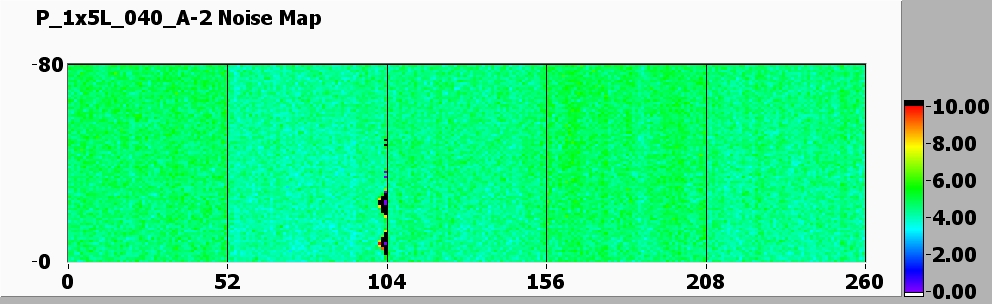

Noise MAP at VMAX

[IMAGE] of

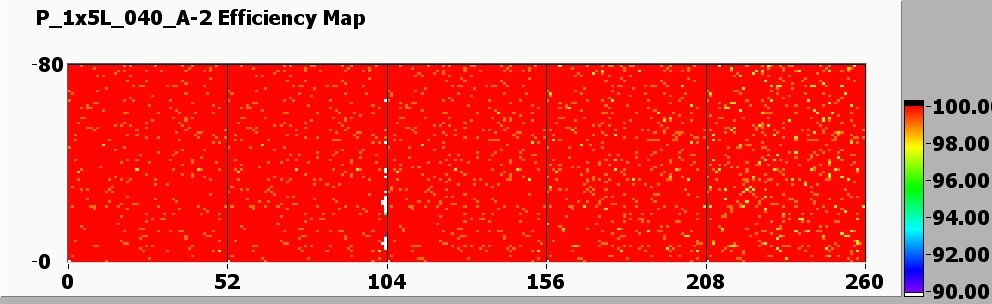

Efficiency MAP

[IMAGE] of

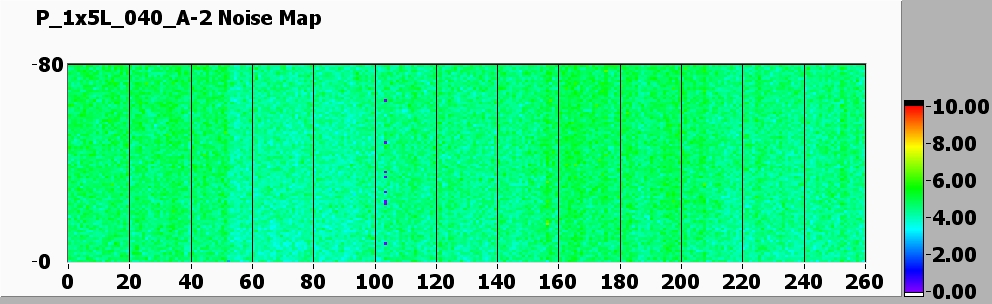

Noise MAP at -200 V

[IMAGE] of

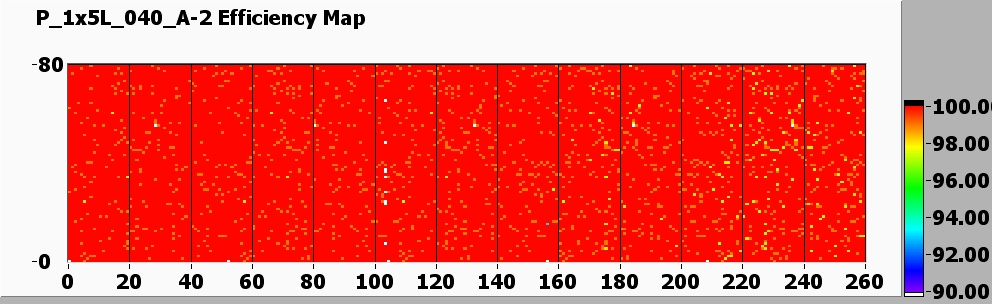

Efficiency MAP

[IMAGE] of

PLAQUETTE READY TO BE SHIPPED

Inspected by Arndt Kirk on date 6/5/2007
PictureComment

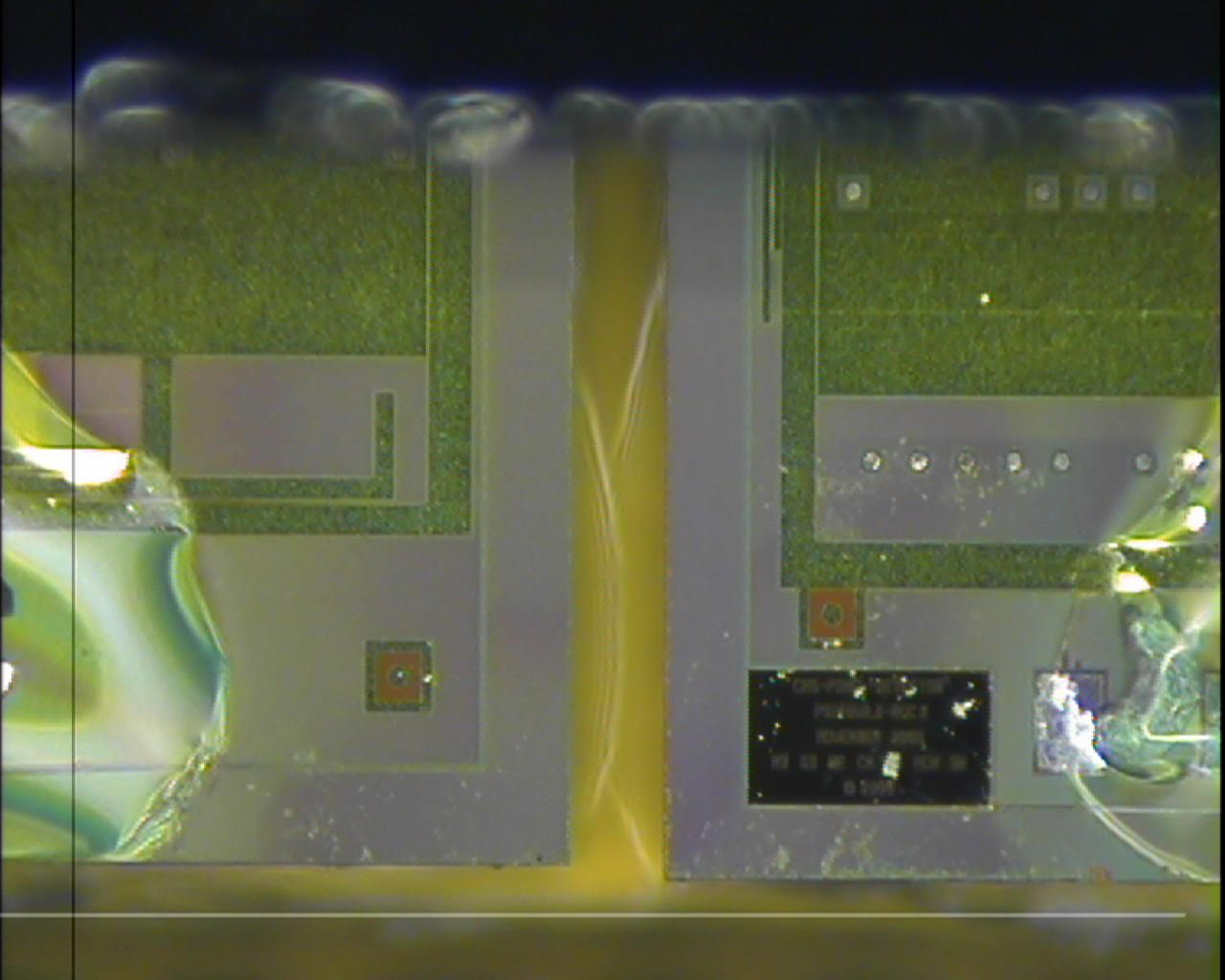

[IMAGE] of ROC2 (on the right in this picture) is shifted down by ~40 microns and to the right by ~20 microns relative to ROC1 (on the left in this picture). The debris on the ROCs was caused by probing after the mis-alignment of ROC2 was noticed. The mis-alignment of ROC2 relative to the sensor and other ROCs was noticed after electrical testing showed almost all ROC2 bump bonds are disconnected from the sensor.

Inspected by Arndt Kirk on date 6/5/2007
PictureComment
[IMAGE] of ROC2 (on the left in this picture) is shifted down ~40 microns and to the right ~20 microns relative to ROC3 (on the right in this picture). The debris on the ROCs was caused by probing after the mis-alignment of ROC2 was noticed.

Shipped on date 2007-06-11
