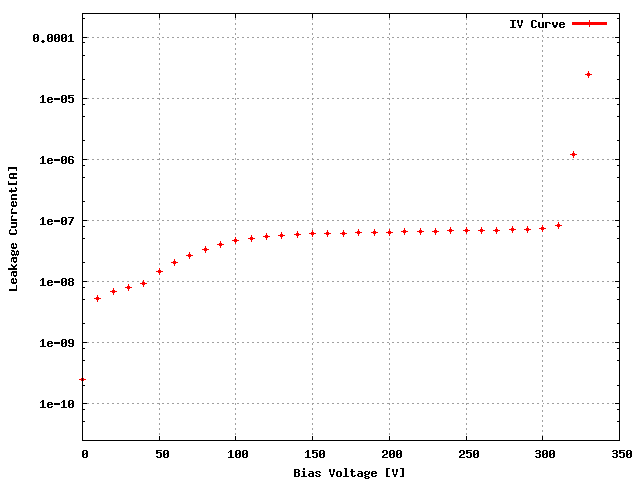

Sensor: S_1x5L_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W33_XC4K5LT | 03D |
ROC1 | W33_XC4K5LT | 03C |
ROC2 | W35_XH4K3HT | 55B |
ROC3 | W35_XH4K3HT | 55A |
ROC4 | W33_XC4K5LT | 03B |
Ibias_DAC, Ibias_DAC Data | 140 | 146 | 164 | 162 | 158 |
Vana, VanaData | 124 | 141 | 133 | 141 | 132 |
CalDelData and plots | 0 | 66 | 0 | 0 | 0 |
VthrCompData and plots | 122 | 89 | 119 | 127 | 129 |
