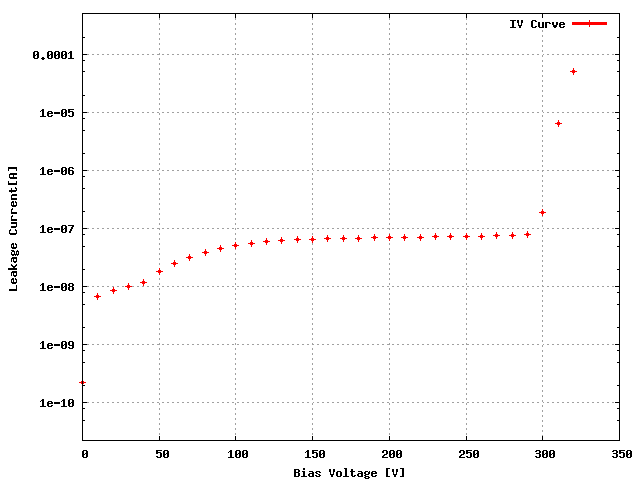

Sensor: S_1x5L_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
ROC | ROC wafer | Label |
---|---|---|
ROC0 | W33_XC4K5LT | 03D |
ROC1 | W33_XC4K5LT | 03C |
ROC2 | W35_XH4K3HT | 55B |
ROC3 | W35_XH4K3HT | 55A |
ROC4 | W33_XC4K5LT | 03B |
Ibias_DAC, Ibias_DAC Data | 144 | 148 | 166 | 166 | 160 |
Vana, VanaData | 124 | 141 | 133 | 140 | 132 |
CalDelData and plots | 87 | 79 | 80 | 71 | 84 |
VthrCompData and plots | 73 | 72 | 70 | 76 | 82 | Depletion Voltage is -36 and suggested operational voltage is -76
TestDdata ,TestD Plots | 1 | 24 | 4009 | 0 | 0 |
LightData ,Light Plots | 0 | 0 | 4155 | 0 | 0 |
Pass/Fail TestD | GOOD | GOOD | BAD | GOOD | GOOD |
Pass/Fail LIGHT | GOOD | GOOD | BAD | GOOD | GOOD |

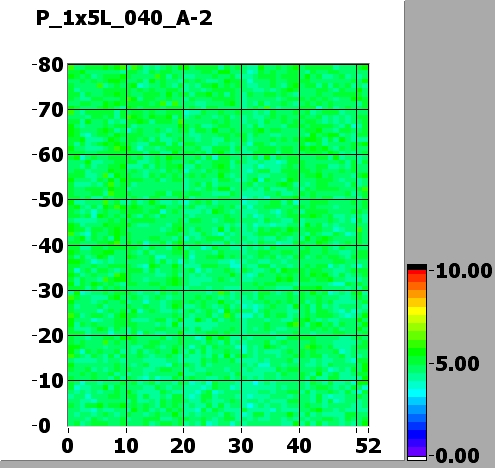

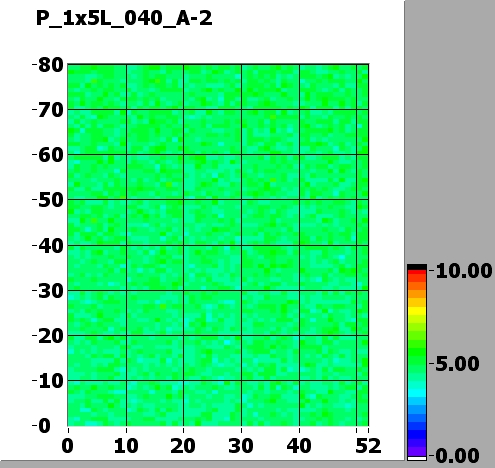

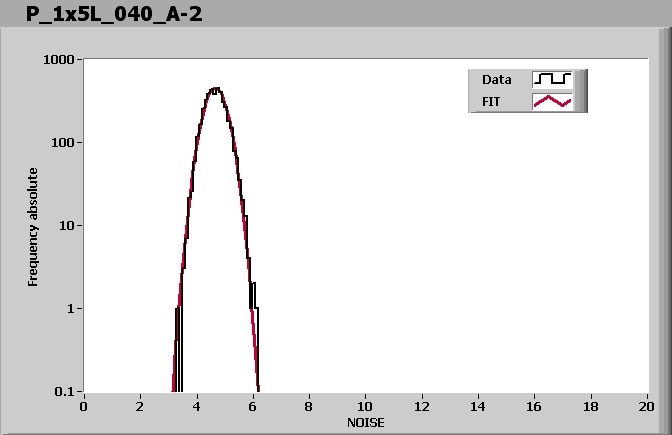

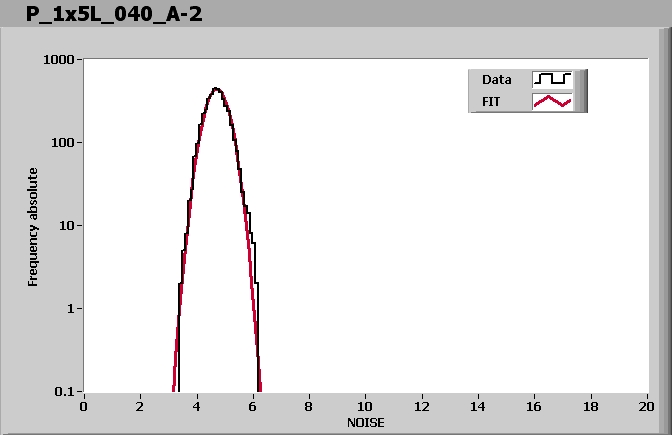

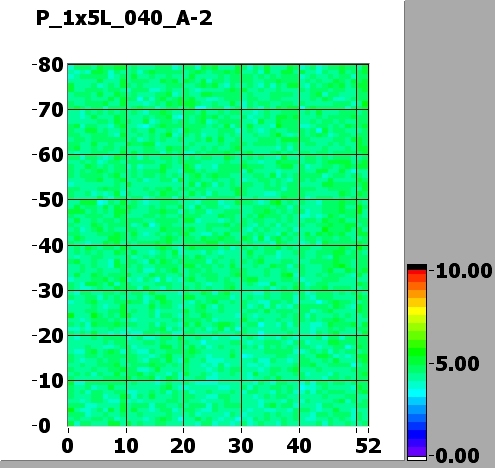

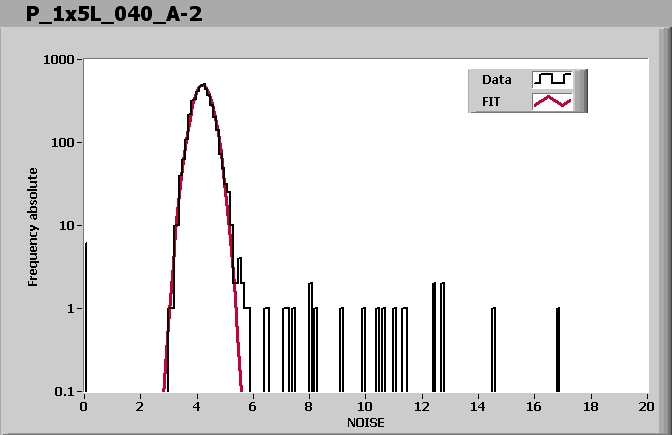

Noise MAP at VMAX
Efficiency MAP
EXTRA DACs for NOISE
VHldDe | 125 | 105 | 140 | 115 | 95 |
Vsf | 140 | 145 | 140 | 145 | 135 |
VoffsetOp | 75 | 90 | 75 | 70 | 95 |
VIbias_PH | 105 | 100 | 100 | 100 | 100 |
Comment (if any):
This Device have been tested 2Times prior to this one and here are the links to the previous tests:End testing time: 12:02 PM
