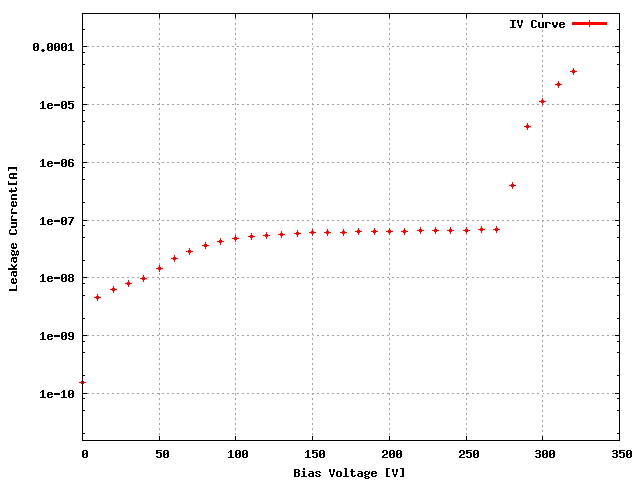

Sensor: S_1x5L_04, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W33_XC4K5LT | 03D |
| ROC1 | W33_XC4K5LT | 03C |
| ROC2 | W35_XH4K3HT | 55B |
| ROC3 | W35_XH4K3HT | 55A |
| ROC4 | W33_XC4K5LT | 03B |
| Ibias_DAC, Ibias_DAC Data | 140 | 146 | 164 | 164 | 158 |
| Vana, VanaData | 124 | 141 | 133 | 141 | 132 |
| CalDelData and plots | 87 | 79 | 80 | 71 | 83 |
| VthrCompData and plots | 73 | 72 | 69 | 77 | 82 | Depletion Voltage is -46 and suggested operational voltage is -86
