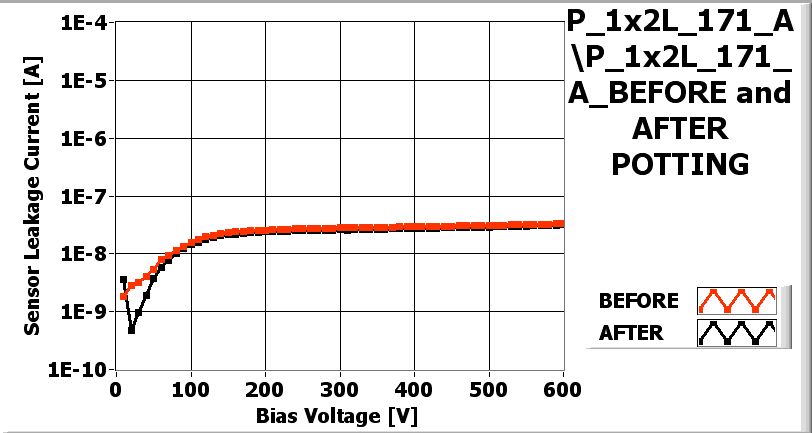

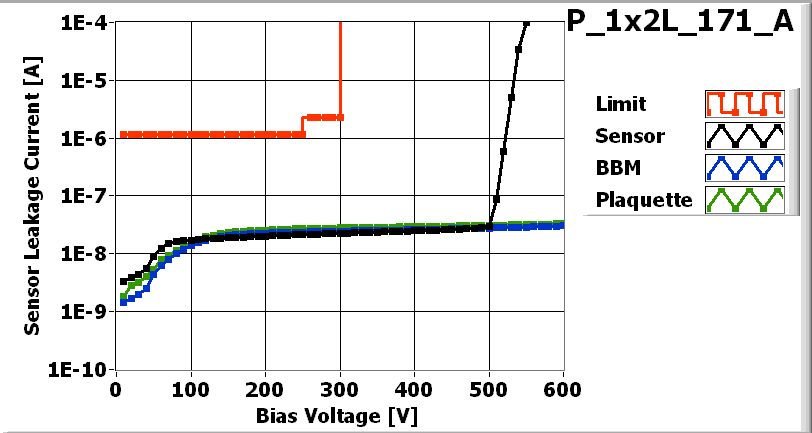

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_1x2L_171_A_LASER.jpg)

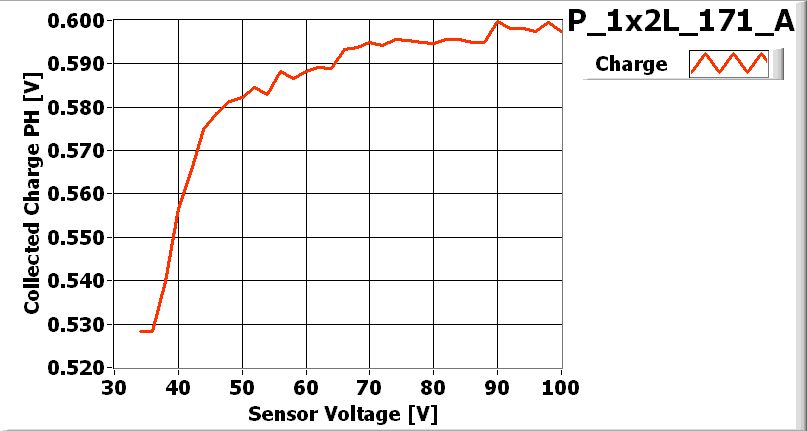

| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 2/1/2007
| Part | ID |
|---|---|
| BBM | BBM_171-1x2T |
| VHDI | 1x2L_235 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W30_X74K5RT | 25B |
| ROC1 | W30_X74K5RT | 24A |
Inspected by Lockwood Gale on date 2/5/2007
| LR_dev | 0.085 |
| LL_dev | 0.094 |
| FINAL COMMENT by Lockwood Gale | No assembly problems No wirebonding problems. |
PLAQUETTE made READY for testing on 2/5/2007 by Lockwood Gale
P_1x2L_171_Aon 2/5/2007 4:33 PM
P_1x2L_171_Aon 2/5/2007 4:33 PM
PLAQUETTE TESTED on 2007-02-05 by Cameron McKinney
|
|
|||
|
|
| ROC | ROC0 | ROC1 | |
| Ibias_DAC | 136 | 138 | |
| Vana | 130 | 134 | |
| Cal_Del | 68 | 88 | |
| Vthrs_Comp | 72 | 78 | |
| Unbumped | 0 | 0 | |
| Dead | 0 | 0 | |
| Noisy | 0 | 0 | |
| Undecoded | 0 | 0 | |
| Total BAD | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_1x2L_171_A_Ibias-dac.jpg) |

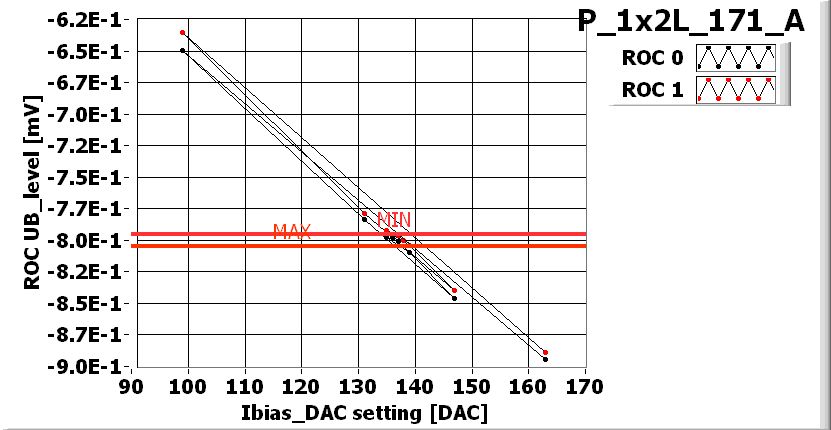

I_BIAS_DAC_XML-File |

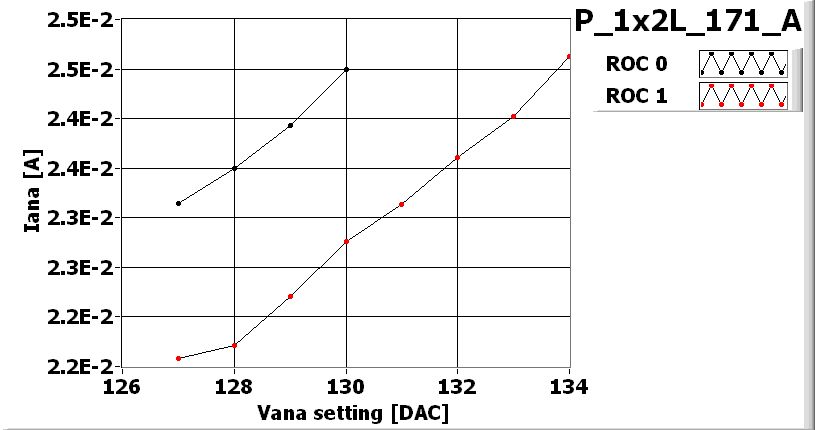

![[IMAGE] of](P_1x2L_171_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_1x2L_171_ADead-PixelAlivetest.jpg){kind=tracking} |

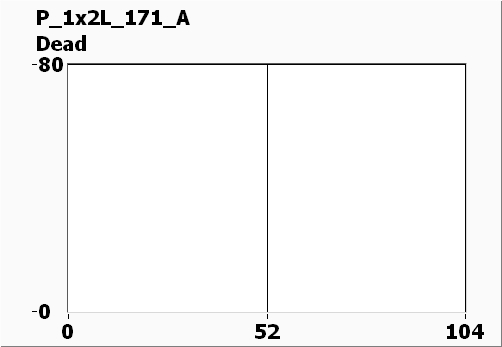

DEAD_XML-File |
![[IMAGE] of](P_1x2L_171_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_1x2L_171_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

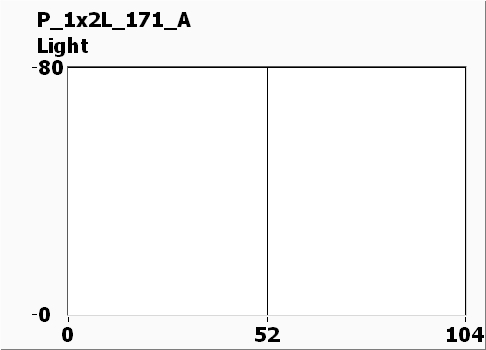

![[IMAGE] of](P_1x2L_171_Ano-bump-light.jpg) |
LIGHT_XML-File |

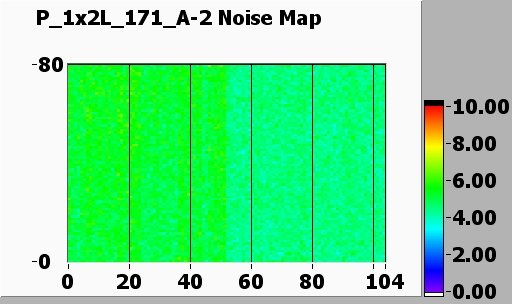

Noise MAP
![[IMAGE] of](P_1x2L_171_A-2-100-noise.jpg)

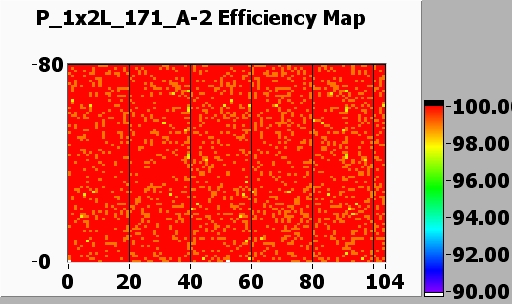

Efficiency MAP
![[IMAGE] of](P_1x2L_171_A-2-100-efficiency.jpg)

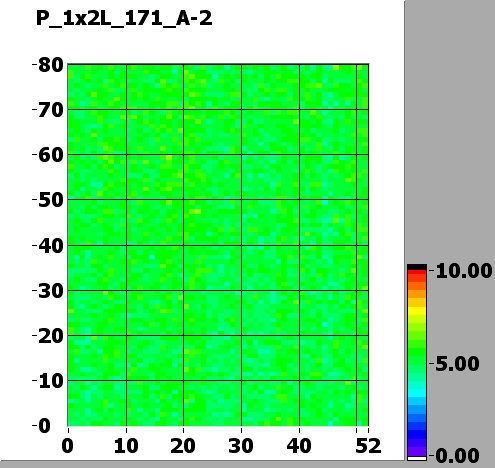

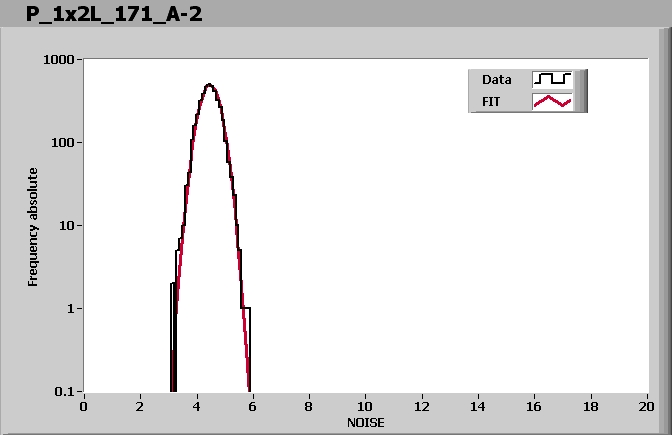

| ROC0 NOISE | ![[IMAGE] of](P_1x2L_171_A-2-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_1x2L_171_A-2-100-noise-ROC0-HISTO.jpg) | MEAN = 5.193427SIGMA = 0.395571 |
| ROC1 NOISE | ![[IMAGE] of](P_1x2L_171_A-2-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_1x2L_171_A-2-100-noise-ROC1-HISTO.jpg) | MEAN = 4.461477SIGMA = 0.335452 |
PLAQUETTE READY TO BE POTTED
