| Plaquette | Position | Purdue Map | FNAL Plaq. Map | FNAL Panel Map |
|---|---|---|---|---|

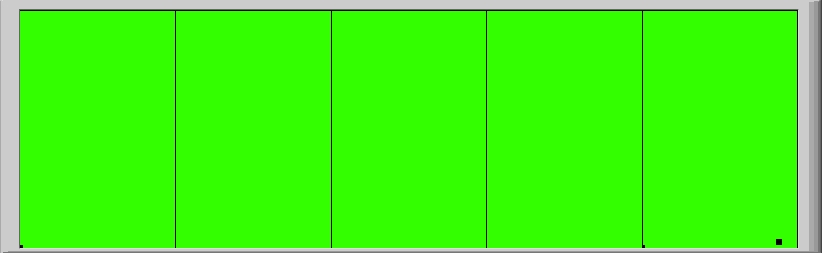

| P_1x5R_028_C | 4 | | | |

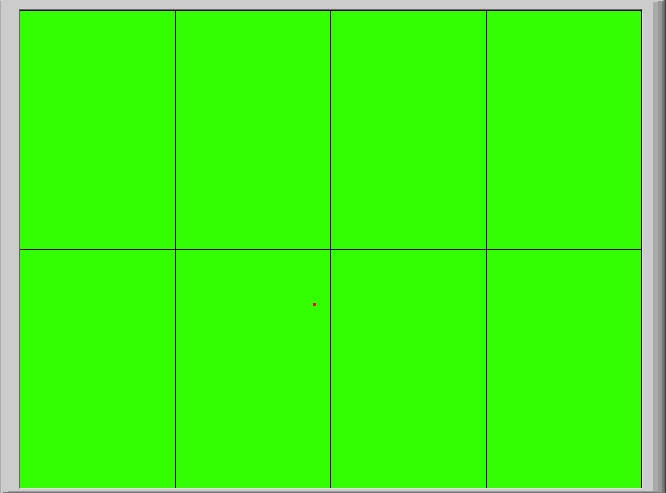

| P_2x4T_067_A | 3 | | | |

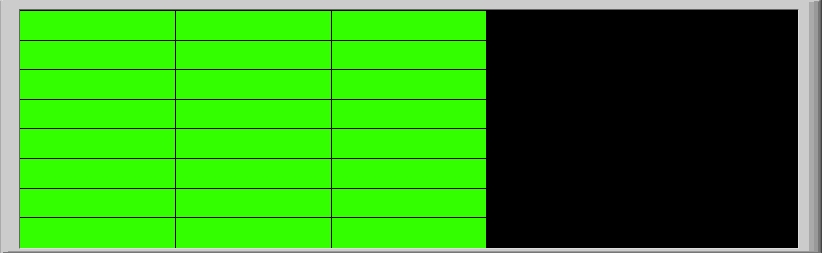

| P_2x3T_104_A | 2 | | | |

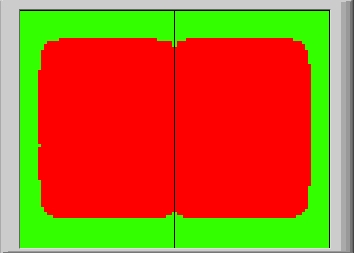

| P_1x2L_171_A | 1 | | | |
| Panel assembly comments |
|---|
| RV - The lower left corner of the 1x5 plaquette had the VHDI loose, not firmly attached to the silicon substrate. A drop of epoxy was applied (04/16/07) and the VHDI is now firmly attached to the silicon substrate. RV/SM (4June07)- This panel had one wire bond (HV on 2x4) damage while mounting on half-disk. So RV fixed it and we did an IV curve again. The IV curve is done at +20C and is saved in root file P_1x5R_028_C_PanelRun3_v_2_8_0_IV_20C.root on fpixserv. he plot is also in elog entry #3897 |
