Rabbit sample changer

Accelerator mass spectrometry of ¹⁰Be, ¹⁴C, ²⁶Al, ³⁶Cl, ⁴¹Ca, ¹²⁹I

AMS injector beamline

  Cassette, Rod
  Assembly
  and Drive Table

  Rabbit sample
  changer

  Cathode assembly
  with immersion lens

  Insulator

  Ionizer

  Extractor-Steerer

  Einzel lens

Ion Optics

Performance and Progress

How they move

» Ion Source

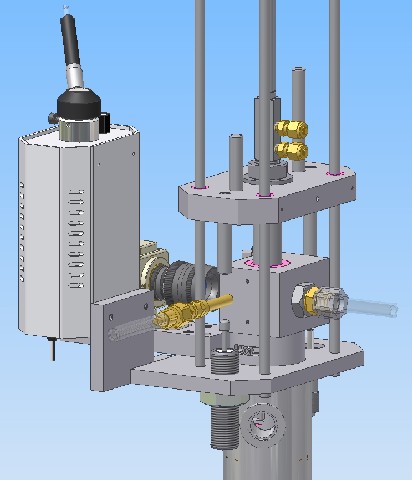

Sample receiver section

X-Z sample positioning stage

Rod seal, Rod - cross section

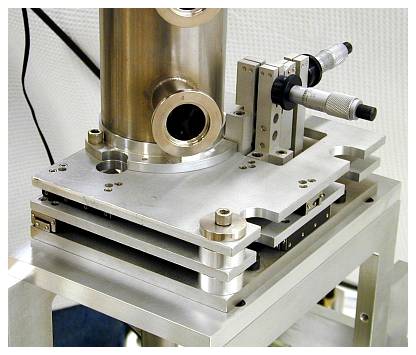

X-Z sample positioning stage mounted on test bed

Actuator driven, sample changer rod

Hardened steel insert with cathode

Cross section of rod at hardened steel insert - Yellow is the cathode

Hardened steel insert without cathode

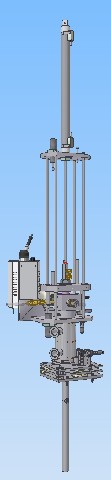

X-Z sample positioning stage & rabbit changer, rod down position

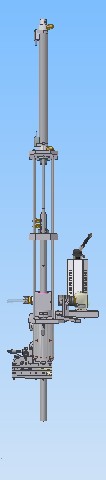

X-Z sample positioning stage & rabbit changer, rod middle position

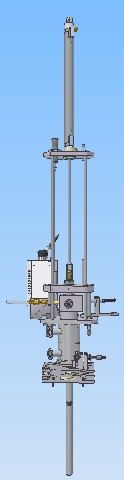

X-Z sample positioning stage & rabbit changer, rod down position

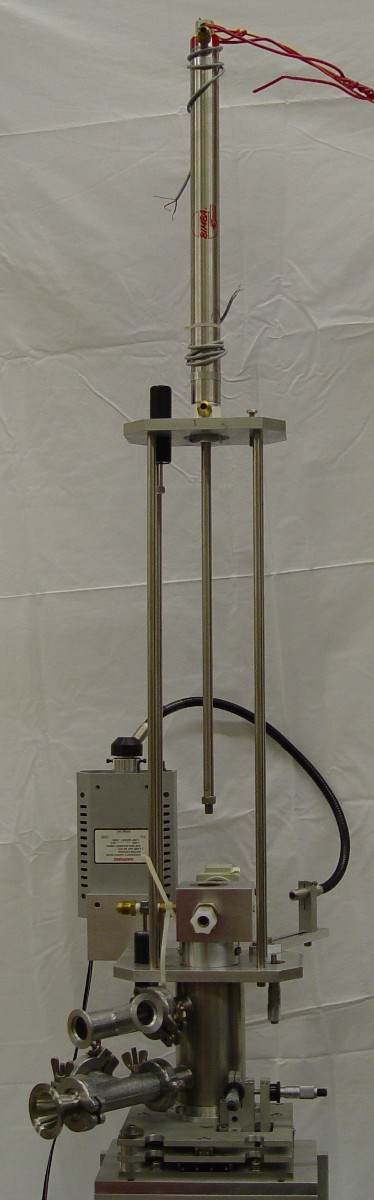

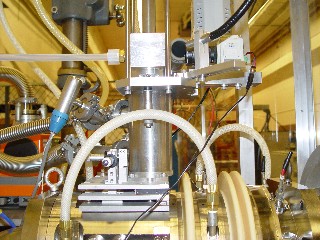

X-Z sample positioning stage & rabbit sample changer
