Accelerator mass spectrometry of 10Be, 14C, 26Al, 36Cl, 41Ca, 129I
Introduction
 Research Using AMS For Users Personnel Ion Source Useful Links Photogallery PRIME Lab Home
AMS injector beamline
  Cassette, Rod
  Assembly
  and Drive Table

  Rabbit sample
  changer

  Cathode assembly
  with immersion lens

  Insulator

  Ionizer

  Extractor-Steerer

  Einzel lens

Ion Optics

Performance and Progress

How they move

0

» Ion Source

Ion Optics

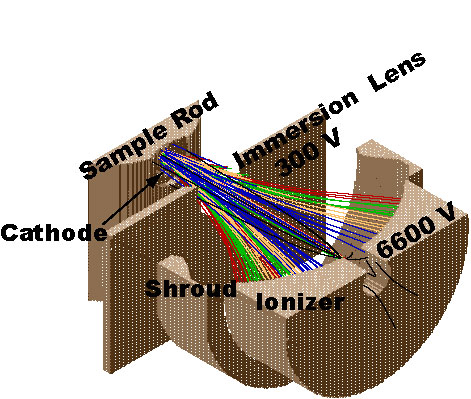

Trajectories of Cs+ ions emitted from the ionizer surface and focused onto to target by the potential gradients in the proposed PRIME Lab source.

Trajectories of Cs+ ions emitted from the ionizer surface and focused onto to target by the potential gradients in the proposed PRIME Lab source.

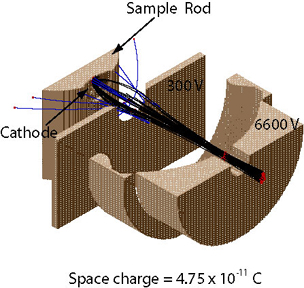

 Trajectories of negatively charged m/z 100 ion transported out of the source through the ionizer.

Trajectories of negatively charged m/z 100 ion transported out of the source through the ionizer.

Midplane isopotential contours (6600 V applied to the ionizer, 110V spacing between each contour).

PRIME lab ion source

PRIME lab ion source

 PRIME Lab ion source with the hole in the immersion lens 25% larger in diameter

PRIME Lab ion source with the hole in the immersion lens 25% larger in diameter

 PRIME Lab ion source in b with 600 V applied to the immersion lens

  PRIME Lab ion source in b with 600 V applied to the immersion lens

More Information:

View this PDF:

Email George Jackson <gjackson@physics.purdue.edu> for Paper:

Ion Source Modeling and Design at PRIME Lab; George S. Jackson, David Elmore, Marc Caffee, Kenneth A. Mueller, Bob De Bonte, Paul Muzikar and Brad Alexander PRIME Lab, Purdue University, 525 Northwestern Avenue, West Lafayette, IN 47907-2036 USA AMS-9 Reference #'s:  O7A-1 and PTPi-2
