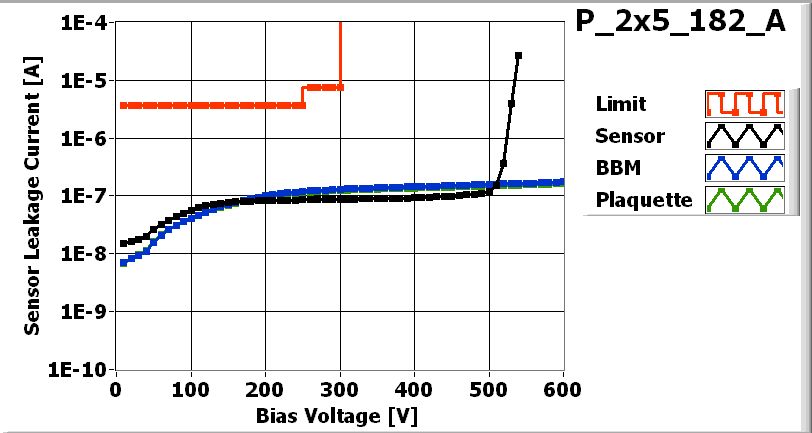

![[IMAGE] of](P_2x5_182_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

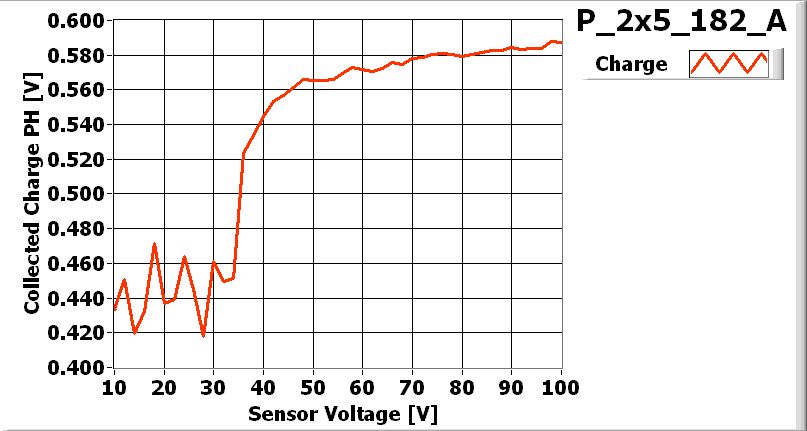

![[IMAGE] of](P_2x5_182_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 44 V |
| Operational Voltage 84 V |
Parts committed by Bolla Gino on date 1/31/2007
| Part | ID |
|---|---|
| BBM | BBM_182-2x5 |
| VHDI | 2x5_321 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W28_X54K5TT | 25C |
| ROC1 | W28_X54K5TT | 24A |
| ROC2 | W28_X54K5TT | 23D |
| ROC3 | W28_X54K5TT | 23C |
| ROC4 | W28_X54K5TT | 23A |
| ROC5 | W29_X64K5ST | 62D |
| ROC6 | W29_X64K5ST | 63B |
| ROC7 | W29_X64K5ST | 63C |
| ROC8 | W29_X64K5ST | 63D |
| ROC9 | W29_X64K5ST | 64A |
Inspected by Lockwood Gale on date 2/12/2007
| LR_dev | 0.050 |
| LL_dev | 0.062 |
| FINAL COMMENT by Lockwood Gale | No assembly problem. NO wirebonding problems. |
PLAQUETTE made READY for testing on 2/12/2007 by Lockwood Gale
P_2x5_182_Aon 2/12/2007 11:32 AM
P_2x5_182_Aon 2/12/2007 11:32 AM
PLAQUETTE TESTED on 2007-02-12 by Isaac Childres
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 124 | 132 | 128 | 142 | 146 | 118 | 124 | 146 | 132 | 142 | |
| Vana | 135 | 128 | 132 | 128 | 142 | 139 | 123 | 144 | 140 | 142 | |
| Cal_Del | 82 | 75 | 77 | 76 | 74 | 84 | 87 | 78 | 91 | 83 | |
| Vthrs_Comp | 77 | 80 | 67 | 82 | 87 | 75 | 72 | 89 | 80 | 74 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

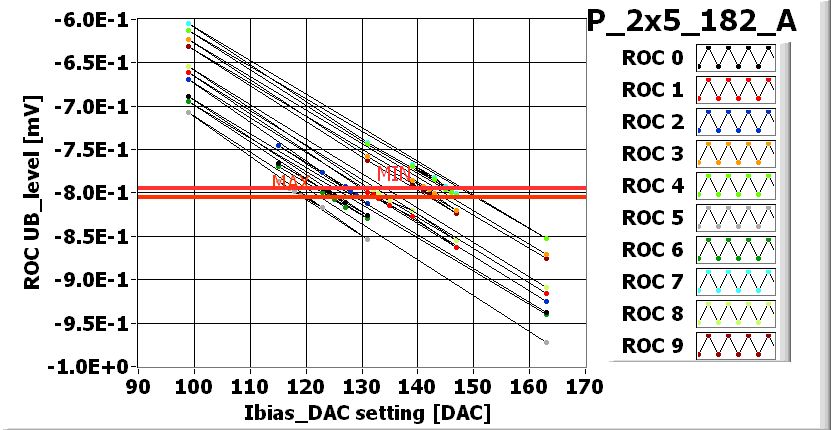

![[IMAGE] of](P_2x5_182_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

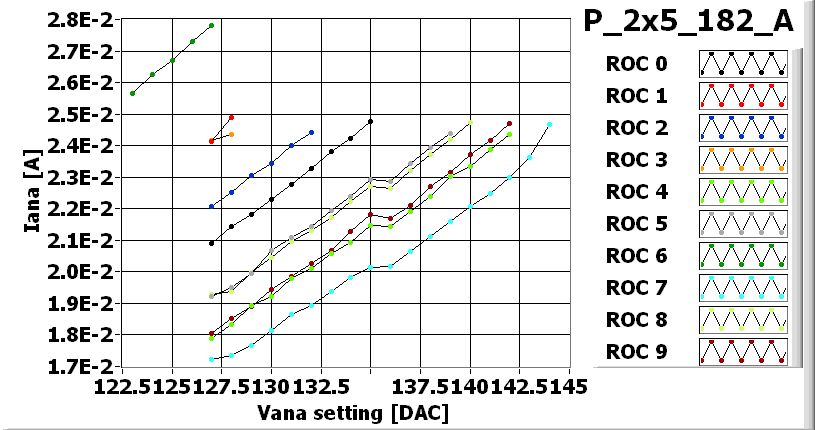

![[IMAGE] of](P_2x5_182_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_182_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_182_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_182_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_182_Ano-bump-light.jpg) |
LIGHT_XML-File |
Noise MAP
![[IMAGE] of](P_2x5_182_A-100-noise.jpg)

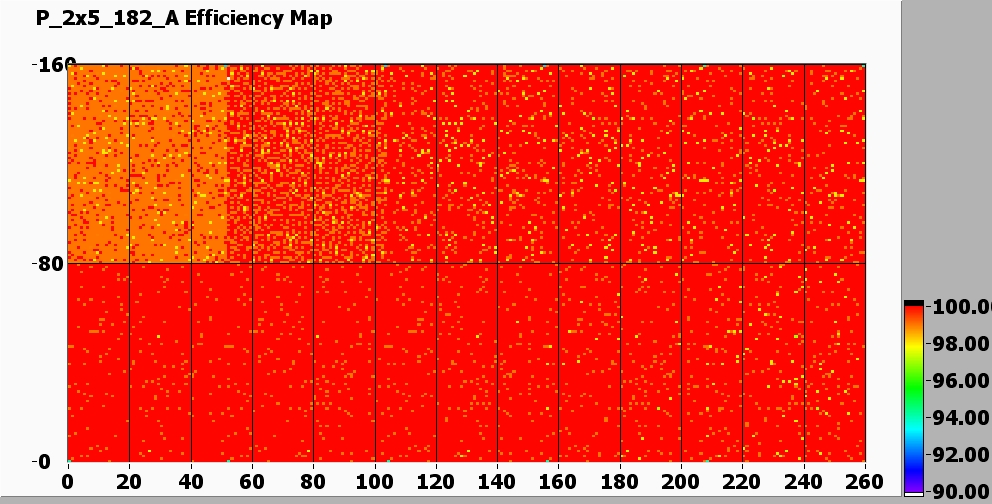

Efficiency MAP
![[IMAGE] of](P_2x5_182_A-100-efficiency.jpg)
| ROC0 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC0-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC0-HISTO.jpg) | MEAN = 4.999117SIGMA = 0.501046 |

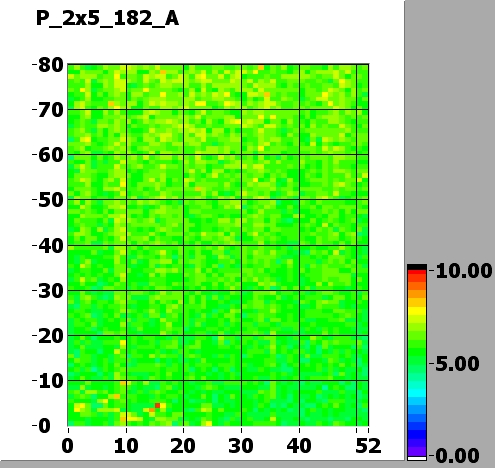

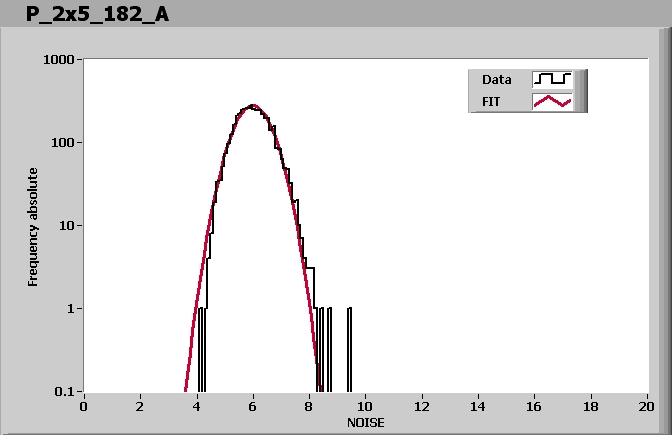

| ROC1 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC1-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC1-HISTO.jpg) | MEAN = 5.986353SIGMA = 0.603657 |

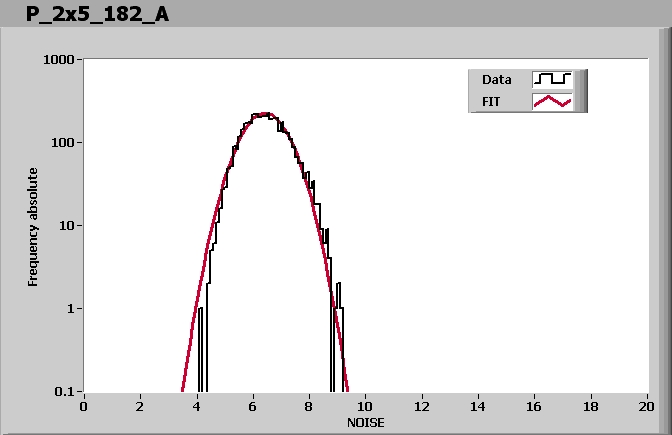

| ROC2 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC2-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC2-HISTO.jpg) | MEAN = 6.418798SIGMA = 0.748506 |
| ROC3 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC3-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC3-HISTO.jpg) | MEAN = 4.499416SIGMA = 0.386465 |

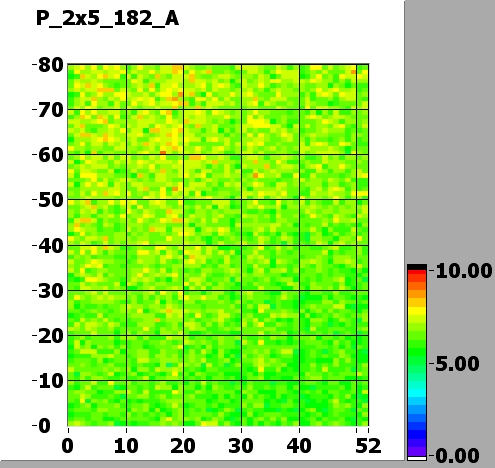

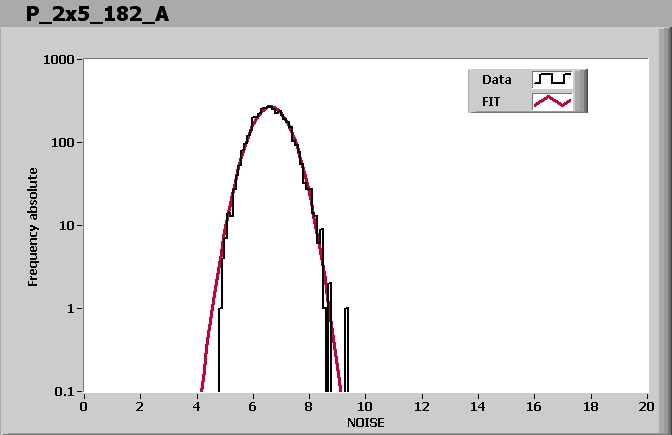

| ROC4 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC4-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC4-HISTO.jpg) | MEAN = 6.624600SIGMA = 0.621151 |

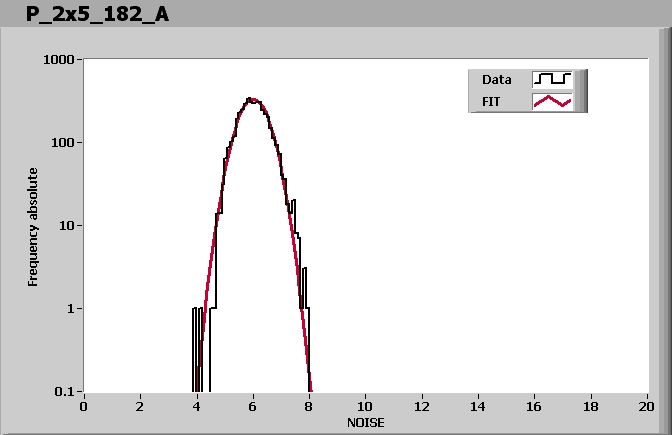

| ROC5 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC5-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC5-HISTO.jpg) | MEAN = 6.006538SIGMA = 0.503421 |

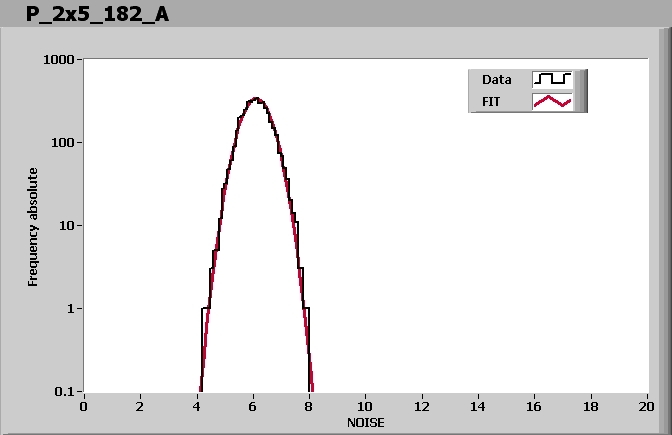

| ROC6 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC6-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC6-HISTO.jpg) | MEAN = 6.109335SIGMA = 0.494858 |

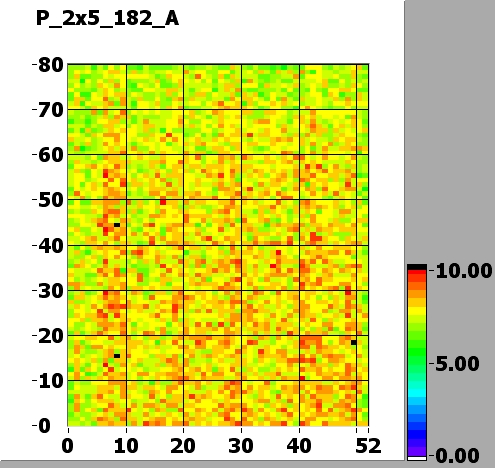

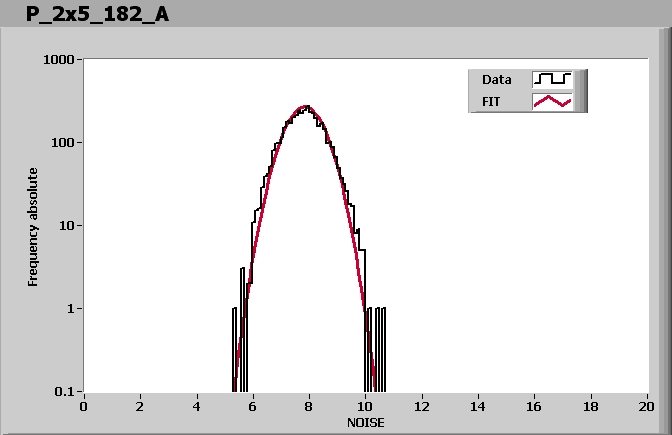

| ROC7 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC7-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC7-HISTO.jpg) | MEAN = 7.832098SIGMA = 0.633509 |

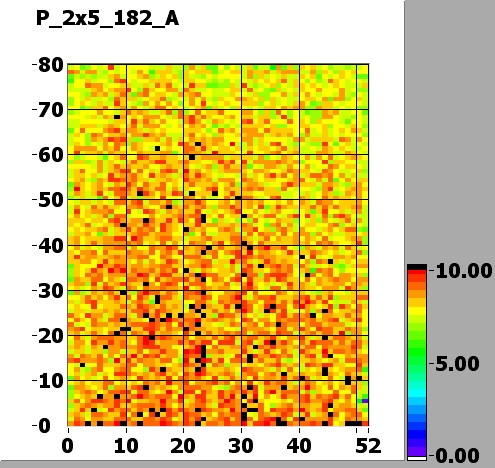

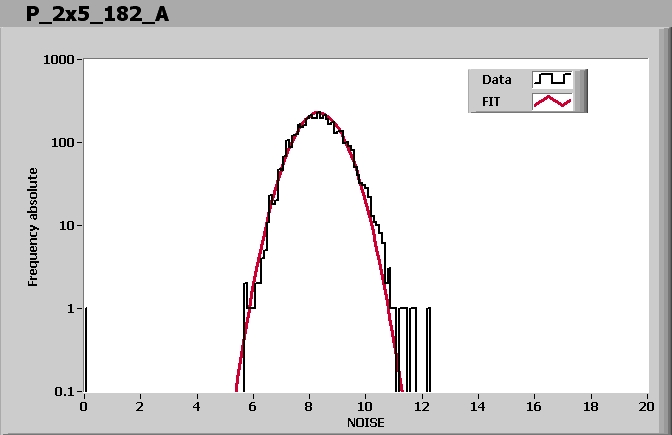

| ROC8 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC8-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC8-HISTO.jpg) | MEAN = 8.326582SIGMA = 0.748971 |

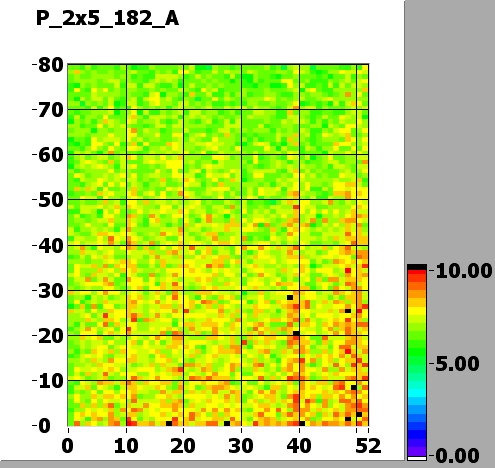

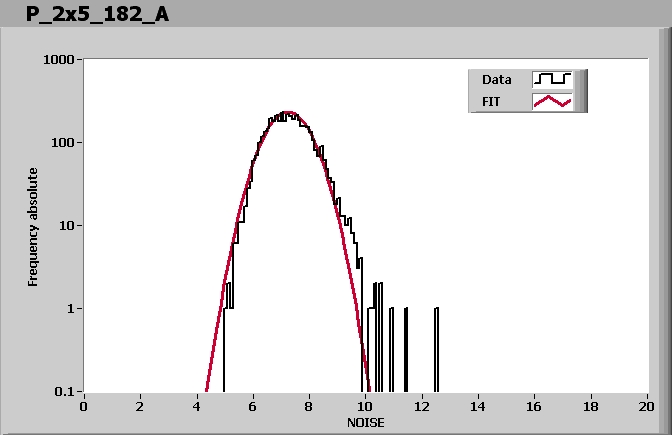

| ROC9 NOISE | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC9-MAP.jpg) | ![[IMAGE] of](P_2x5_182_A-100-noise-ROC9-HISTO.jpg) | MEAN = 7.239251SIGMA = 0.733564 |

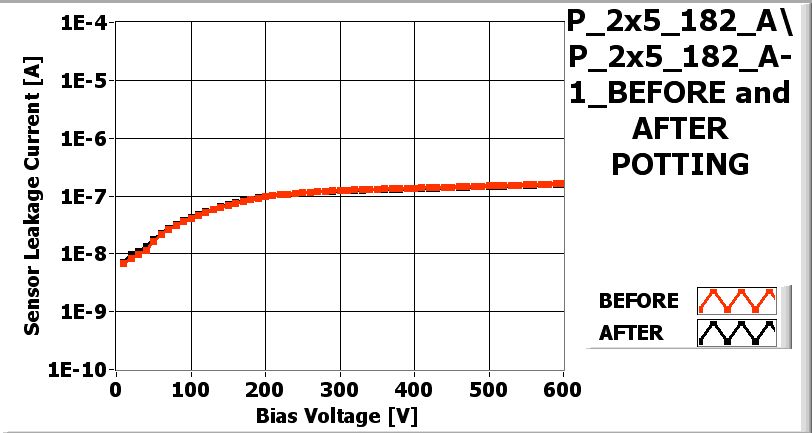

PLAQUETTE READY TO BE POTTED
