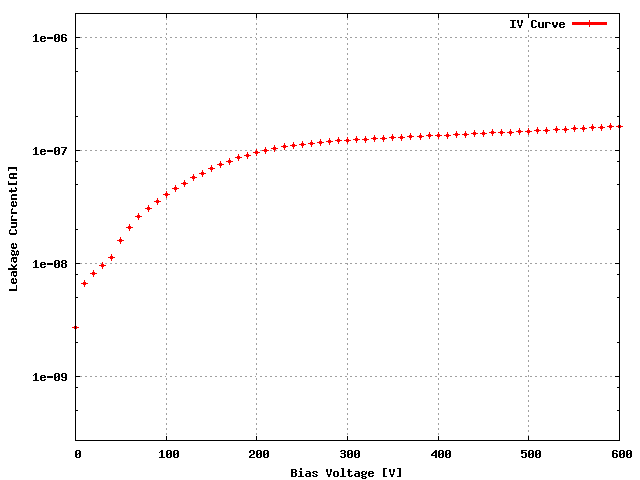

Sensor: S_2x5_182, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W28_X54K5TT	25C
ROC1	W28_X54K5TT	24A
ROC2	W28_X54K5TT	23D
ROC3	W28_X54K5TT	23C
ROC4	W28_X54K5TT	23A
ROC5	W29_X64K5ST	62D
ROC6	W29_X64K5ST	63B
ROC7	W29_X64K5ST	63C
ROC8	W29_X64K5ST	63D
ROC9	W29_X64K5ST	64A

Depletion Voltage is -44 and suggested operational voltage is -84

Ibias_DAC, Ibias_DAC Data	124	132	128	142	146	118	124	146	132	142
Vana, VanaData	135	128	132	128	142	139	123	144	140	142
CalDelData and plots	82	75	77	76	74	84	87	78	91	83
VthrCompData and plots	77	80	67	82	87	75	72	89	80	74
TestDdata ,TestD Plots	2	0	0	0	0	1	0	0	153	81
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	BAD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

ROC0 NOISE			MEAN = 4.999117 SIGMA = 0.501046
ROC1 NOISE			MEAN = 5.986353 SIGMA = 0.603657
ROC2 NOISE			MEAN = 6.418798 SIGMA = 0.748506
ROC3 NOISE			MEAN = 4.499416 SIGMA = 0.386465
ROC4 NOISE			MEAN = 6.624600 SIGMA = 0.621151
ROC5 NOISE			MEAN = 6.006538 SIGMA = 0.503421
ROC6 NOISE			MEAN = 6.109335 SIGMA = 0.494858
ROC7 NOISE			MEAN = 7.832098 SIGMA = 0.633509
ROC8 NOISE			MEAN = 8.326582 SIGMA = 0.748971
ROC9 NOISE			MEAN = 7.239251 SIGMA = 0.733564

Comment (if any): Bad spot in Test D, but otherwise okay. Potting.

End testing time: 11:51 AM
