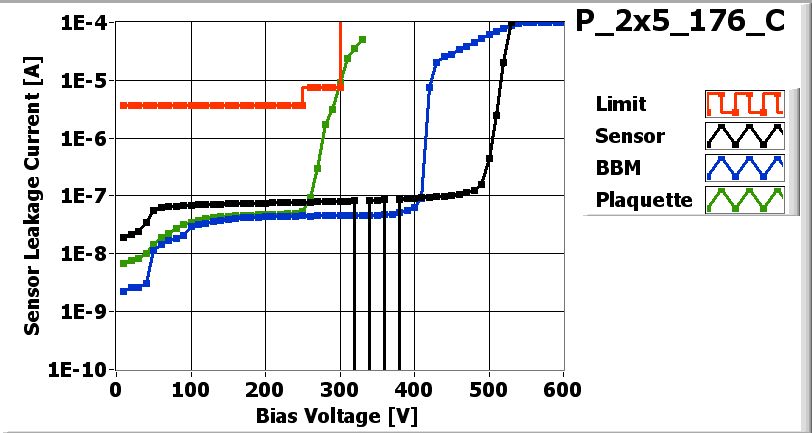

![[IMAGE] of](P_2x5_176_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 330 V |
![[IMAGE] of](P_2x5_176_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Arndt Kirk on date 5/10/2007
| Part | ID |
|---|---|
| BBM | BBM_176-2x5 |
| VHDI | 2x5_420 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 23C |
| ROC1 | KFNG13T | 03B |
| ROC2 | KFNG13T | 13C |
| ROC3 | KFNG13T | 13D |
| ROC4 | KFNG13T | 33C |
| ROC5 | KFNG13T | 33B |
| ROC6 | KFNG13T | 33D |
| ROC7 | KFNG13T | 43A |
| ROC8 | KFNG13T | 74A |
| ROC9 | KFNG13T | 13B |
Inspected by Lockwood Gale on date 5/11/2007
| LR_dev | 0.042 |
| LL_dev | 0.028 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/11/2007 by Lockwood Gale
PLAQUETTE encapsulated on 5/11/2007 by Ortiz Jason
PLAQUETTE made READY for testing on 5/11/2007 by Ortiz Jason
P_2x5_176_Con 5/11/2007 2:47 PM
P_2x5_176_Con 5/11/2007 2:47 PM
P_2x5_176_C-1on 5/11/2007 3:39 PM
P_2x5_176_C-2on 5/14/2007 9:03 AM
P_2x5_176_C-2on 5/14/2007 9:03 AM
PLAQUETTE TESTED on 2007-05-14 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 166 | 156 | 164 | 138 | 158 | 158 | 144 | 154 | 162 | 162 | |
| Vana | 127 | 138 | 137 | 111 | 146 | 138 | 144 | 131 | 119 | 128 | |
| Cal_Del | 75 | 75 | 85 | 83 | 73 | 75 | 68 | 78 | 97 | 64 | |
| Vthrs_Comp | 86 | 72 | 83 | 76 | 83 | 72 | 88 | 76 | 80 | 90 | |
| Unbumped | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 1 | 0 | 0 | 1 | 1 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 1 | 0 | 0 | 1 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

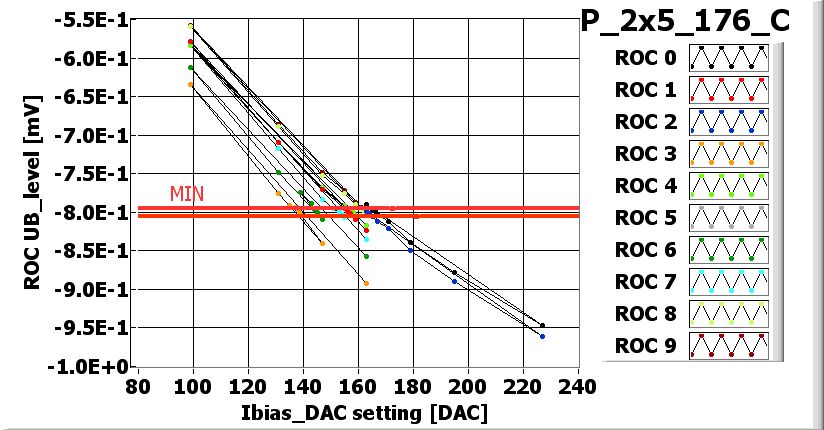

![[IMAGE] of](P_2x5_176_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

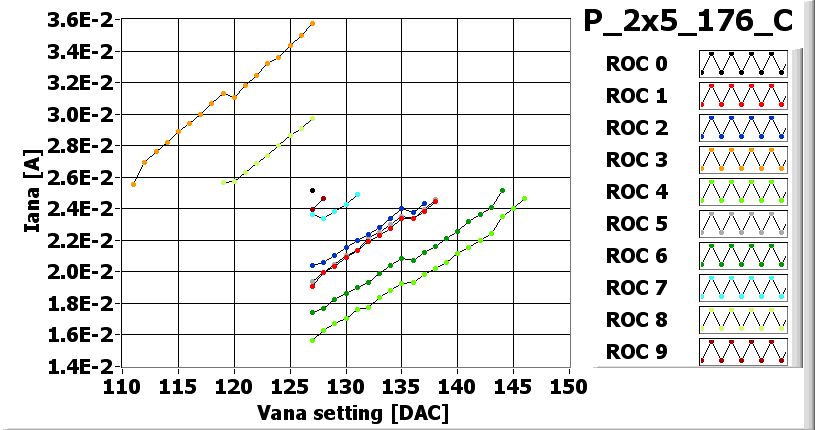

![[IMAGE] of](P_2x5_176_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_176_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_176_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_176_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_176_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 115 | 95 | 95 | 145 | 95 | 90 | 95 | 125 | 145 | 120 |
| Vsf | 140 | 140 | 145 | 130 | 140 | 140 | 145 | 140 | 135 | 140 |
| VoffsetOp | 105 | 95 | 95 | 55 | 110 | 100 | 85 | 60 | 55 | 90 |
| VIbias_PH | 100 | 100 | 100 | 105 | 105 | 100 | 100 | 100 | 105 | 100 |
Noise MAP
![[IMAGE] of](P_2x5_176_C-2-310-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_176_C-2-310-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
