BBM_176-2x5
RECEIVED by Bolla Gino on date 2007-05-02 From RTI
ROC | ROC wafer | Label |
ROC0 | KFNG13T | 23C |
ROC1 | KFNG13T | 03B |
ROC2 | KFNG13T | 13C |
ROC3 | KFNG13T | 13D |
ROC4 | KFNG13T | 33C |
ROC5 | KFNG13T | 33B |
ROC6 | KFNG13T | 33D |
ROC7 | KFNG13T | 43A |
ROC8 | KFNG13T | 74A |
ROC9 | KFNG13T | 13B |
Inspected by Bolla Gino on date 5/9/2007

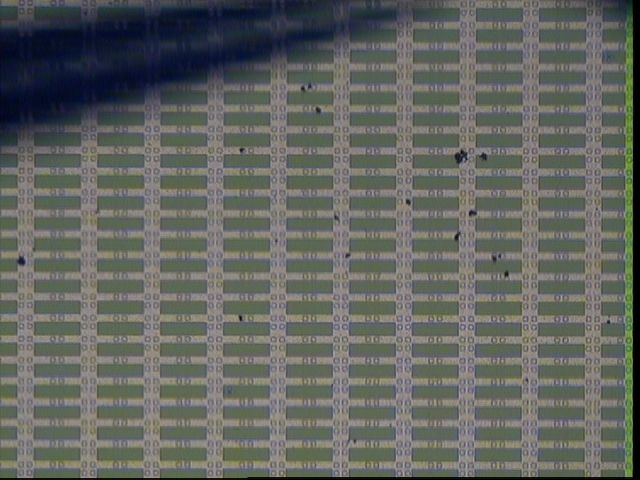

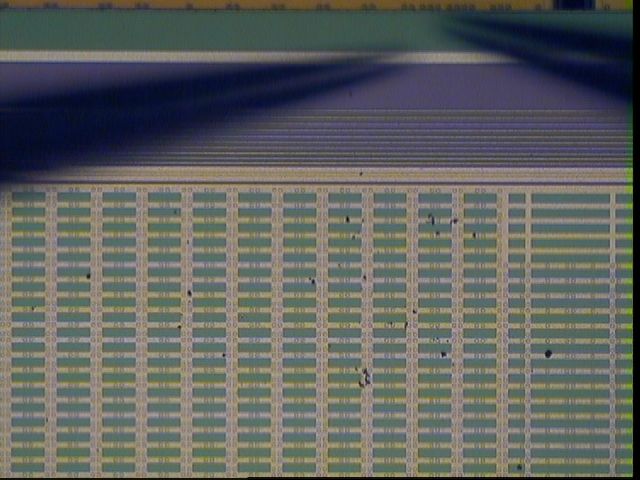

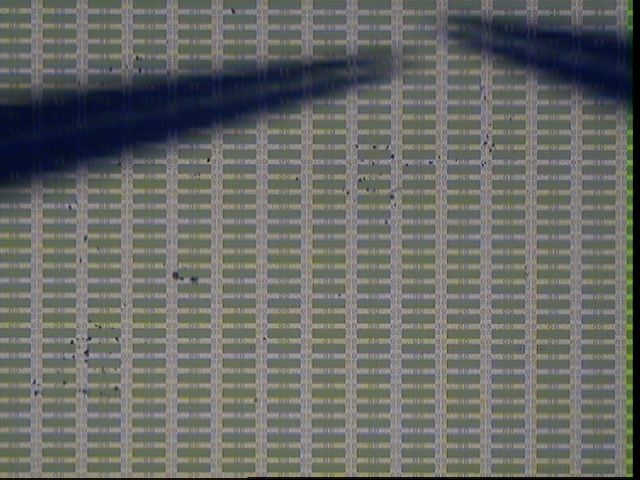

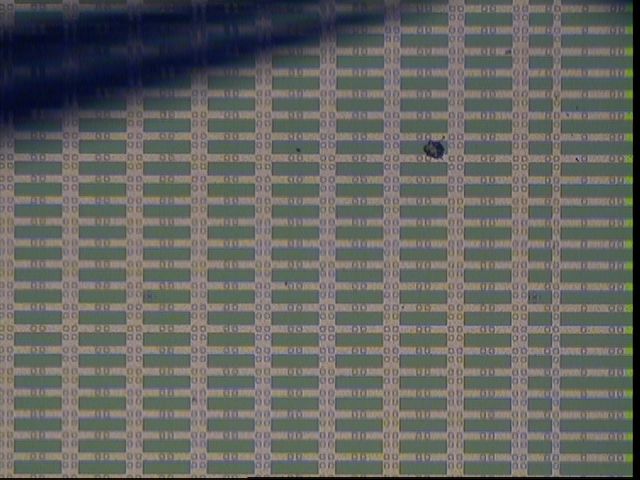

Picture | Comment |

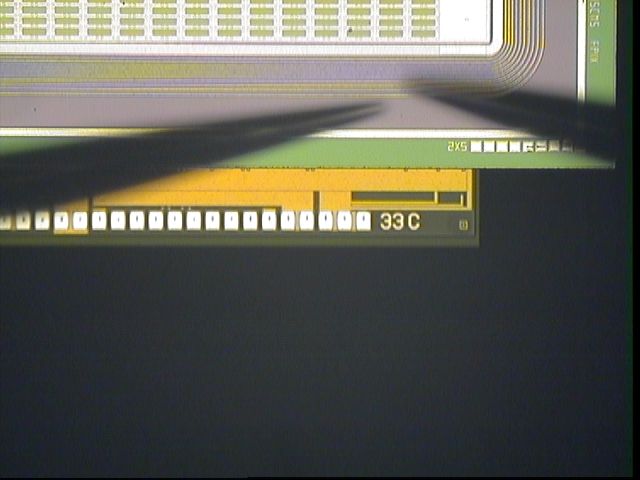

| ROC4 was labeled as 33D by RTI and instead it is 33C. (note 33D is already used in the same plaquette. IS RTI LOOSING CONTROL? |
| smudge on ROC0 |
| lots of spots in center of ROC1 |
| lots of spots on ROC2 |
| scratch on GR of ROC3 |
| 2 large smudges on ROC4 |
| lots of spots on ROC7 |
| lots of spots on ROC7 |
| large cluster of dirt deposition on ROC8 (high rows) |

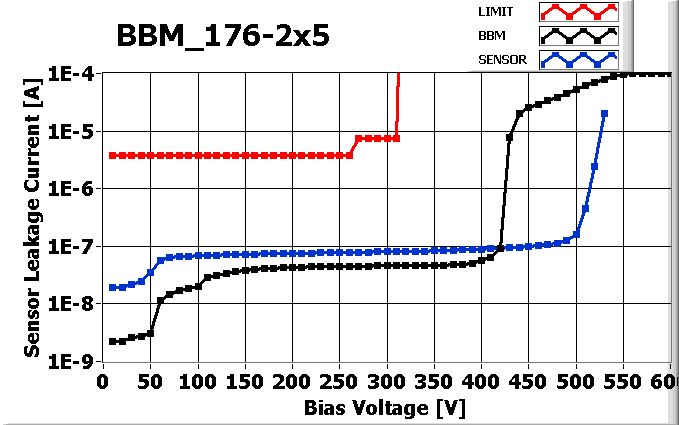

IV Measured by Bolla Gino on date 5/9/2007
DEVICE ready for Plaquette assembly
