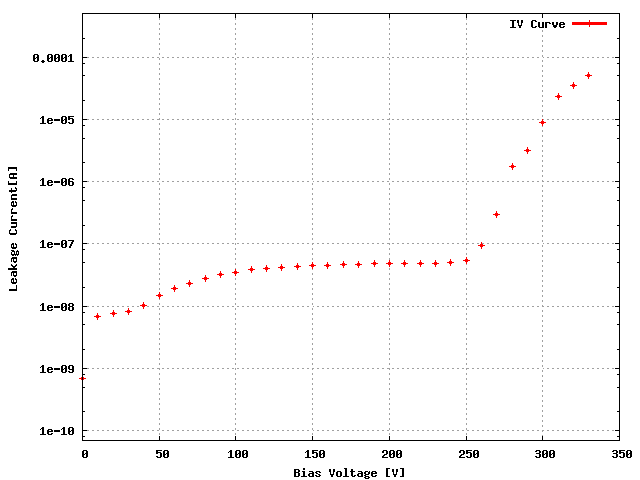

Sensor: S_2x5_176, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KFNG13T	23C
ROC1	KFNG13T	03B
ROC2	KFNG13T	13C
ROC3	KFNG13T	13D
ROC4	KFNG13T	33C
ROC5	KFNG13T	33B
ROC6	KFNG13T	33D
ROC7	KFNG13T	43A
ROC8	KFNG13T	74A
ROC9	KFNG13T	13B

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	166	156	164	138	158	158	144	154	162	162
Vana, VanaData	127	138	137	111	146	138	144	131	119	128
CalDelData and plots	75	75	85	83	73	75	68	78	97	64
VthrCompData and plots	86	72	83	76	83	72	88	76	80	90
TestDdata ,TestD Plots	0	1	0	0	1	0	0	1	1	0
LightData ,Light Plots	0	1	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

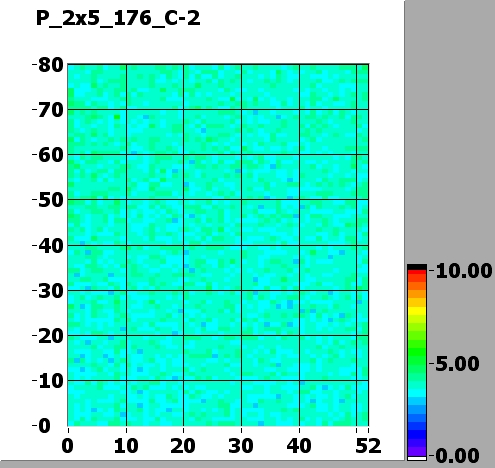

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

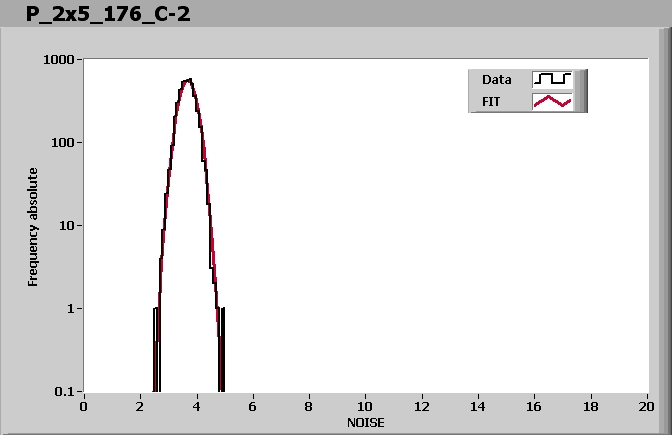

ROC0 NOISE			MEAN = 3.672211 SIGMA = 0.290219
ROC1 NOISE			MEAN = 4.227674 SIGMA = 0.341568
ROC2 NOISE			MEAN = 3.689313 SIGMA = 0.297929

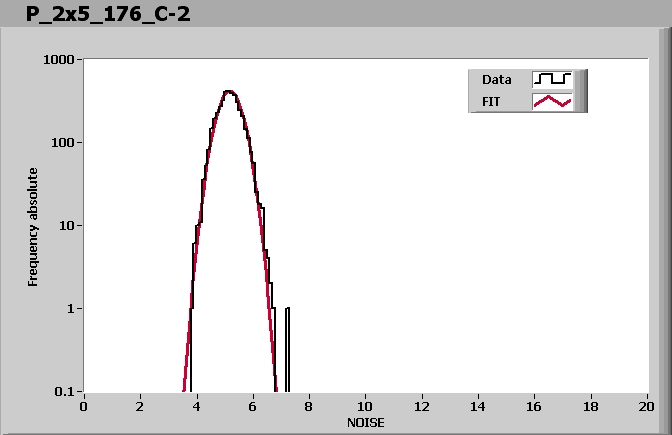

ROC3 NOISE			MEAN = 5.170414 SIGMA = 0.401896
ROC4 NOISE			MEAN = 3.879064 SIGMA = 0.326134
ROC5 NOISE			MEAN = 3.846107 SIGMA = 0.321379
ROC6 NOISE			MEAN = 4.194702 SIGMA = 0.337132
ROC7 NOISE			MEAN = 4.515918 SIGMA = 0.349869
ROC8 NOISE			MEAN = 4.708909 SIGMA = 0.379776
ROC9 NOISE			MEAN = 3.952650 SIGMA = 0.307947

Comment (if any): BAD IV otherwise great

P_2x5_176_C-1.html,

P_2x5_176_C.html,

End testing time: 9:24 AM
