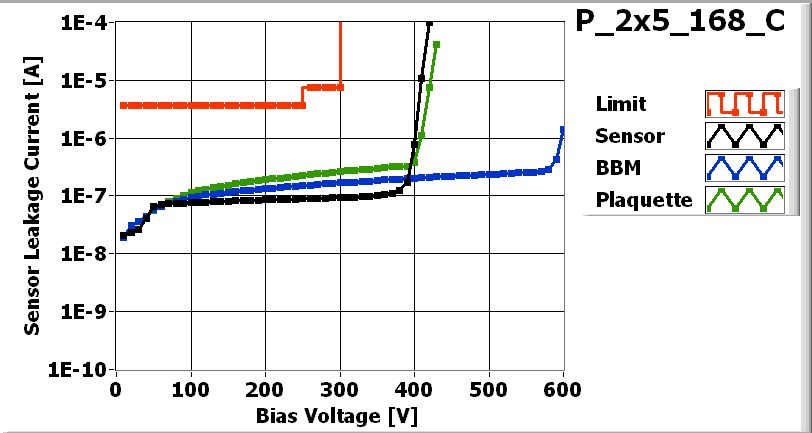

![[IMAGE] of](P_2x5_168_C_IV.jpg)
| IV_XML-File |
| Maximum Voltage 430 V |

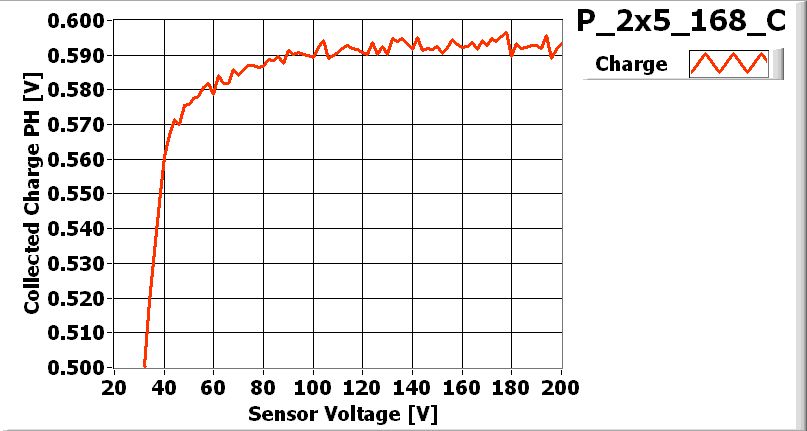

![[IMAGE] of](P_2x5_168_C_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 8/20/2007
| Part | ID |
|---|---|
| BBM | BBM_168-2x5 |
| VHDI | 2x5_629 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KBNG0QT | 73D |
| ROC1 | KBNG0QT | 14C |
| ROC2 | KBNG0QT | 04B |
| ROC3 | KBNG0QT | 63A |
| ROC4 | KFNG13T | 22D |
| ROC5 | KBNG0QT | 53B |
| ROC6 | KBNG0QT | 04D |
| ROC7 | KBNG0QT | 53C |
| ROC8 | KBNG0QT | 04C |
| ROC9 | KBNG0QT | 15B |
This plaquette was reworked. Old results here
Inspected by Lockwood Gale on date 8/21/2007
| LR_dev | 0.042 |
| LL_dev | 0.014 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. ROC 8, ch 1, ROc 4, Ch 35, ROC 6, CH 1 No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 8/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 8/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 8/21/2007 by Ozhan Koybasi
P_2x5_168_Con 8/22/2007 11:08 AM
P_2x5_168_C-1on 8/22/2007 12:04 PM
P_2x5_168_C-2on 8/22/2007 12:05 PM
P_2x5_168_C-2on 8/22/2007 12:05 PM
PLAQUETTE TESTED on 2007-08-22 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 150 | 172 | 160 | 156 | 150 | 162 | 170 | 168 | 164 | 170 | |
| Vana | 127 | 140 | 130 | 140 | 127 | 130 | 145 | 150 | 141 | 149 | |
| Cal_Del | 86 | 74 | 68 | 83 | 72 | 71 | 84 | 69 | 69 | 77 | |
| Vthrs_Comp | 74 | 82 | 83 | 77 | 82 | 89 | 79 | 89 | 83 | 84 | |
| Unbumped | 159 | 1 | 30 | 7 | 0 | 2 | 7 | 2 | 0 | 0 | |
| Dead | 4 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 2 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 163 | 1 | 30 | 7 | 0 | 2 | 7 | 2 | 2 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_168_C_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

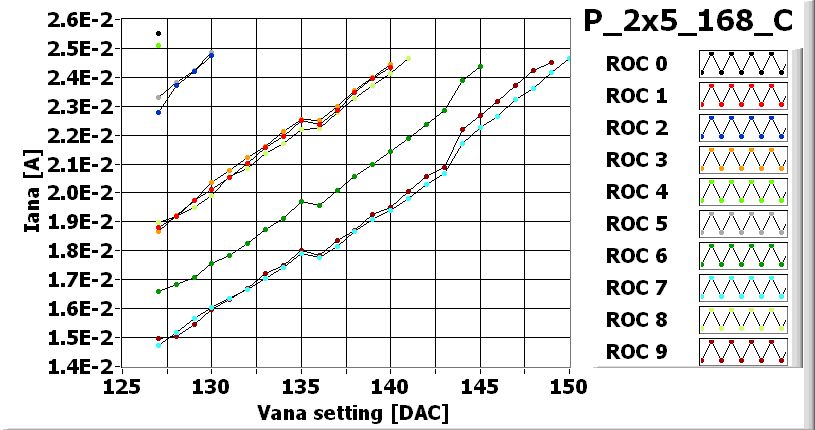

![[IMAGE] of](P_2x5_168_C_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_168_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_168_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_168_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |

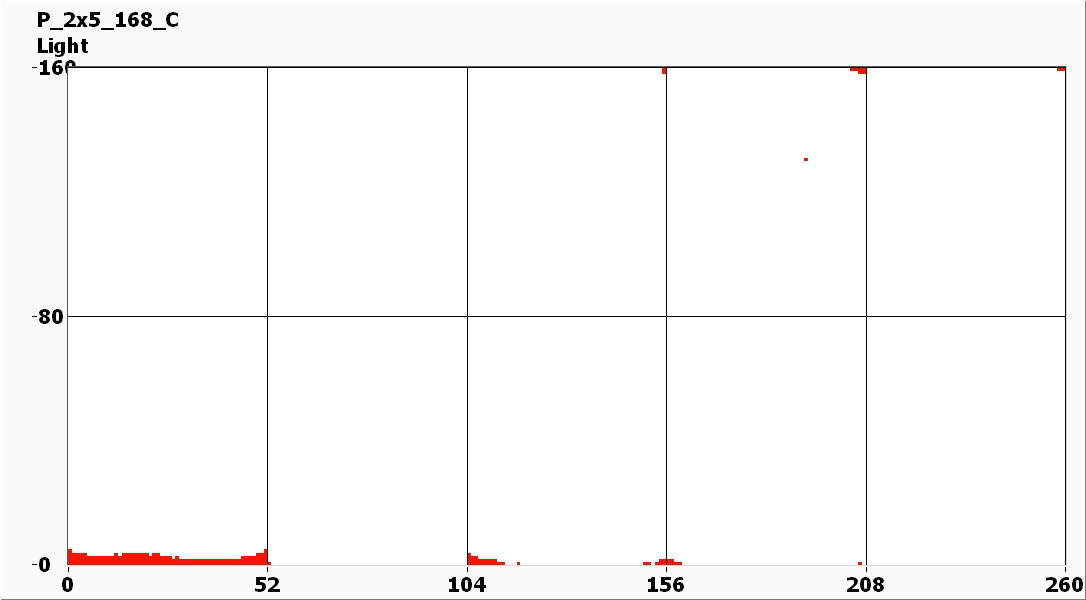

![[IMAGE] of](P_2x5_168_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 140 | 100 | 120 | 100 | 120 | 105 | 95 | 95 | 100 | 95 |
| Vsf | 135 | 135 | 135 | 140 | 140 | 145 | 150 | 150 | 145 | 145 |
| VoffsetOp | 90 | 105 | 100 | 75 | 70 | 95 | 100 | 105 | 100 | 95 |
| VIbias_PH | 95 | 100 | 105 | 100 | 105 | 105 | 100 | 100 | 95 | 100 |

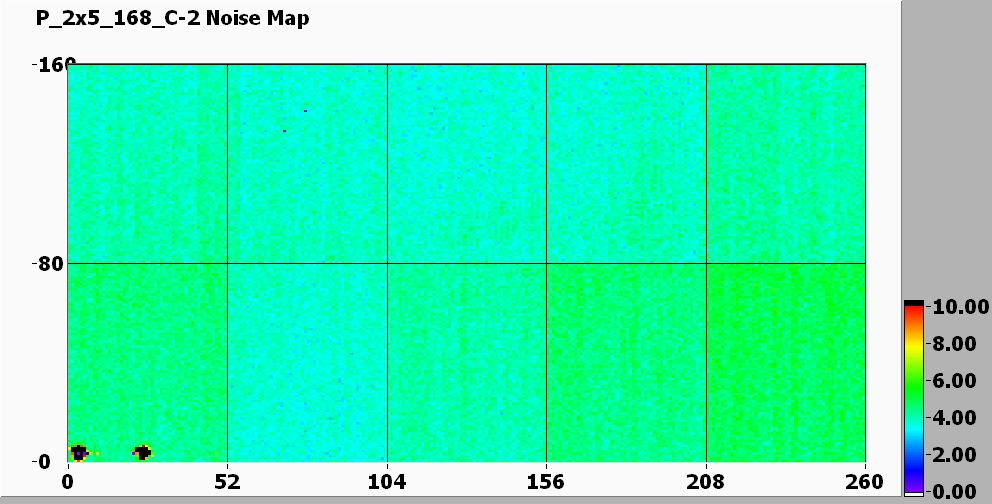

Noise MAP at VMAX
![[IMAGE] of](P_2x5_168_C-2-410-noise.jpg)

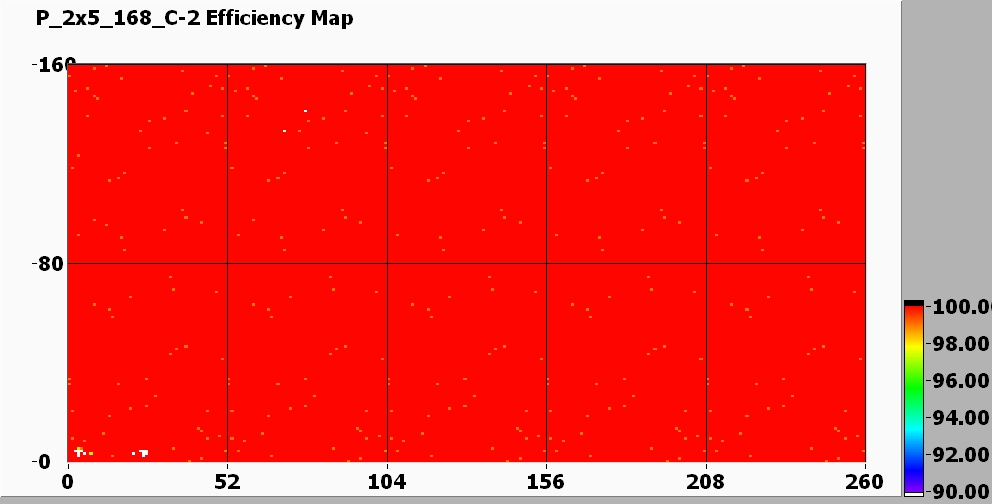

Efficiency MAP
![[IMAGE] of](P_2x5_168_C-2-410-efficiency.jpg)

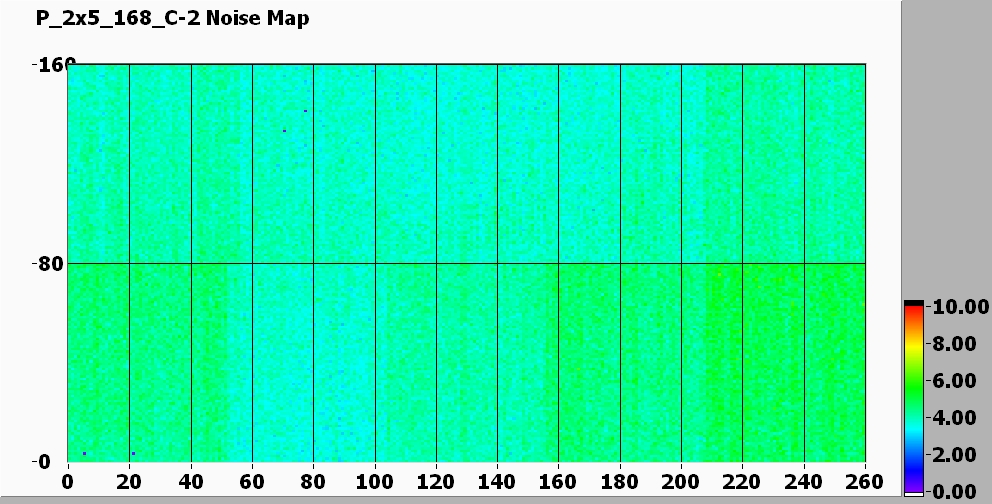

Noise MAP at -200 V
![[IMAGE] of](P_2x5_168_C-2-200-noise.jpg)

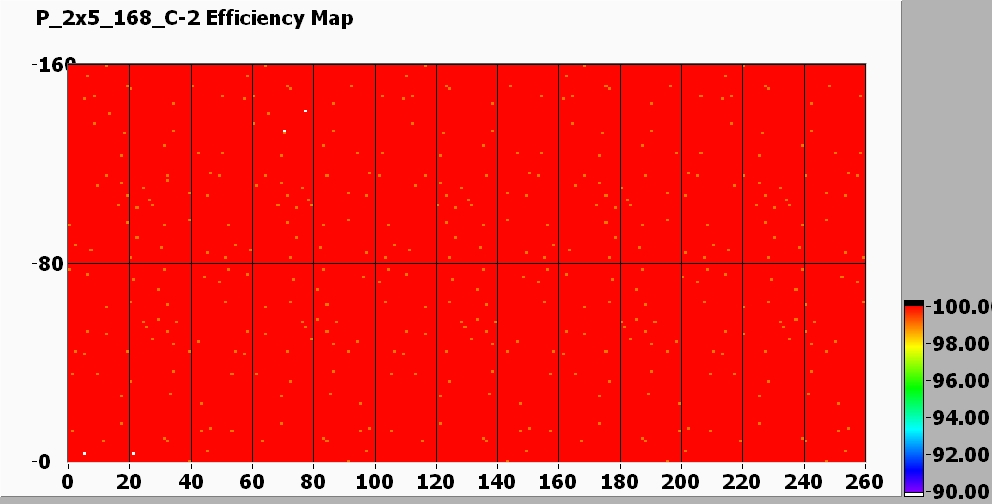

Efficiency MAP
![[IMAGE] of](P_2x5_168_C-2-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
