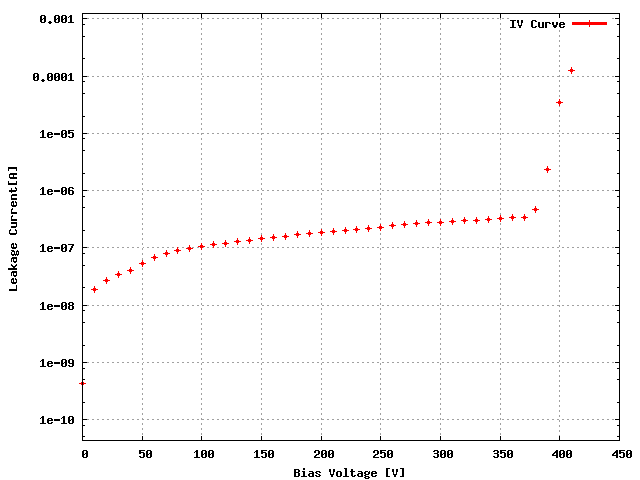

Sensor: S_2x5_168, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KBNG0QT | 73D |
| ROC1 | KBNG0QT | 14C |
| ROC2 | KBNG0QT | 04B |
| ROC3 | KBNG0QT | 63A |
| ROC4 | KFNG13T | 22D |
| ROC5 | KBNG0QT | 53B |
| ROC6 | KBNG0QT | 04D |
| ROC7 | KBNG0QT | 53C |
| ROC8 | KBNG0QT | 04C |
| ROC9 | KBNG0QT | 15B |
This plaquette was reworked. Old results here
Inspected by Lockwood Gale on date 8/21/2007
| LR_dev | 0.042 |
| LL_dev | 0.014 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Assembled at HALF-PRESSURE. No assembly problems. ROC 8, ch 1, ROc 4, Ch 35, ROC 6, CH 1 No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 8/21/2007 by Lockwood Gale
PLAQUETTE encapsulated on 8/21/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 8/21/2007 by Ozhan Koybasi
P_2x5_168_Con 8/22/2007 11:08 AM
| Ibias_DAC, Ibias_DAC Data | 150 | 174 | 160 | 158 | 150 | 164 | 170 | 170 | 164 | 170 |
| Vana, VanaData | 127 | 141 | 130 | 141 | 127 | 130 | 145 | 151 | 141 | 149 |
| CalDelData and plots | 87 | 74 | 69 | 83 | 72 | 71 | 84 | 69 | 69 | 77 |
| VthrCompData and plots | 75 | 82 | 83 | 77 | 82 | 89 | 78 | 89 | 82 | 84 | Depletion Voltage is -46 and suggested operational voltage is -86
| TestDdata ,TestD Plots | 91 | 0 | 3 | 2 | 0 | 0 | 2 | 0 | 7 | 0 |
