P_2x5_168

P_2x5_168_C-2

Production testing

Date:8/22/2007

Operator: Gino Bolla

start testing time:12:05 PM

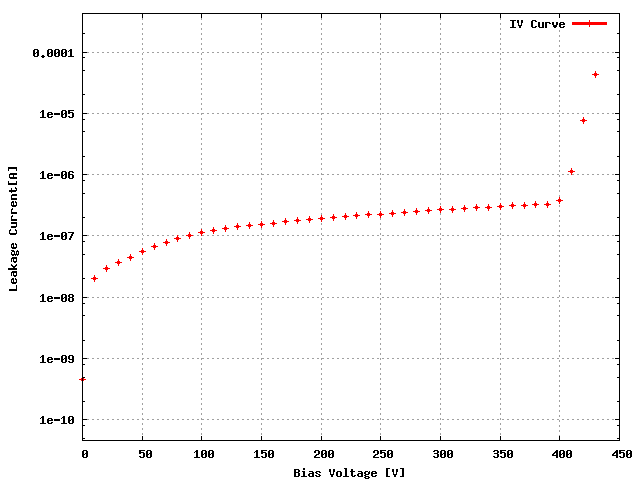

Sensor: S_2x5_168, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 KBNG0QT 73D

ROC1 KBNG0QT 14C

ROC2 KBNG0QT 04B

ROC3 KBNG0QT 63A

ROC4 KFNG13T 22D

ROC5 KBNG0QT 53B

ROC6 KBNG0QT 04D

ROC7 KBNG0QT 53C

ROC8 KBNG0QT 04C

ROC9 KBNG0QT 15B

ROC	ROC wafer	Label
ROC0	KBNG0QT	73D
ROC1	KBNG0QT	14C
ROC2	KBNG0QT	04B
ROC3	KBNG0QT	63A
ROC4	KFNG13T	22D
ROC5	KBNG0QT	53B
ROC6	KBNG0QT	04D
ROC7	KBNG0QT	53C
ROC8	KBNG0QT	04C
ROC9	KBNG0QT	15B

This plaquette was reworked. Old results here

Inspected by Lockwood Gale on date 8/21/2007

LR_dev 0.042

LL_dev 0.014

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Assembled at HALF-PRESSURE. No assembly problems. ROC 8, ch 1, ROc 4, Ch 35, ROC 6, CH 1 No wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 8/21/2007 by Lockwood Gale

PLAQUETTE encapsulated on 8/21/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 8/21/2007 by Ozhan Koybasi

P_2x5_168_Con 8/22/2007 11:08 AM

P_2x5_168_C-1on 8/22/2007 12:04 PM

P_2x5_168_C-2on 8/22/2007 12:05 PM

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	150	172	160	156	150	162	170	168	164	170
Vana, VanaData	127	140	130	140	127	130	145	150	141	149
CalDelData and plots	86	74	68	83	72	71	84	69	69	77
VthrCompData and plots	74	82	83	77	82	89	79	89	83	84
TestDdata ,TestD Plots	142	0	13	2	0	0	2	0	72	0
LightData ,Light Plots	159	1	30	7	0	2	7	2	0	0
Pass/Fail TestD	BAD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	BAD	GOOD
Pass/Fail LIGHT	BAD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

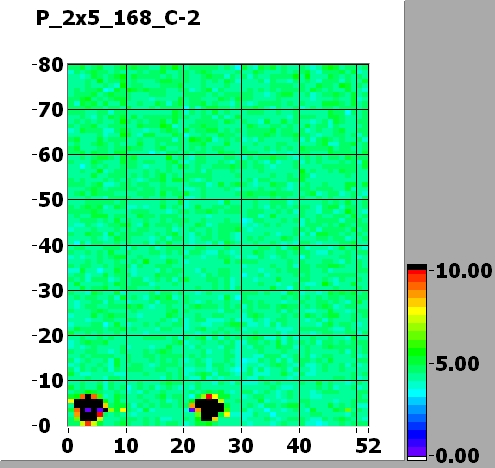

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	140	100	120	100	120	105	95	95	100	95
Vsf	135	135	135	140	140	145	150	150	145	145
VoffsetOp	90	105	100	75	70	95	100	105	100	95
VIbias_PH	95	100	105	100	105	105	100	100	95	100

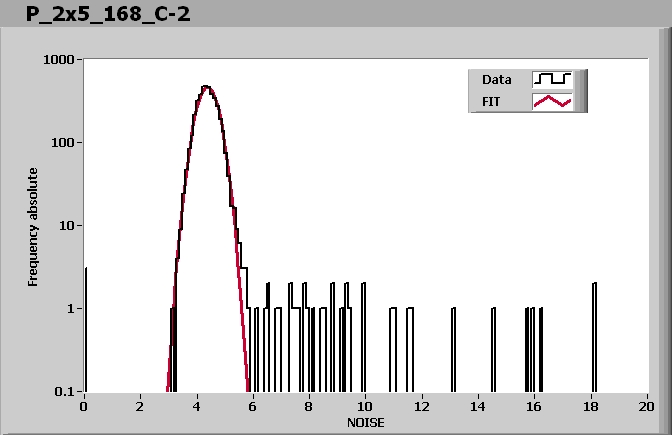

ROC0 NOISE			MEAN = 4.375553 SIGMA = 0.345668
ROC1 NOISE			MEAN = 3.727602 SIGMA = 0.300601

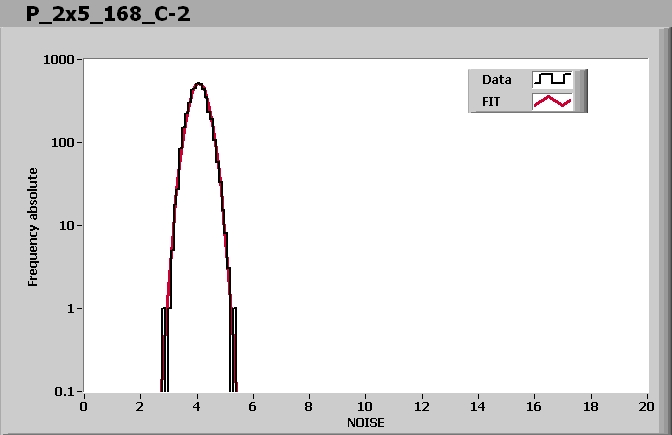

ROC2 NOISE			MEAN = 4.068798 SIGMA = 0.321016

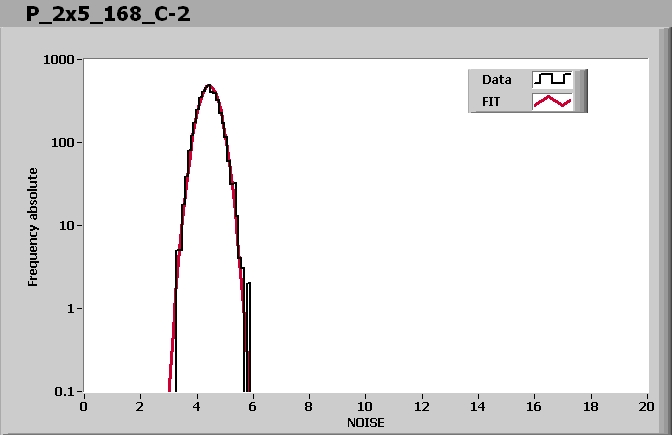

ROC3 NOISE			MEAN = 4.432623 SIGMA = 0.347564

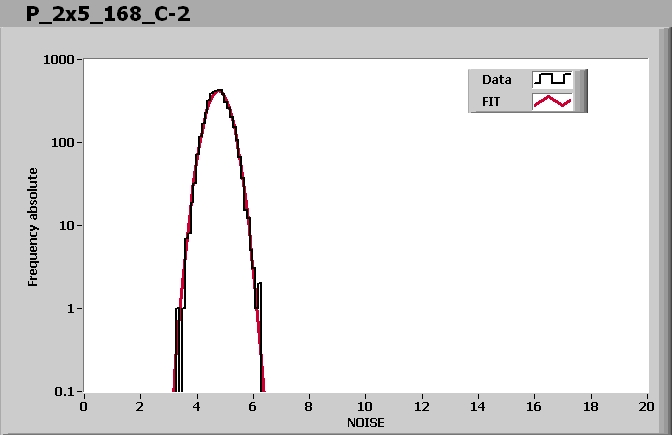

ROC4 NOISE			MEAN = 4.766197 SIGMA = 0.391959

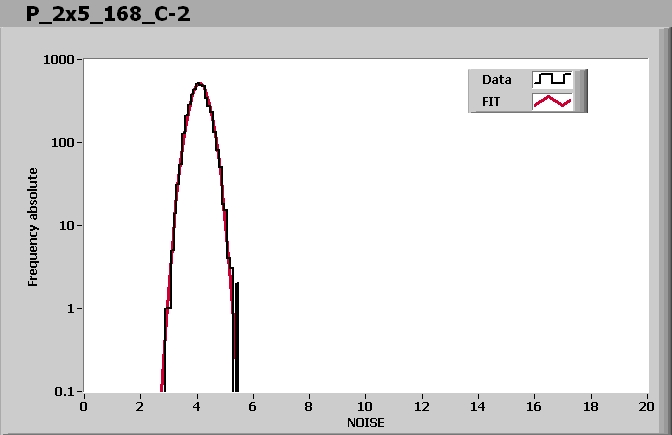

ROC5 NOISE			MEAN = 4.100292 SIGMA = 0.326850

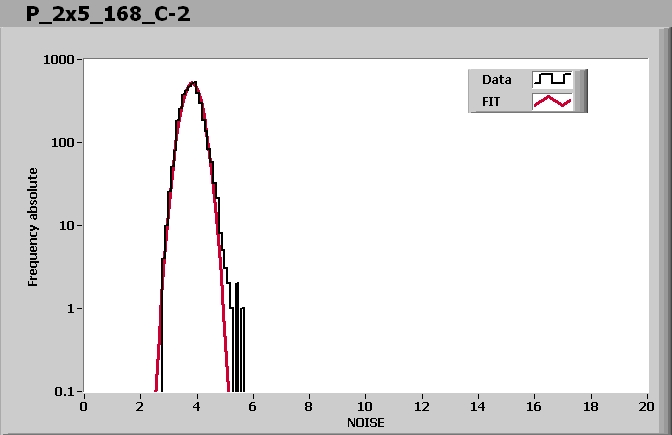

ROC6 NOISE			MEAN = 3.826390 SIGMA = 0.312936

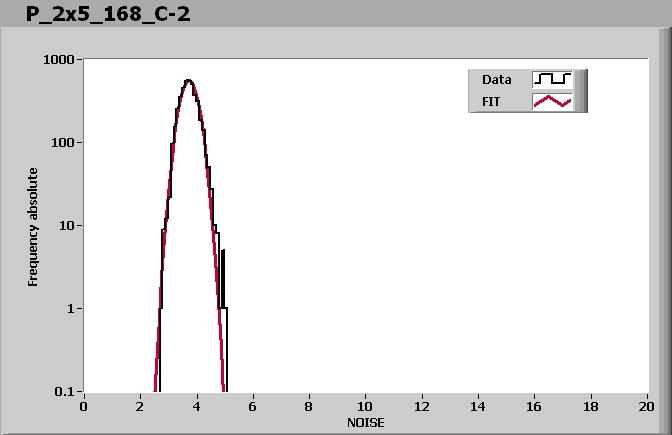

ROC7 NOISE			MEAN = 3.720041 SIGMA = 0.293579
ROC8 NOISE			MEAN = 3.815590 SIGMA = 0.326131
ROC9 NOISE			MEAN = 3.985076 SIGMA = 0.341412

Comment (if any):

This Device have been tested 2Times prior to this one and here are the links to the previous tests:

P_2x5_168_C-1.html,

P_2x5_168_C.html,

End testing time: 12:59 PM
