| IV_XML-File |

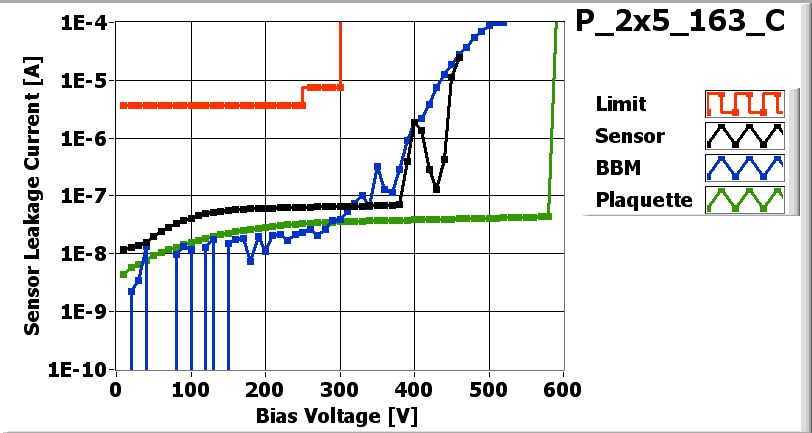

| Maximum Voltage 590 V |
![[IMAGE] of](P_2x5_163_C_LASER.jpg)
| LASER_XML-File |

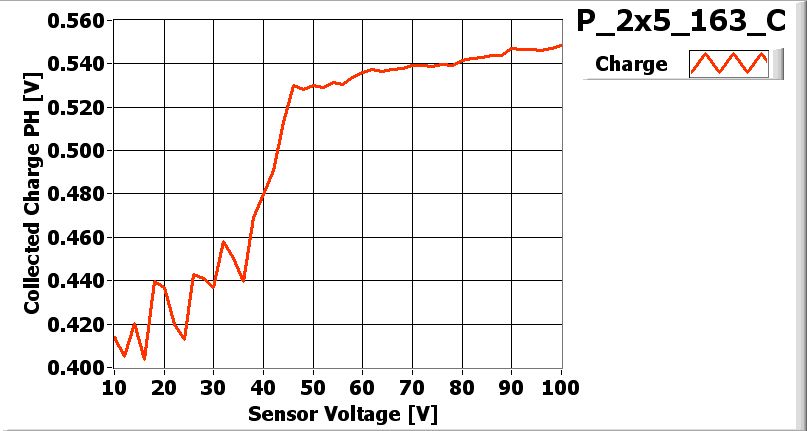

| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Arndt Kirk on date 5/1/2007
| Part | ID |
|---|---|
| BBM | BBM_163-2x5 |
| VHDI | 2x5_308 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | KFNG13T | 49D |
| ROC1 | KFNG13T | 49B |
| ROC2 | KFNG13T | 18A |
| ROC3 | KFNG13T | 39B |
| ROC4 | KFNG13T | 39D |
| ROC5 | KFNG13T | 29D |
| ROC6 | KFNG13T | 29C |
| ROC7 | KFNG13T | 29A |
| ROC8 | KFNG13T | 49A |
| ROC9 | KFNG13T | 29B |
Inspected by Arndt Kirk on date 5/7/2007
| LR_dev | 0.052 |
| LL_dev | 0.055 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Arndt Kirk | Assembled at HALF-PRESSURE. No assembly problems. No wirebond problems. |
PLAQUETTE made READY for ENCAPSULATION on 5/7/2007 by Arndt Kirk
PLAQUETTE encapsulated on 5/8/2007 by Arndt Kirk
PLAQUETTE made READY for testing on 5/8/2007 by Arndt Kirk
P_2x5_163_Con 5/8/2007 10:11 AM
P_2x5_163_C-1on 5/8/2007 11:02 AM
P_2x5_163_C-1on 5/8/2007 11:02 AM
PLAQUETTE TESTED on 2007-05-08 by Mia Tosi
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 154 | 128 | 138 | 142 | 134 | 134 | 148 | 144 | 144 | 144 | |
| Vana | 138 | 138 | 139 | 137 | 139 | 112 | 139 | 137 | 140 | 126 | |
| Cal_Del | 76 | 81 | 72 | 77 | 97 | 91 | 72 | 80 | 80 | 75 | |
| Vthrs_Comp | 88 | 75 | 86 | 76 | 71 | 79 | 77 | 76 | 82 | 85 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 1 | 2 | 0 | 1 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 1 | 2 | 0 | 1 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_163_C_Ibias-dac.jpg) |

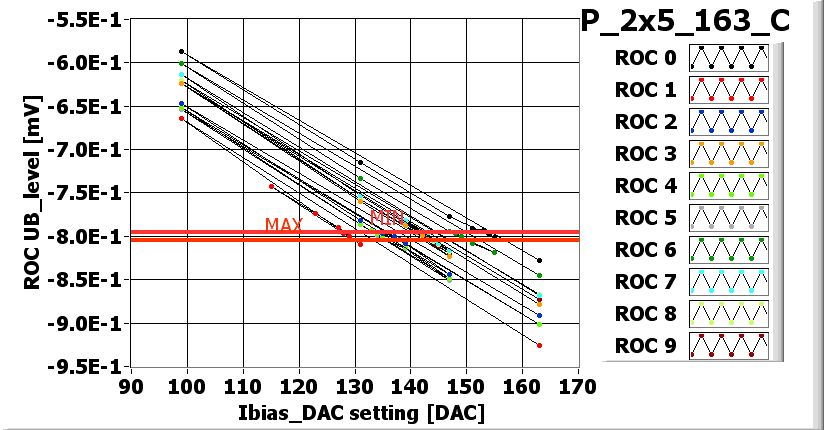

I_BIAS_DAC_XML-File |
![[IMAGE] of](P_2x5_163_C_Vana.jpg) |

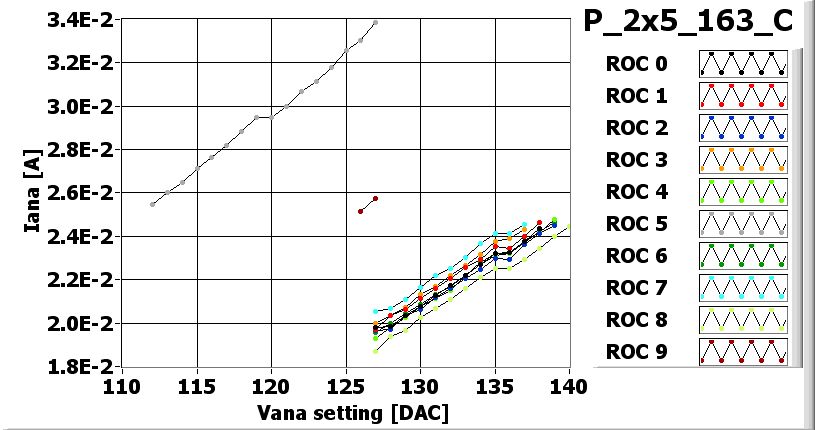

VANA_XML-File |
![[IMAGE] of](P_2x5_163_CDead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_163_CNoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_163_CUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_163_Cno-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 100 | 120 | 95 | 105 | 85 | 180 | 110 | 90 | 95 | 120 |
| Vsf | 140 | 145 | 140 | 140 | 145 | 135 | 140 | 140 | 145 | 140 |
| VoffsetOp | 110 | 65 | 100 | 80 | 80 | 65 | 95 | 85 | 105 | 70 |
| VIbias_PH | 100 | 100 | 100 | 105 | 100 | 105 | 95 | 100 | 100 | 95 |
Noise MAP
![[IMAGE] of](P_2x5_163_C-1-570-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_163_C-1-570-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
