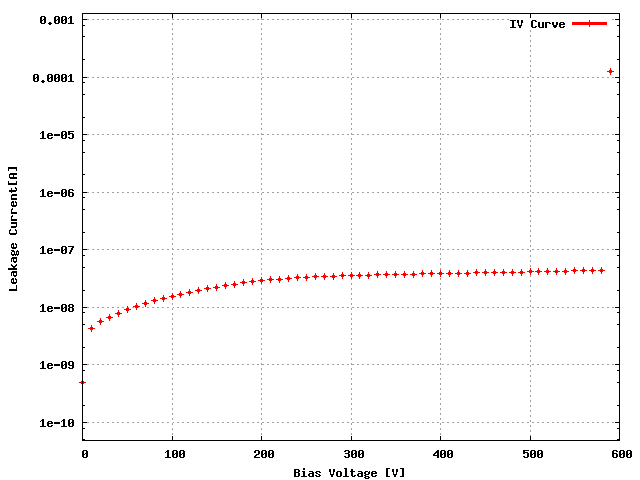

Sensor: S_2x5_163, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	KFNG13T	49D
ROC1	KFNG13T	49B
ROC2	KFNG13T	18A
ROC3	KFNG13T	39B
ROC4	KFNG13T	39D
ROC5	KFNG13T	29D
ROC6	KFNG13T	29C
ROC7	KFNG13T	29A
ROC8	KFNG13T	49A
ROC9	KFNG13T	29B

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	154	128	138	142	134	134	148	144	144	144
Vana, VanaData	138	138	139	137	139	112	139	137	140	126
CalDelData and plots	76	81	72	77	97	91	72	80	80	75
VthrCompData and plots	88	75	86	76	71	79	77	76	82	85
TestDdata ,TestD Plots	0	0	1	0	0	1	2	0	1	0
LightData ,Light Plots	0	0	0	0	0	1	2	0	1	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

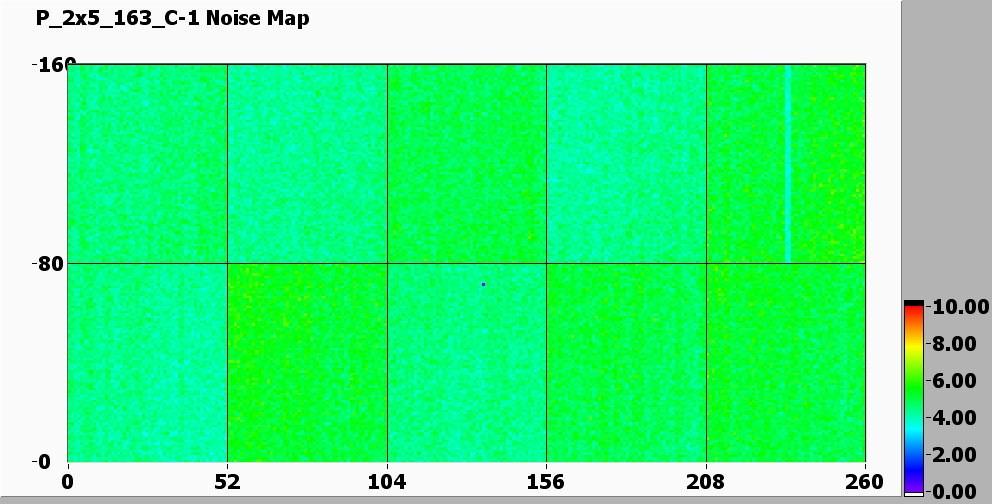

Noise MAP

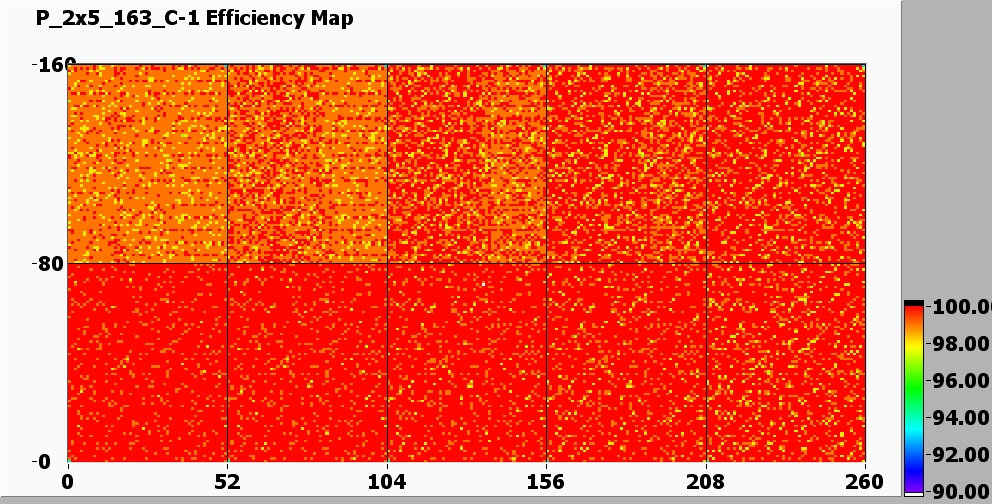

Efficiency MAP

EXTRA DACs for NOISE

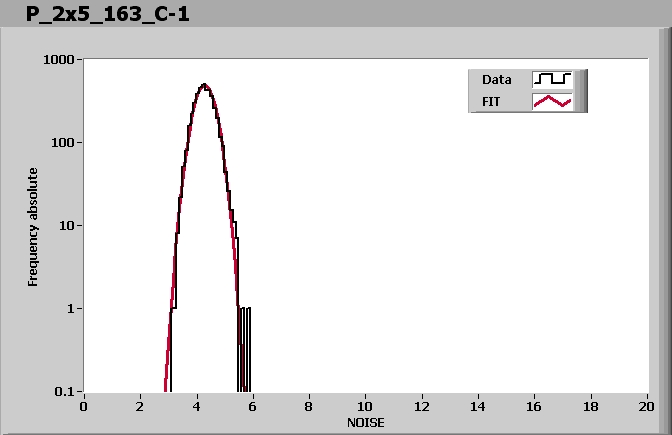

ROC0 NOISE			MEAN = 4.274915 SIGMA = 0.340545

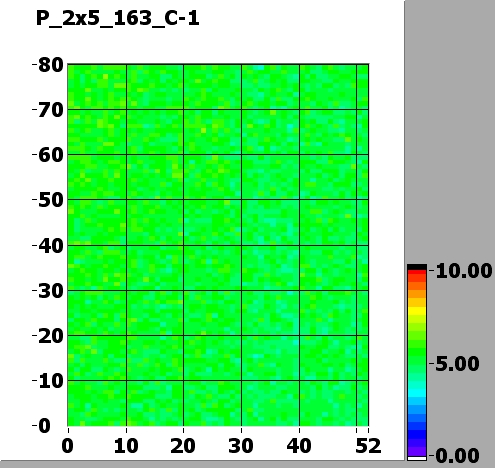

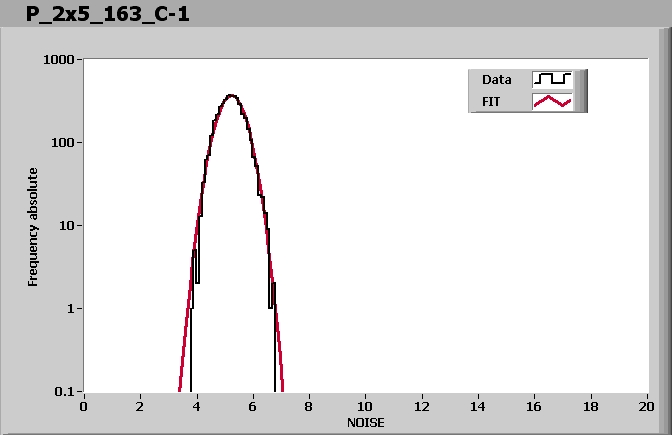

ROC1 NOISE			MEAN = 5.225032 SIGMA = 0.453505
ROC2 NOISE			MEAN = 4.435084 SIGMA = 0.335994
ROC3 NOISE			MEAN = 4.918643 SIGMA = 0.416526
ROC4 NOISE			MEAN = 5.076851 SIGMA = 0.396217

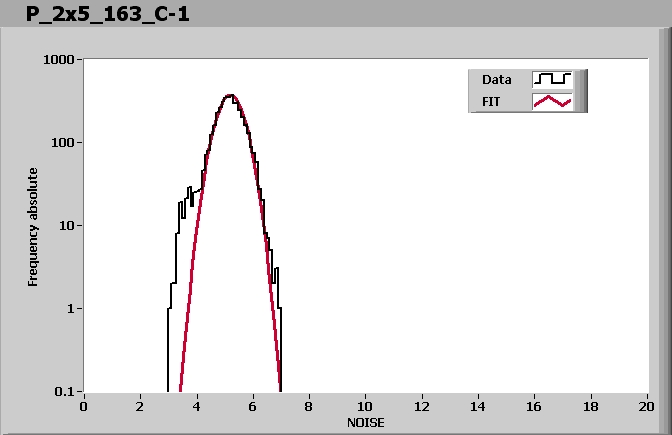

ROC5 NOISE			MEAN = 5.186590 SIGMA = 0.437852
ROC6 NOISE			MEAN = 4.306428 SIGMA = 0.349409

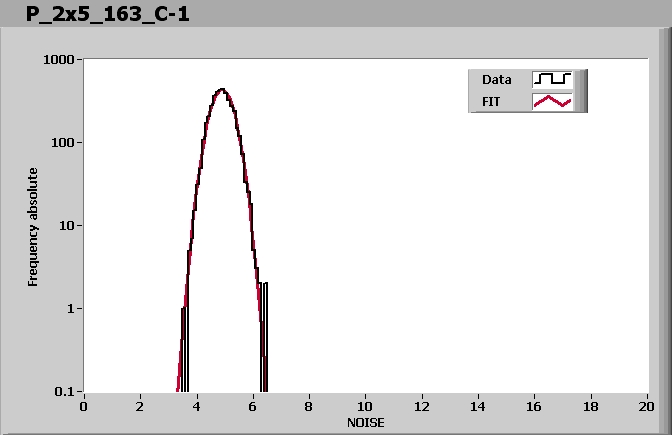

ROC7 NOISE			MEAN = 4.893583 SIGMA = 0.382854
ROC8 NOISE			MEAN = 4.322870 SIGMA = 0.336414
ROC9 NOISE			MEAN = 4.512770 SIGMA = 0.366626

Comment (if any): good

P_2x5_163_C.html,

End testing time: 11:26 AM
