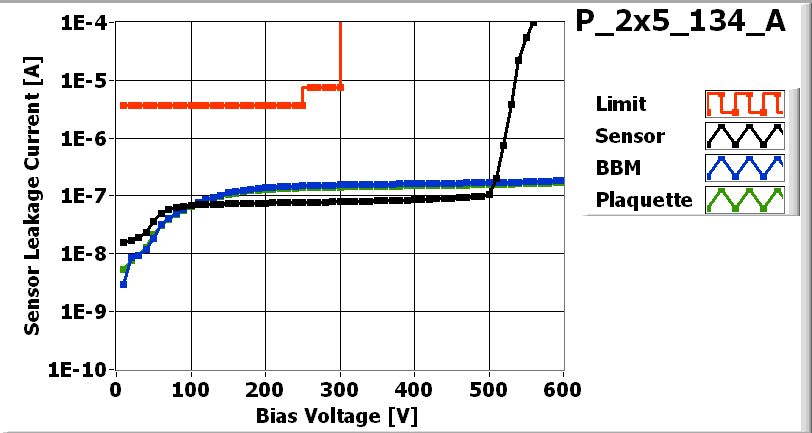

| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_134_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 50 V |
| Operational Voltage 90 V |
Parts committed by Bolla Gino on date 3/21/2007
| Part | ID |
|---|---|
| BBM | BBM_134-2x5 |
| VHDI | 2x5_400 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K5HT | 36C |
| ROC1 | W35_XH4K5HT | 36B |
| ROC2 | W35_XH4K5HT | 35D |
| ROC3 | W35_XH4K5HT | 35C |
| ROC4 | W35_XH4K5HT | 35A |
| ROC5 | W35_XH4K5HT | 41B |
| ROC6 | W35_XH4K5HT | 42A |
| ROC7 | W35_XH4K5HT | 42B |
| ROC8 | W35_XH4K5HT | 42C |
| ROC9 | W35_XH4K5HT | 43A |
Inspected by Lockwood Gale on date 3/27/2007
| LR_dev | 0.070 |
| LL_dev | 0.076 |
| FINAL COMMENT by Lockwood Gale | No assembly problems. No wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 3/27/2007 by Lockwood Gale
PLAQUETTE encapsulated on 3/28/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/28/2007 by Ozhan Koybasi
P_2x5_134_Aon 3/30/2007 2:26 PM
P_2x5_134_A-1on 3/30/2007 2:33 PM
P_2x5_134_A-1on 3/30/2007 2:33 PM
PLAQUETTE TESTED on 2007-03-30 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 134 | 138 | 132 | 134 | 138 | 144 | 136 | 146 | 144 | 136 | |
| Vana | 127 | 139 | 120 | 115 | 128 | 129 | 123 | 130 | 124 | 125 | |
| Cal_Del | 92 | 84 | 96 | 81 | 80 | 71 | 83 | 71 | 90 | 83 | |
| Vthrs_Comp | 73 | 77 | 61 | 73 | 86 | 85 | 80 | 68 | 64 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 7 | 0 | 0 | 0 | 0 | 2 | 0 | 0 | 1 | 2 | |
| Noisy | 0 | 0 | 0 | 4 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 7 | 0 | 0 | 4 | 0 | 2 | 0 | 0 | 1 | 2 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

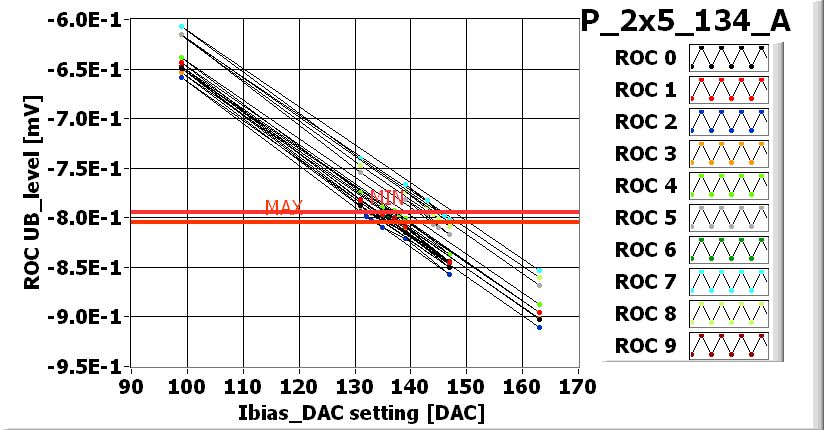

![[IMAGE] of](P_2x5_134_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

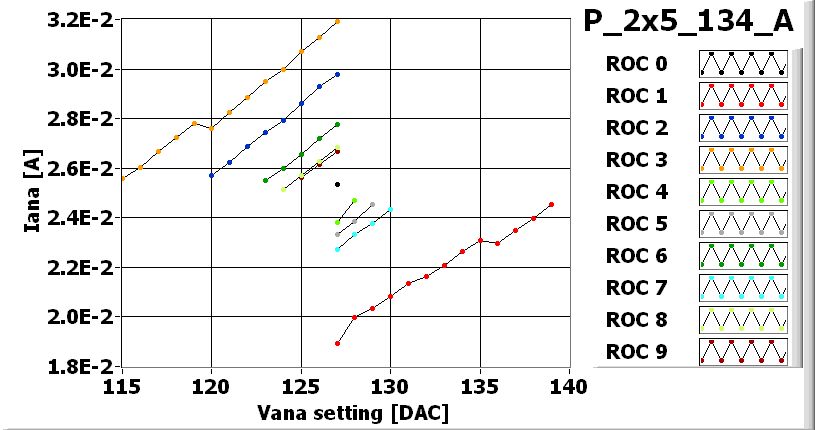

![[IMAGE] of](P_2x5_134_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_134_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_134_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_134_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_134_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 145 | 110 | 115 | 160 | 125 | 140 | 145 | 105 | 110 | 115 |
| Vsf | 140 | 140 | 140 | 135 | 140 | 145 | 140 | 140 | 140 | 140 |
| VoffsetOp | 70 | 80 | 50 | 80 | 75 | 85 | 90 | 85 | 65 | 65 |
| VIbias_PH | 95 | 95 | 105 | 100 | 100 | 100 | 100 | 100 | 100 | 100 |
Noise MAP
![[IMAGE] of](P_2x5_134_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_134_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
