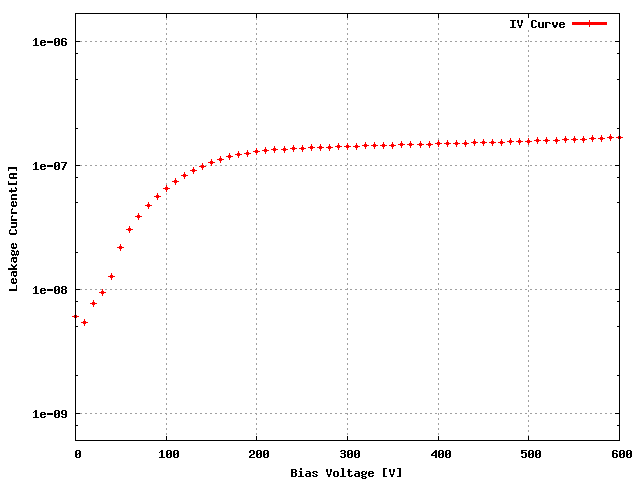

Sensor: S_2x5_134, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W35_XH4K5HT	36C
ROC1	W35_XH4K5HT	36B
ROC2	W35_XH4K5HT	35D
ROC3	W35_XH4K5HT	35C
ROC4	W35_XH4K5HT	35A
ROC5	W35_XH4K5HT	41B
ROC6	W35_XH4K5HT	42A
ROC7	W35_XH4K5HT	42B
ROC8	W35_XH4K5HT	42C
ROC9	W35_XH4K5HT	43A

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	134	138	132	134	138	144	136	146	144	136
Vana, VanaData	127	139	120	115	128	129	123	130	124	125
CalDelData and plots	92	84	96	81	80	71	83	71	90	83
VthrCompData and plots	73	77	61	73	86	85	80	68	64	77
TestDdata ,TestD Plots	86	0	0	4	1	433	484	725	868	1254
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	BAD	GOOD	GOOD	GOOD	GOOD	BAD	BAD	BAD	BAD	BAD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

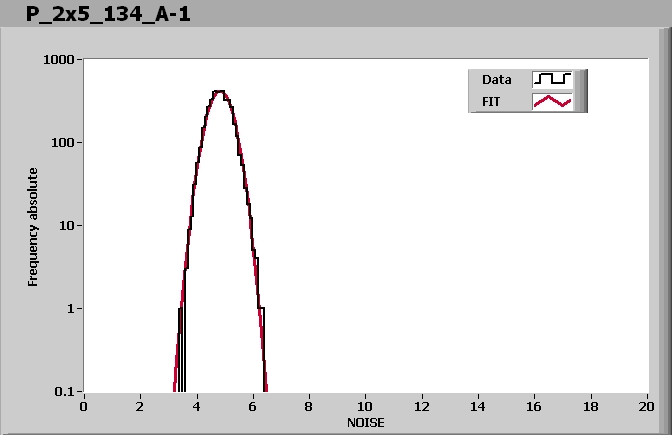

ROC0 NOISE			MEAN = 4.826639 SIGMA = 0.398602
ROC1 NOISE			MEAN = 4.426908 SIGMA = 0.353728

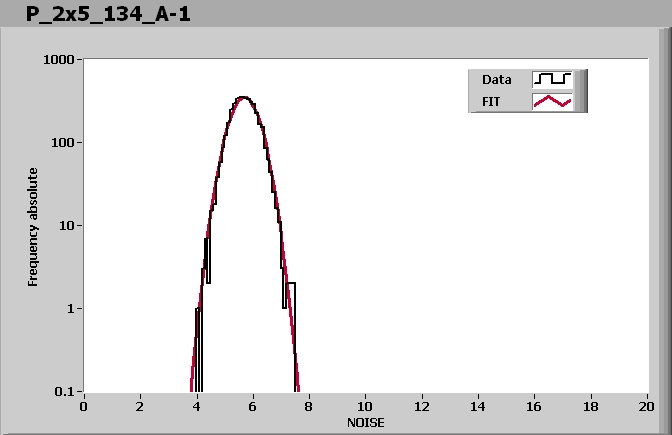

ROC2 NOISE			MEAN = 5.689588 SIGMA = 0.471943
ROC3 NOISE			MEAN = 4.600030 SIGMA = 0.364098
ROC4 NOISE			MEAN = 4.859549 SIGMA = 0.376005
ROC5 NOISE			MEAN = 4.770141 SIGMA = 0.374692
ROC6 NOISE			MEAN = 4.647418 SIGMA = 0.371846
ROC7 NOISE			MEAN = 4.578491 SIGMA = 0.355691

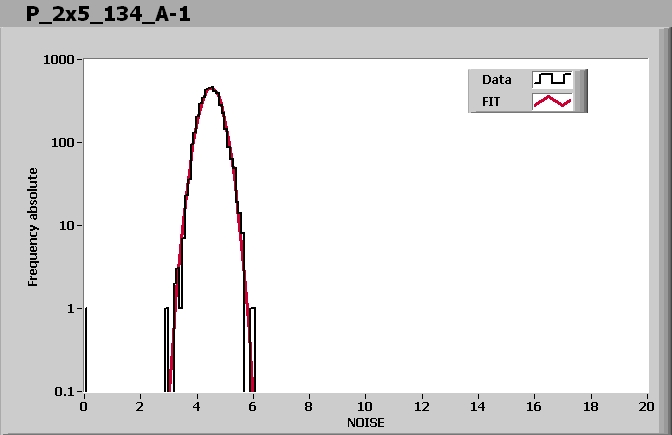

ROC8 NOISE			MEAN = 4.506818 SIGMA = 0.364308
ROC9 NOISE			MEAN = 4.880332 SIGMA = 0.400871

Comment (if any): GOOD

P_2x5_134_A.html,

End testing time: 2:55 PM
