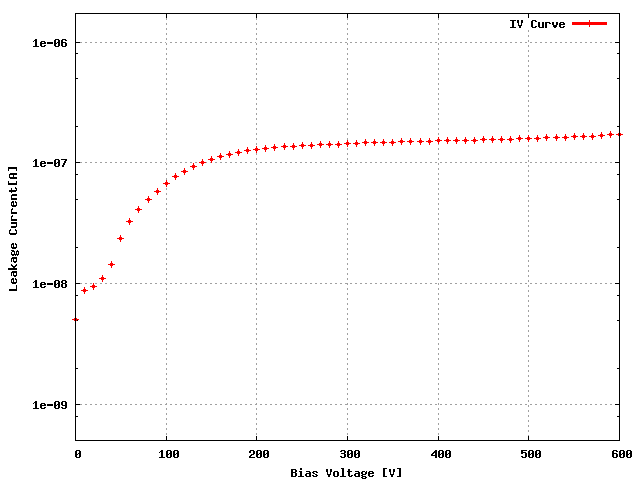

Sensor: S_2x5_134, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W35_XH4K5HT | 36C |
| ROC1 | W35_XH4K5HT | 36B |
| ROC2 | W35_XH4K5HT | 35D |
| ROC3 | W35_XH4K5HT | 35C |
| ROC4 | W35_XH4K5HT | 35A |
| ROC5 | W35_XH4K5HT | 41B |
| ROC6 | W35_XH4K5HT | 42A |
| ROC7 | W35_XH4K5HT | 42B |
| ROC8 | W35_XH4K5HT | 42C |
| ROC9 | W35_XH4K5HT | 43A |
| Ibias_DAC, Ibias_DAC Data | 132 | 134 | 130 | 134 | 138 | 142 | 134 | 146 | 144 | 134 |
| Vana, VanaData | 127 | 139 | 120 | 115 | 128 | 129 | 123 | 131 | 125 | 125 |
| CalDelData and plots | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| VthrCompData and plots | 5 | 11 | 0 | 6 | 22 | 24 | 16 | 7 | 1 | 11 | CRAP due to timing issues
