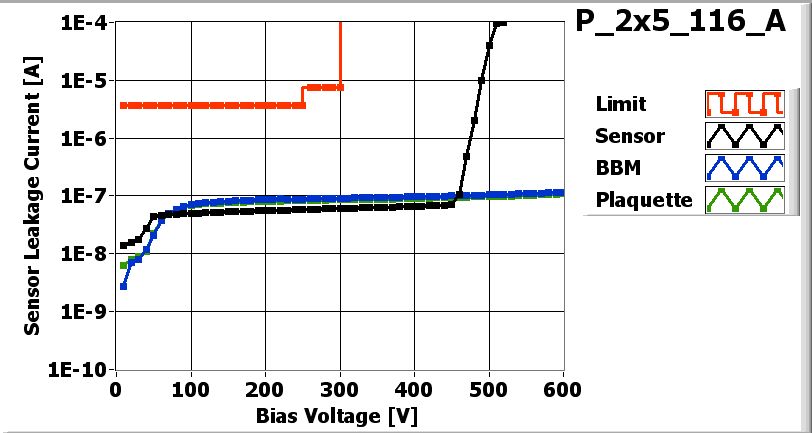

![[IMAGE] of](P_2x5_116_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_116_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Arndt Kirk on date 3/1/2007
| Part | ID |
|---|---|
| BBM | BBM_116-2x5 |
| VHDI | 2x5_304 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W34_XA4K3PT | 23D |
| ROC1 | W34_XA4K3PT | 23B |
| ROC2 | W34_XA4K3PT | 23A |
| ROC3 | W34_XA4K3PT | 22D |
| ROC4 | W34_XA4K3PT | 22C |
| ROC5 | W34_XA4K3PT | 17D |
| ROC6 | W34_XA4K3PT | 18A |
| ROC7 | W34_XA4K3PT | 18B |
| ROC8 | W34_XA4K3PT | 18C |
| ROC9 | W34_XA4K3PT | 18D |
Inspected by Arndt Kirk on date 3/9/2007
| LR_dev | 0.039 |
| LL_dev | 0.040 |
| FINAL COMMENT by Arndt Kirk | no assembly problem No wirebond problem. |
PLAQUETTE made READY for ENCAPSULATION on 3/9/2007 by Arndt Kirk
PLAQUETTE encapsulated on 3/9/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 3/9/2007 by Ozhan Koybasi
P_2x5_116_Aon 3/12/2007 11:40 AM
P_2x5_116_Aon 3/12/2007 11:40 AM
BAD IV curve. Removed HV bond and still BAD IV curve. need to replace FANOUT BOARD. BACK TO assembly.
FANOUT BOARD replaced on 3/15/07
P_2x5_116_A-1on 3/15/2007 12:10 PM
P_2x5_116_A-1on 3/15/2007 12:10 PM
PLAQUETTE TESTED on 2007-03-15 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 138 | 138 | 132 | 140 | 130 | 128 | 142 | 138 | 150 | 134 | |
| Vana | 121 | 123 | 133 | 139 | 131 | 114 | 144 | 129 | 132 | 131 | |
| Cal_Del | 92 | 94 | 73 | 82 | 74 | 104 | 81 | 80 | 78 | 80 | |
| Vthrs_Comp | 63 | 69 | 65 | 71 | 78 | 73 | 87 | 76 | 80 | 77 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |

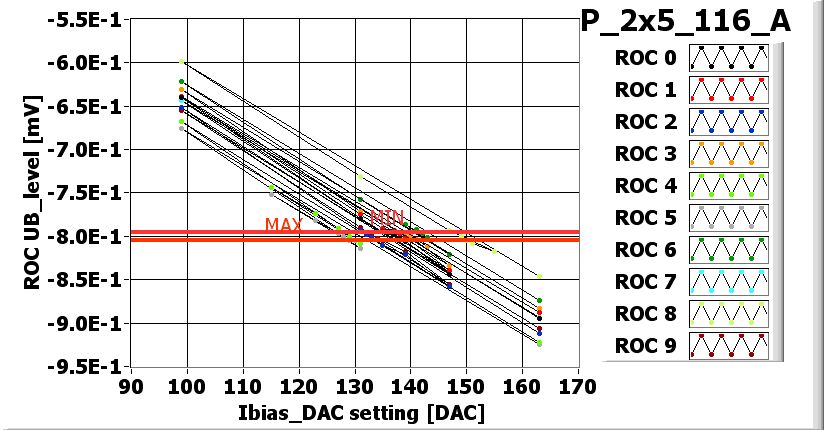

![[IMAGE] of](P_2x5_116_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

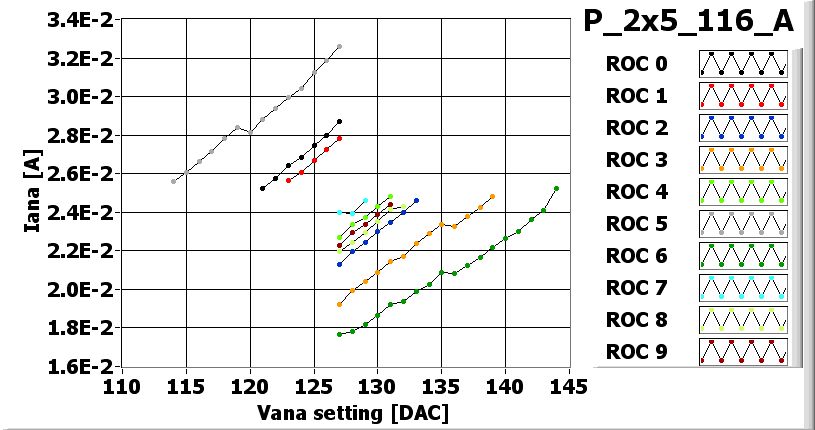

![[IMAGE] of](P_2x5_116_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_116_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_116_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_116_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_116_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 120 | 125 | 120 | 95 | 125 | 170 | 120 | 115 | 135 | 125 |
| Vsf | 135 | 140 | 140 | 140 | 140 | 140 | 145 | 140 | 140 | 140 |
| VoffsetOp | 60 | 65 | 65 | 75 | 80 | 80 | 115 | 95 | 95 | 75 |
| VIbias_PH | 105 | 100 | 105 | 105 | 100 | 100 | 95 | 100 | 100 | 100 |

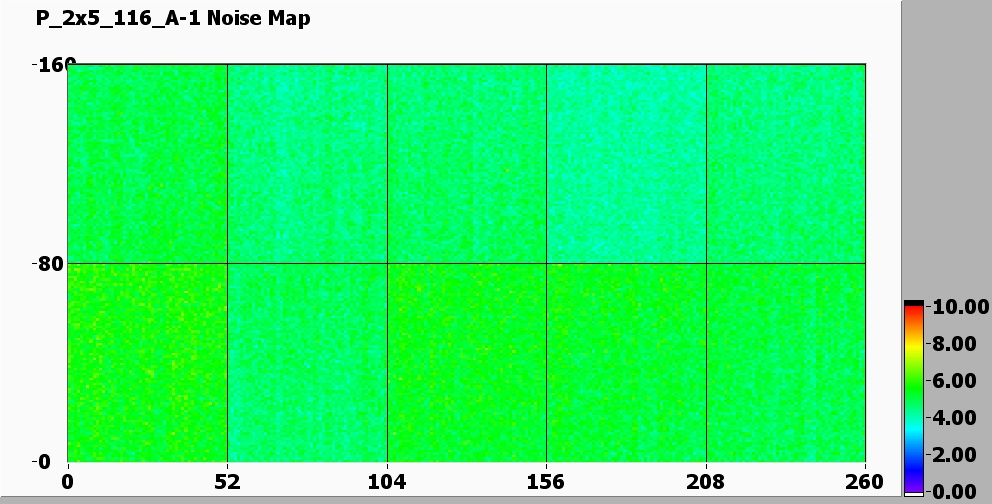

Noise MAP
![[IMAGE] of](P_2x5_116_A-1-580-noise.jpg)

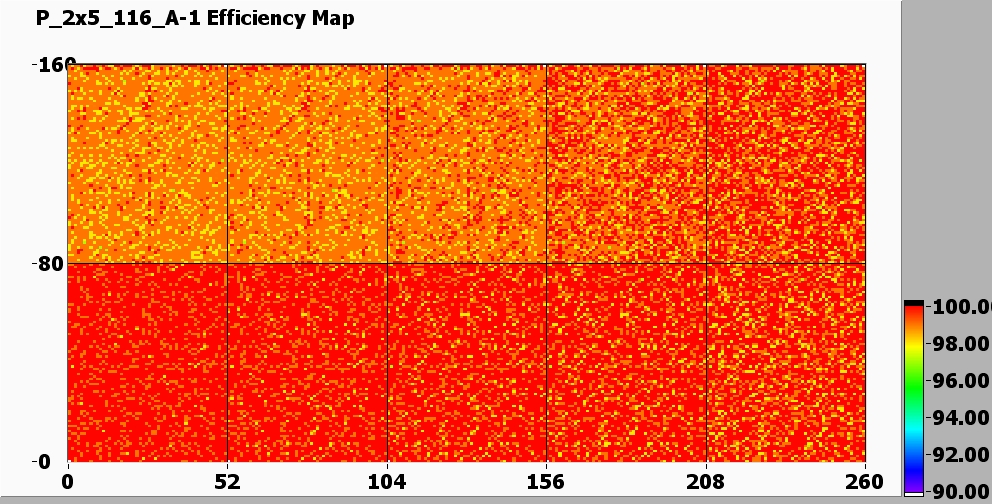

Efficiency MAP
![[IMAGE] of](P_2x5_116_A-1-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
