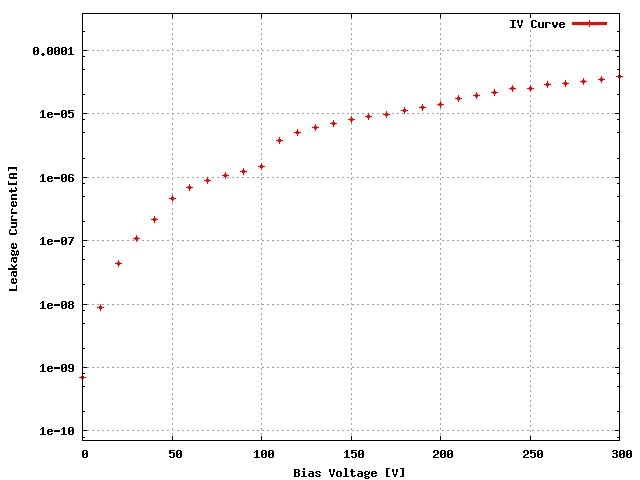

Sensor: S_2x5_116, Data for leakage current measurement , and plot on overall it is a BAD sensor

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	23D
ROC1	W34_XA4K3PT	23B
ROC2	W34_XA4K3PT	23A
ROC3	W34_XA4K3PT	22D
ROC4	W34_XA4K3PT	22C
ROC5	W34_XA4K3PT	17D
ROC6	W34_XA4K3PT	18A
ROC7	W34_XA4K3PT	18B
ROC8	W34_XA4K3PT	18C
ROC9	W34_XA4K3PT	18D

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	140	140	134	142	130	130	144	140	150	136
Vana, VanaData	121	122	133	138	131	114	144	129	132	131
CalDelData and plots	92	94	73	82	74	104	81	80	78	79
VthrCompData and plots	63	68	65	70	78	74	87	76	80	76
TestDdata ,TestD Plots	0	0	0	0	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

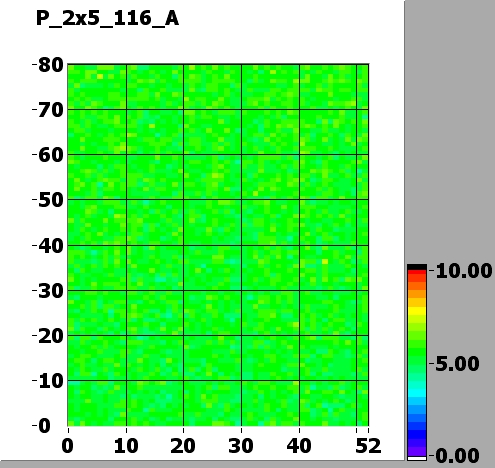

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

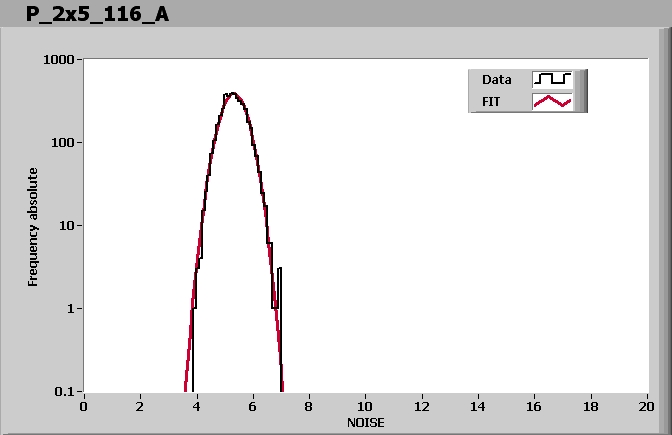

ROC0 NOISE			MEAN = 5.506531 SIGMA = 0.429723

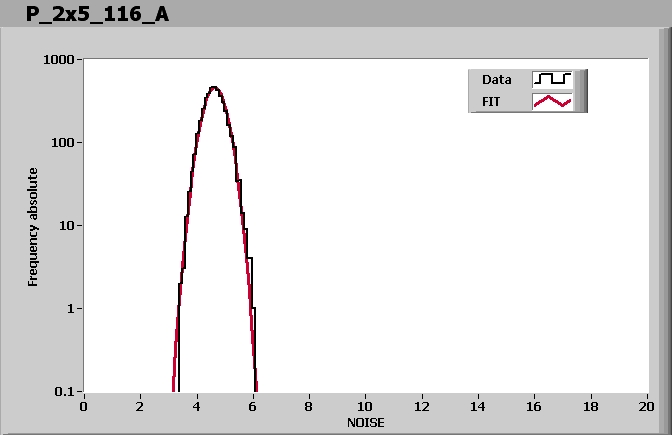

ROC1 NOISE			MEAN = 4.631426 SIGMA = 0.364023
ROC2 NOISE			MEAN = 5.313952 SIGMA = 0.428529

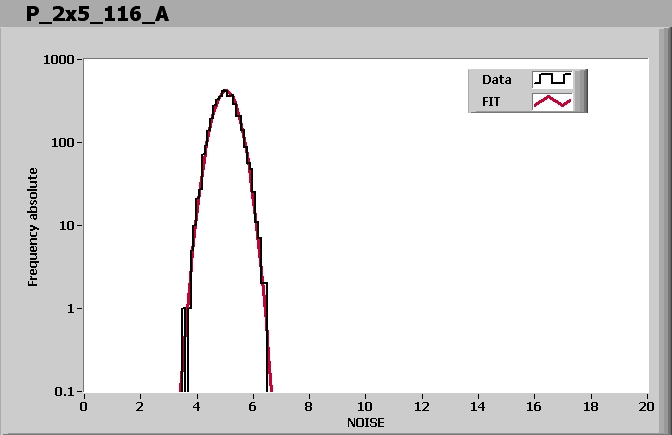

ROC3 NOISE			MEAN = 5.030611 SIGMA = 0.396308

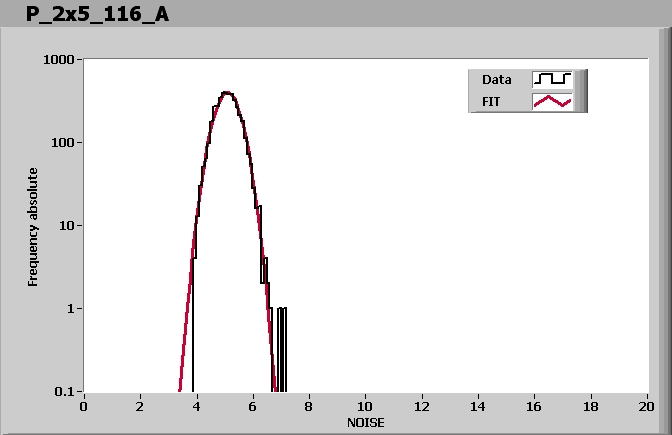

ROC4 NOISE			MEAN = 5.085828 SIGMA = 0.415268

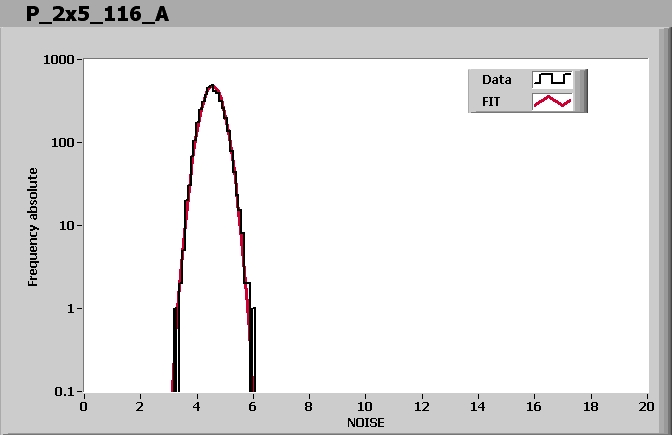

ROC5 NOISE			MEAN = 4.555774 SIGMA = 0.351711
ROC6 NOISE			MEAN = 4.682908 SIGMA = 0.370273
ROC7 NOISE			MEAN = 4.668166 SIGMA = 0.364567
ROC8 NOISE			MEAN = 4.635776 SIGMA = 0.377696

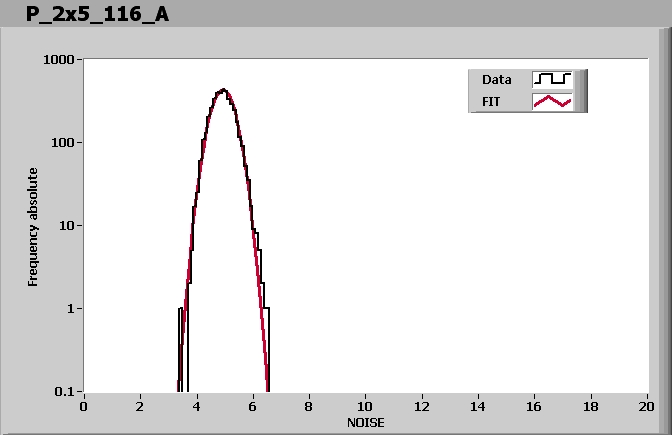

ROC9 NOISE			MEAN = 4.922243 SIGMA = 0.387397

Comment (if any): BAD IV

End testing time: 12:02 PM
