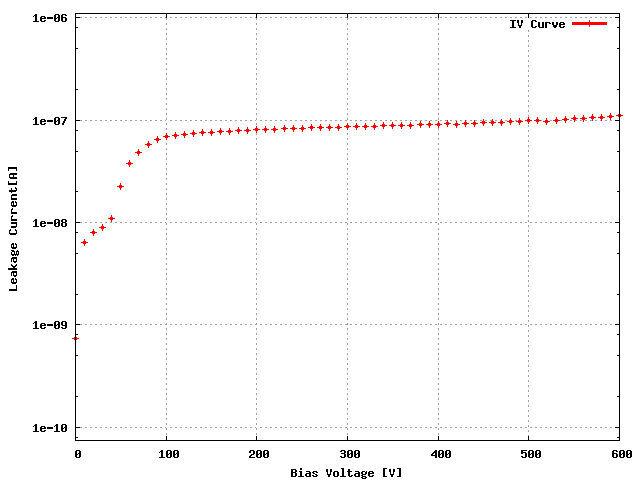

Sensor: S_2x5_116, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W34_XA4K3PT	23D
ROC1	W34_XA4K3PT	23B
ROC2	W34_XA4K3PT	23A
ROC3	W34_XA4K3PT	22D
ROC4	W34_XA4K3PT	22C
ROC5	W34_XA4K3PT	17D
ROC6	W34_XA4K3PT	18A
ROC7	W34_XA4K3PT	18B
ROC8	W34_XA4K3PT	18C
ROC9	W34_XA4K3PT	18D

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	138	138	132	140	130	128	142	138	150	134
Vana, VanaData	121	123	133	139	131	114	144	129	132	131
CalDelData and plots	92	94	73	82	74	104	81	80	78	80
VthrCompData and plots	63	69	65	71	78	73	87	76	80	77
TestDdata ,TestD Plots	0	1	0	0	0	0	0	0	0	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

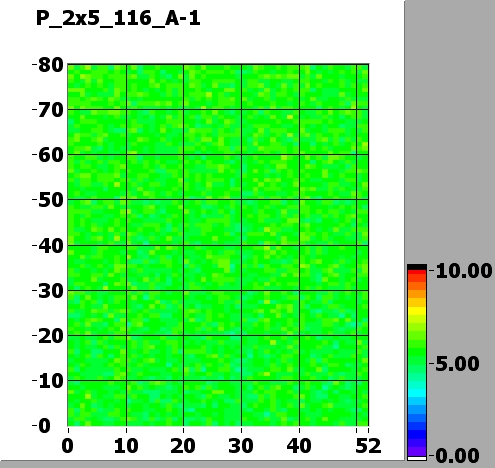

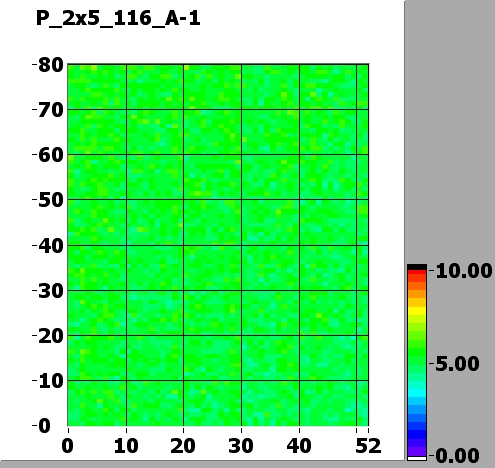

Noise MAP

Efficiency MAP

EXTRA DACs for NOISE

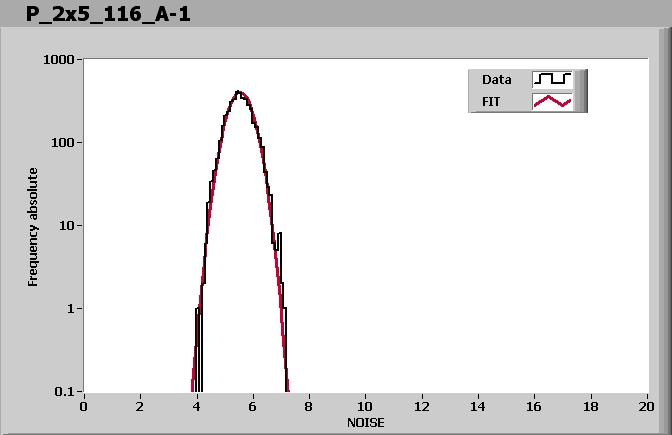

ROC0 NOISE			MEAN = 5.534267 SIGMA = 0.417426

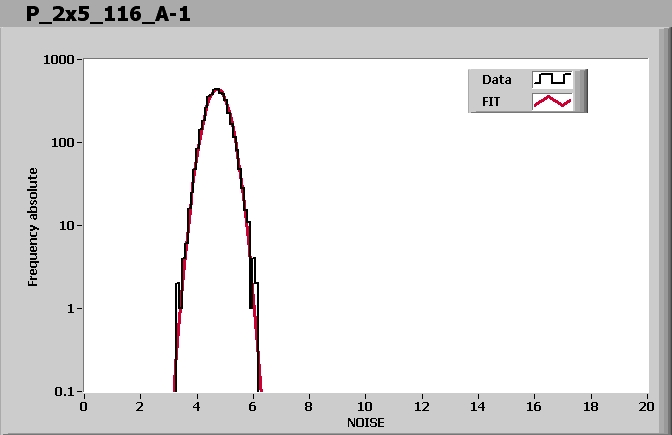

ROC1 NOISE			MEAN = 4.728073 SIGMA = 0.377328

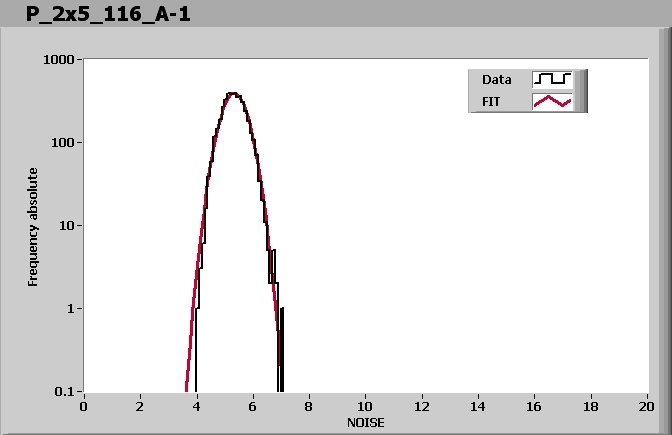

ROC2 NOISE			MEAN = 5.329179 SIGMA = 0.424082
ROC3 NOISE			MEAN = 5.183694 SIGMA = 0.417646
ROC4 NOISE			MEAN = 4.960626 SIGMA = 0.397121
ROC5 NOISE			MEAN = 4.545779 SIGMA = 0.367539
ROC6 NOISE			MEAN = 4.214947 SIGMA = 0.323836

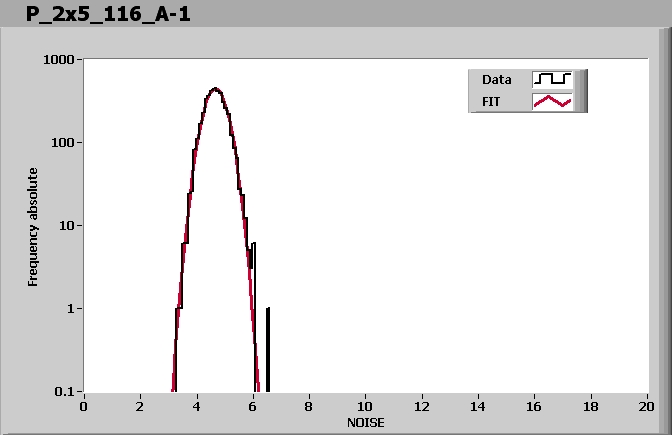

ROC7 NOISE			MEAN = 4.660118 SIGMA = 0.373697
ROC8 NOISE			MEAN = 4.490502 SIGMA = 0.372238
ROC9 NOISE			MEAN = 4.960927 SIGMA = 0.395533

Comment (if any): GOOD

P_2x5_116_A.html,

End testing time: 12:31 PM
