P_2x5_075_C

Parts committed by Bolla Gino on date 1/24/2007

PartID
BBMBBM_075-2x5
VHDI2x5_296

ROCROC waferLabel
ROC0XE4K3KT74A
ROC1XE4K3KT73A
ROC2XE4K3KT66A
ROC3XE4K3KT65B
ROC4XE4K3KT73C
ROC5XE4K3KT64B
ROC6XE4K3KT73D
ROC7XE4K3KT62B
ROC8XE4K3KT75C
ROC9XE4K3KT76C
Inspected by Lockwood Gale on date 1/29/2007
LR_dev0.030
LL_dev0.028
FINAL COMMENT by Lockwood GaleNo assembly problems. No Problems.

PLAQUETTE made READY for testing on 1/29/2007 by Lockwood Gale

P_2x5_075_Con 1/29/2007 12:39 PM

P_2x5_075_Con 1/29/2007 12:39 PM

P_2x5_075_C-1on 1/29/2007 3:01 PM

P_2x5_075_C-1on 1/29/2007 3:01 PM

P_2x5_075_C-2on 1/29/2007 3:48 PM

P_2x5_075_C-3on 1/29/2007 3:51 PM

P_2x5_075_C-3on 1/29/2007 3:51 PM

PLAQUETTE TESTED on 2007-01-29 by Gino Bolla

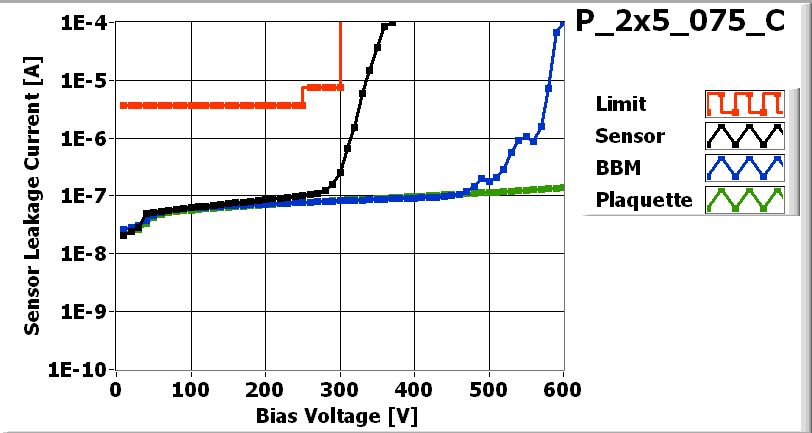

[IMAGE] of
IV_XML-File
Maximum Voltage 600 V
[IMAGE] of
LASER_XML-File
Depletion Voltage 44 V
Operational Voltage 84 V

ROCROC0ROC1ROC2ROC3ROC4ROC5ROC6ROC7ROC8ROC9
Ibias_DAC142130130136150126150142150136
Vana113117122129135113121134132133
Cal_Del90828594809991927673
Vthrs_Comp74798071756274688581
Unbumped10000000501
Dead000006910035
Noisy0000000000
Undecoded0000000000
Total BAD1000069105036

ASSEMBLY_XML-File SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
[IMAGE] of I_BIAS_DAC_XML-File
[IMAGE] of VANA_XML-File

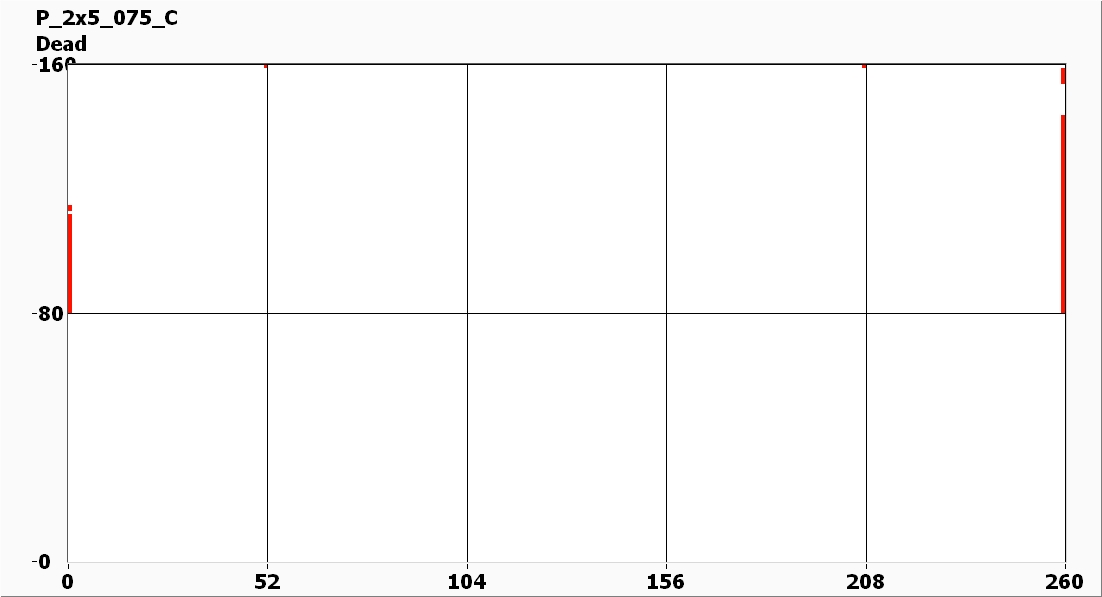

[IMAGE] of DEAD_XML-File
[IMAGE] of NOISY_XML-File
[IMAGE] of UNDECODED_XML-File

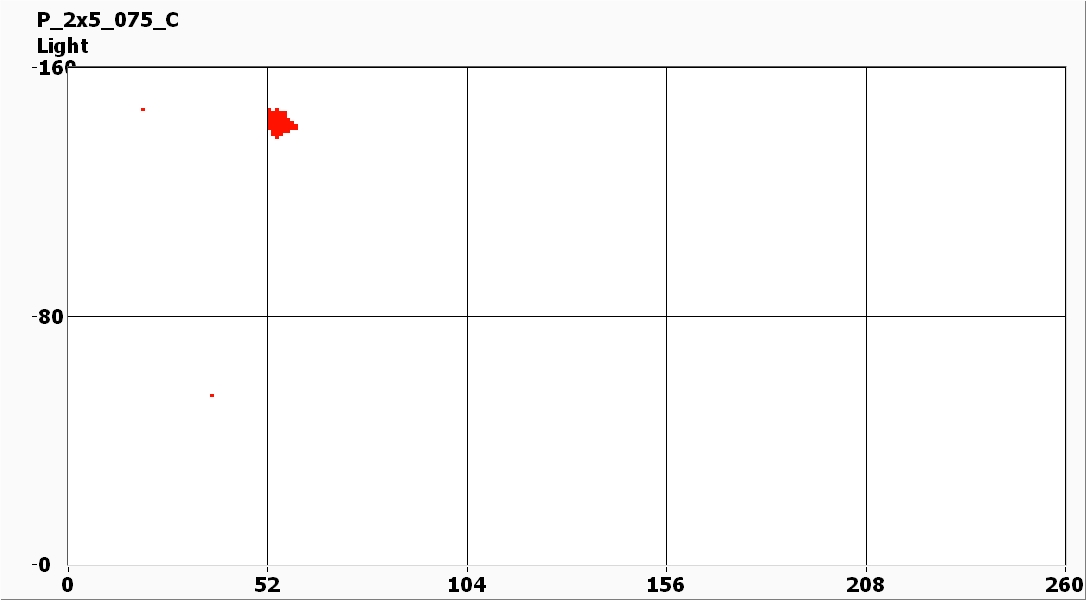

[IMAGE] of LIGHT_XML-File

PLAQUETTE READY TO BE POTTED

PLAQUETTE encapsulated on 2/2/2007 by Arndt Kirk

P_2x5_075_C-4on 2/2/2007 2:21 PM

P_2x5_075_C-4on 2/2/2007 2:21 PM AFTER POTTING

[IMAGE] of

BAD CHANNELS COMPARISON Before/after ENCAPSULATION

ROCDEADNOISYUNDECODEDTESTDLIGHT
ROC00/00/00/01/01/1
ROC10/00/00/00/00/0
ROC20/00/00/00/00/0
ROC30/00/30/00/00/0
ROC40/00/00/00/00/0
ROC569/690/00/00/00/0
ROC61/10/00/00/00/0
ROC70/00/00/00/00/0
ROC80/00/00/00/250/50
ROC935/350/00/01/11/1

DEVICE READY FOR SHIPPING

Shipped on date 2007-02-08

Plaquette assigned to panel P3L_032
