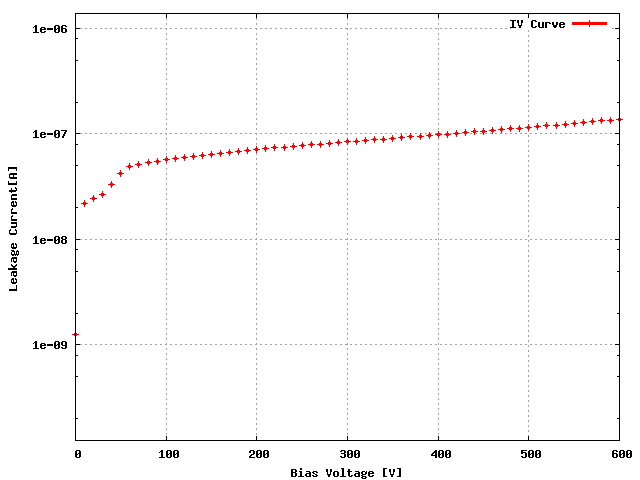

Sensor: S_2x5_075, Data for leakage current measurement , and plot on overall it is a GOOD sensor
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | XE4K3KT | 74A |
| ROC1 | XE4K3KT | 73A |
| ROC2 | XE4K3KT | 66A |
| ROC3 | XE4K3KT | 65B |
| ROC4 | XE4K3KT | 73C |
| ROC5 | XE4K3KT | 64B |
| ROC6 | XE4K3KT | 73D |
| ROC7 | XE4K3KT | 62B |
| ROC8 | XE4K3KT | 75C |
| ROC9 | XE4K3KT | 76C |
| Ibias_DAC, Ibias_DAC Data | 142 | 130 | 130 | 136 | 150 | 126 | 150 | 142 | 150 | 136 |
| Vana, VanaData | 113 | 117 | 122 | 129 | 135 | 113 | 121 | 134 | 132 | 133 |
| CalDelData and plots | 90 | 82 | 85 | 94 | 80 | 99 | 91 | 92 | 76 | 73 |
| VthrCompData and plots | 74 | 79 | 80 | 71 | 75 | 62 | 74 | 68 | 85 | 81 | Depletion Voltage is -44 and suggested operational voltage is -84
| TestDdata ,TestD Plots | 1 | 0 | 0 | 0 | 0 | 69 | 1 | 0 | 0 | 36 |
| LightData ,Light Plots | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 50 | 1 |
| Pass/Fail TestD | GOOD | GOOD | GOOD | GOOD | GOOD | BAD | GOOD | GOOD | GOOD | GOOD |
| Pass/Fail LIGHT | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | GOOD | BAD | GOOD |
Comment (if any): Still the same
This Device have been tested 1Times prior to this one and here are the links to the previous tests:End testing time: 3:23 PM
