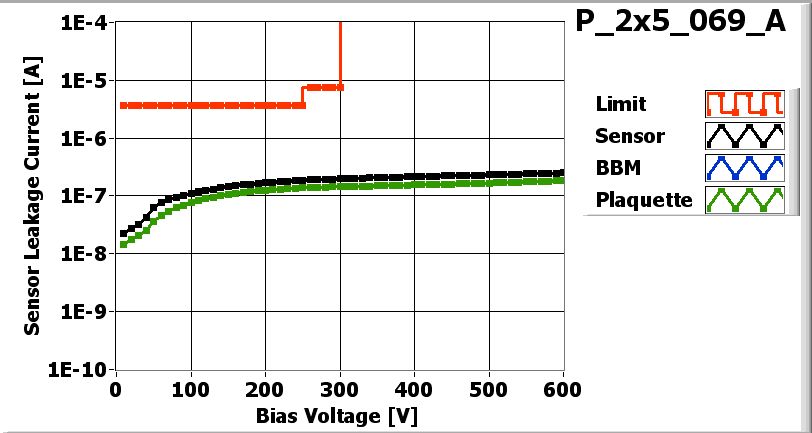

![[IMAGE] of](P_2x5_069_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |
![[IMAGE] of](P_2x5_069_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 46 V |
| Operational Voltage 86 V |
Parts committed by Bolla Gino on date 11/19/2007
| Part | ID |
|---|---|
| BBM | BBM_069-2x5 |
| VHDI | 2x5_719 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W55_D3LQE4T | 04D |
| ROC1 | W55_D3LQE4T | 04C |
| ROC2 | W55_D3LQE4T | 04B |
| ROC3 | W55_D3LQE4T | 04A |
| ROC4 | W55_D3LQE4T | 03B |
| ROC5 | W52_D0LQC8T | 28B |
| ROC6 | W52_D0LQC8T | 28C |
| ROC7 | W52_D0LQC8T | 28D |
| ROC8 | W52_D0LQC8T | 29A |
| ROC9 | W52_D0LQC8T | 11B |
Inspected by Lockwood Gale on date 12/5/2007
| LR_dev | 0.043 |
| LL_dev | 0.023 |
PLAQUETTE GLUED with HALF PRESSURE
| FINAL COMMENT by Lockwood Gale | Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 4,Ch 35, 2FL, 5 tries, ROC 7, CH 1, 2FL 4 tries, ROC 0 Ch 35, 2FL, 2 Tries, No other wirebonding problems. |
PLAQUETTE made READY for ENCAPSULATION on 12/5/2007 by Lockwood Gale
PLAQUETTE encapsulated on 12/7/2007 by Ozhan Koybasi
PLAQUETTE made READY for testing on 12/7/2007 by Ozhan Koybasi
P_2x5_069_Aon 12/11/2007 11:27 AM
P_2x5_069_A-1on 12/11/2007 11:57 AM
P_2x5_069_A-1on 12/11/2007 11:57 AM
PLAQUETTE TESTED on 2007-12-11 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 146 | 154 | 146 | 154 | 156 | 148 | 152 | 158 | 150 | 150 | |
| Vana | 151 | 145 | 142 | 159 | 138 | 134 | 142 | 145 | 149 | 139 | |
| Cal_Del | 91 | 87 | 100 | 82 | 79 | 90 | 89 | 78 | 74 | 83 | |
| Vthrs_Comp | 84 | 93 | 71 | 93 | 89 | 78 | 77 | 90 | 87 | 87 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 1 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_069_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

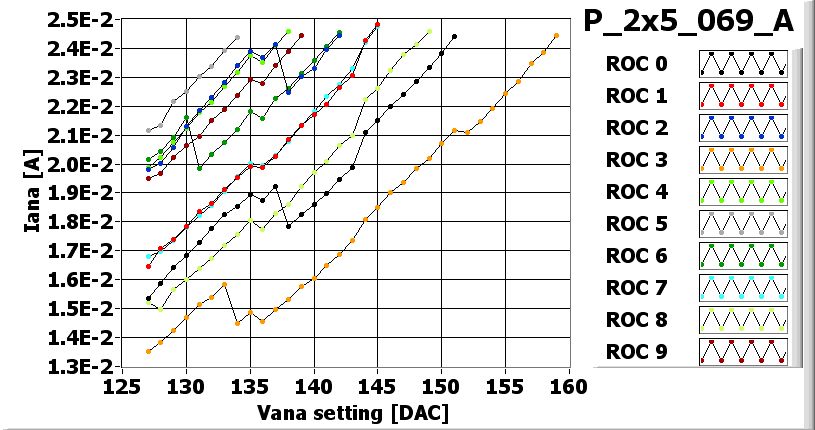

![[IMAGE] of](P_2x5_069_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_069_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_069_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_069_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_069_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 95 | 95 | 95 | 100 | 105 | 95 | 90 | 95 | 100 | 95 |
| Vsf | 150 | 145 | 145 | 160 | 140 | 145 | 145 | 145 | 150 | 140 |
| VoffsetOp | 115 | 100 | 95 | 110 | 110 | 105 | 115 | 115 | 115 | 95 |
| VIbias_PH | 95 | 100 | 95 | 100 | 105 | 105 | 95 | 100 | 100 | 95 |

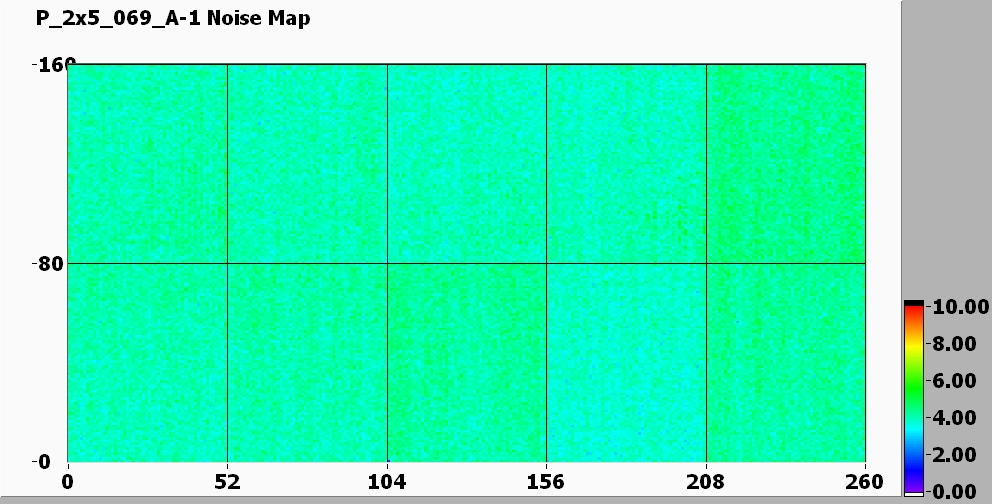

Noise MAP at VMAX
![[IMAGE] of](P_2x5_069_A-1-580-noise.jpg)
Efficiency MAP
![[IMAGE] of](P_2x5_069_A-1-580-efficiency.jpg)
Noise MAP at -200 V
![[IMAGE] of](P_2x5_069_A-1-200-noise.jpg)

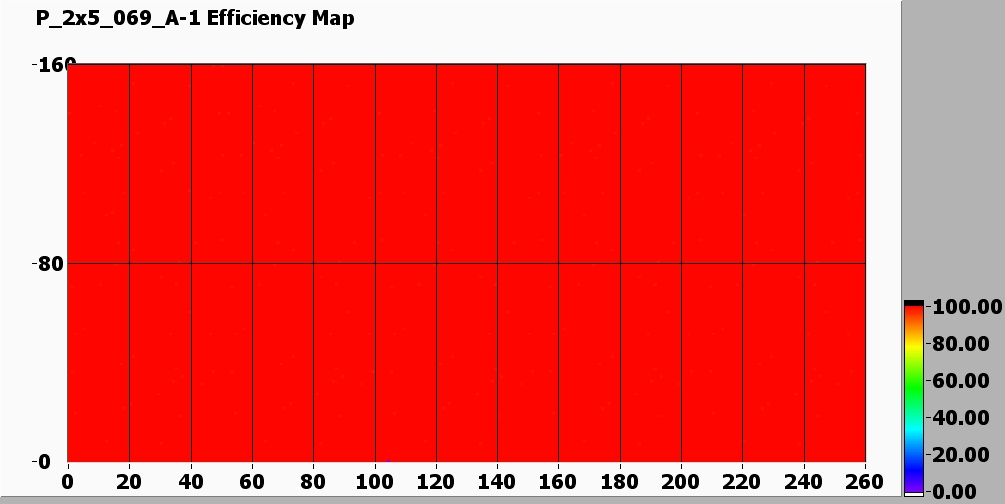

Efficiency MAP
![[IMAGE] of](P_2x5_069_A-1-200-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
