P_2x5_069

P_2x5_069_A-1

Production testing

Date:12/11/2007

Operator: Gino Bolla

start testing time:11:57 AM

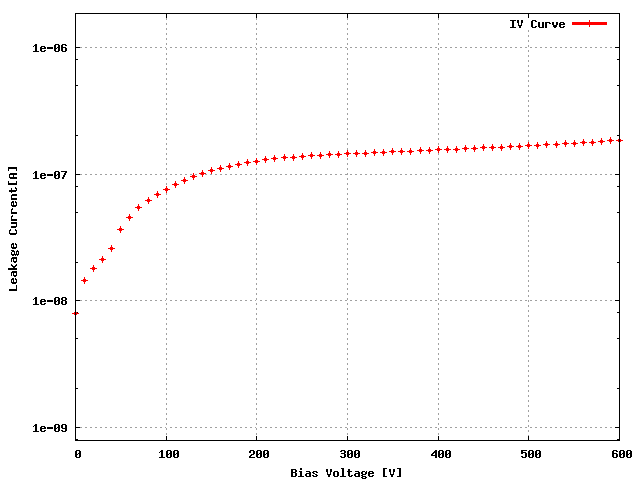

Sensor: S_2x5_069, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC ROC wafer Label

ROC0 W55_D3LQE4T 04D

ROC1 W55_D3LQE4T 04C

ROC2 W55_D3LQE4T 04B

ROC3 W55_D3LQE4T 04A

ROC4 W55_D3LQE4T 03B

ROC5 W52_D0LQC8T 28B

ROC6 W52_D0LQC8T 28C

ROC7 W52_D0LQC8T 28D

ROC8 W52_D0LQC8T 29A

ROC9 W52_D0LQC8T 11B

ROC	ROC wafer	Label
ROC0	W55_D3LQE4T	04D
ROC1	W55_D3LQE4T	04C
ROC2	W55_D3LQE4T	04B
ROC3	W55_D3LQE4T	04A
ROC4	W55_D3LQE4T	03B
ROC5	W52_D0LQC8T	28B
ROC6	W52_D0LQC8T	28C
ROC7	W52_D0LQC8T	28D
ROC8	W52_D0LQC8T	29A
ROC9	W52_D0LQC8T	11B

Inspected by Lockwood Gale on date 12/5/2007

LR_dev 0.043

LL_dev 0.023

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Lockwood Gale

Force used to join BBM to VHDI = 2.5 kg per ROC. No assembly problems. ROC 4,Ch 35, 2FL, 5 tries, ROC 7, CH 1, 2FL 4 tries, ROC 0 Ch 35, 2FL, 2 Tries, No other wirebonding problems.

PLAQUETTE made READY for ENCAPSULATION on 12/5/2007 by Lockwood Gale

PLAQUETTE encapsulated on 12/7/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 12/7/2007 by Ozhan Koybasi

P_2x5_069_Aon 12/11/2007 11:27 AM

P_2x5_069_A-1on 12/11/2007 11:57 AM

Depletion Voltage is -46 and suggested operational voltage is -86

Ibias_DAC, Ibias_DAC Data	146	154	146	154	156	148	152	158	150	150
Vana, VanaData	151	145	142	159	138	134	142	145	149	139
CalDelData and plots	91	87	100	82	79	90	89	78	74	83
VthrCompData and plots	84	93	71	93	89	78	77	90	87	87
TestDdata ,TestD Plots	0	0	1	0	1	0	0	0	1	0
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

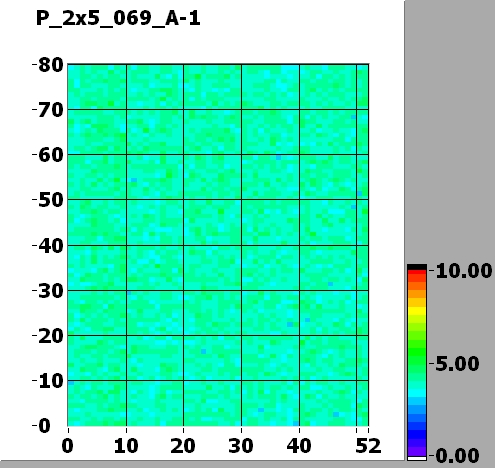

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

VHldDe	95	95	95	100	105	95	90	95	100	95
Vsf	150	145	145	160	140	145	145	145	150	140
VoffsetOp	115	100	95	110	110	105	115	115	115	95
VIbias_PH	95	100	95	100	105	105	95	100	100	95

ROC0 NOISE			MEAN = 3.970300 SIGMA = 0.302564
ROC1 NOISE			MEAN = 4.013617 SIGMA = 0.300366
ROC2 NOISE			MEAN = 4.152866 SIGMA = 0.340892
ROC3 NOISE			MEAN = 3.776231 SIGMA = 0.292243
ROC4 NOISE			MEAN = 4.143495 SIGMA = 0.329299
ROC5 NOISE			MEAN = 4.314029 SIGMA = 0.340311
ROC6 NOISE			MEAN = 3.913008 SIGMA = 0.308266
ROC7 NOISE			MEAN = 3.895494 SIGMA = 0.309281
ROC8 NOISE			MEAN = 3.950694 SIGMA = 0.315340

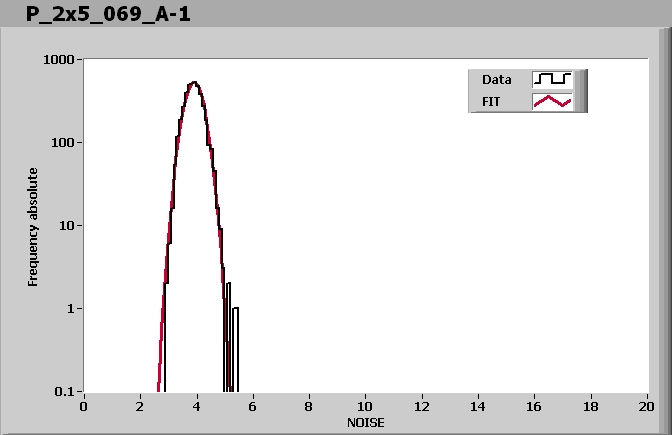

ROC9 NOISE			MEAN = 4.009857 SIGMA = 0.326630

Comment (if any): GOOD

This Device have been tested 1Times prior to this one and here are the links to the previous tests:

P_2x5_069_A.html,

End testing time: 12:28 PM
