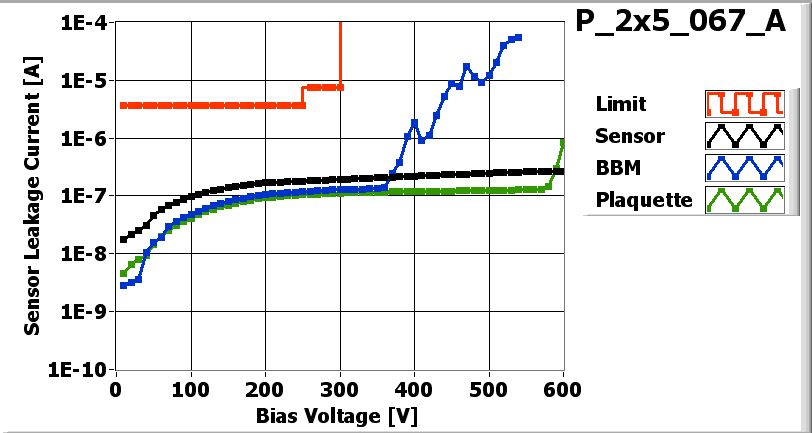

![[IMAGE] of](P_2x5_067_A_IV.jpg)
| IV_XML-File |
| Maximum Voltage 600 V |

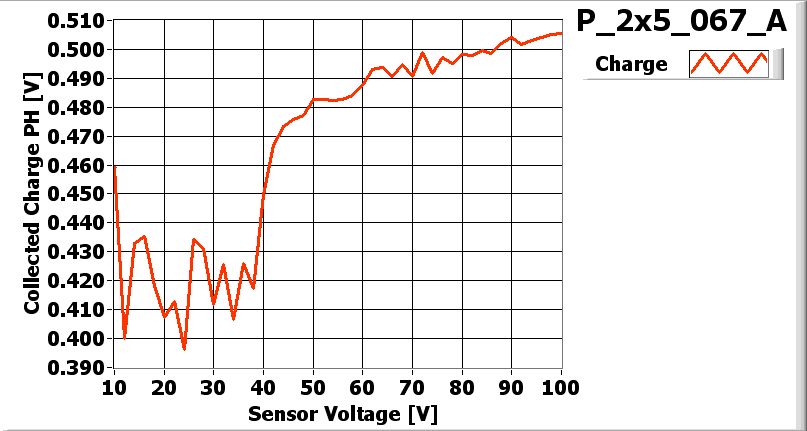

![[IMAGE] of](P_2x5_067_A_LASER.jpg)
| LASER_XML-File |
| Depletion Voltage 48 V |
| Operational Voltage 88 V |
Parts committed by Bolla Gino on date 2/13/2007
| Part | ID |
|---|---|
| BBM | BBM_067-2x5 |
| VHDI | 2x5_390 |
| ROC | ROC wafer | Label |
|---|---|---|
| ROC0 | W29_X64K5ST | 16B |
| ROC1 | W29_X64K5ST | 16A |
| ROC2 | W29_X64K5ST | 15D |
| ROC3 | W29_X64K5ST | 15B |
| ROC4 | W29_X64K5ST | 15A |
| ROC5 | W33_XC4K5LT | 63B |
| ROC6 | W33_XC4K5LT | 63D |
| ROC7 | W33_XC4K5LT | 64A |
| ROC8 | W33_XC4K5LT | 64B |
| ROC9 | W33_XC4K5LT | 64C |
Inspected by Lockwood Gale on date 2/16/2007
| LR_dev | 0.076 |
| LL_dev | 0.077 |
| FINAL COMMENT by Lockwood Gale | No assembly problems No wirebonding problems. |
PLAQUETTE made READY for testing on 2/16/2007 by Lockwood Gale
PLAQUETTE encapsulated on 2/20/2007 by Ozhan Koybasi
P_2x5_067_Aon 2/21/2007 8:24 AM
P_2x5_067_Aon 2/21/2007 8:24 AM
P_2x5_067_A-1on 2/21/2007 9:31 AM
P_2x5_067_A-1on 2/21/2007 9:31 AM
PLAQUETTE TESTED on 2007-02-21 by Gino Bolla
|
|
|||
|
|
| ROC | ROC0 | ROC1 | ROC2 | ROC3 | ROC4 | ROC5 | ROC6 | ROC7 | ROC8 | ROC9 | |
| Ibias_DAC | 132 | 138 | 154 | 128 | 138 | 132 | 130 | 144 | 144 | 140 | |
| Vana | 122 | 133 | 135 | 128 | 127 | 127 | 137 | 129 | 127 | 135 | |
| Cal_Del | 83 | 72 | 87 | 71 | 70 | 80 | 82 | 87 | 80 | 71 | |
| Vthrs_Comp | 72 | 91 | 76 | 66 | 85 | 81 | 69 | 78 | 78 | 81 | |
| Unbumped | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Dead | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Noisy | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Undecoded | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | |
| Total BAD | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
| ASSEMBLY_XML-File | SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File |
![[IMAGE] of](P_2x5_067_A_Ibias-dac.jpg) |
I_BIAS_DAC_XML-File |

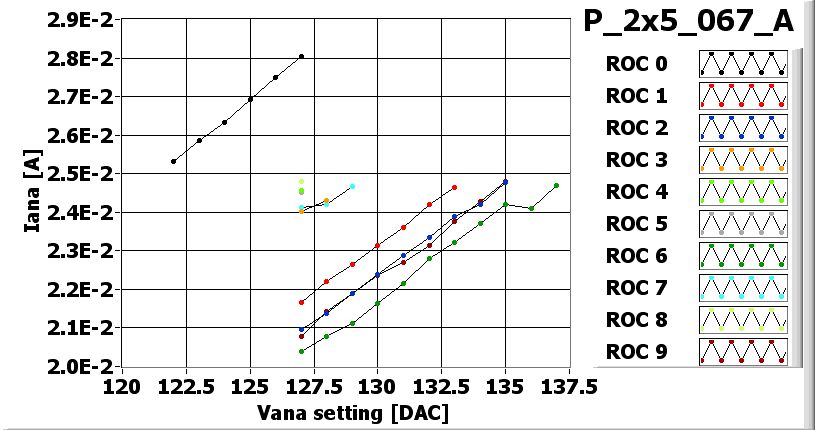

![[IMAGE] of](P_2x5_067_A_Vana.jpg) |
VANA_XML-File |
![[IMAGE] of](P_2x5_067_ADead-PixelAlivetest.jpg){kind=tracking} |
DEAD_XML-File |
![[IMAGE] of](P_2x5_067_ANoisy-Pixel-Alive.jpg){kind=tracking} |
NOISY_XML-File |
![[IMAGE] of](P_2x5_067_AUndecoded-PixelAlivetest.jpg){kind=tracking} |
UNDECODED_XML-File |
![[IMAGE] of](P_2x5_067_Ano-bump-light.jpg) |
LIGHT_XML-File |
EXTRA DACs for NOISE
| VHldDe | 125 | 110 | 115 | 120 | 145 | 130 | 115 | 105 | 130 | 115 |
| Vsf | 135 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 140 | 135 |
| VoffsetOp | 70 | 90 | 115 | 70 | 85 | 80 | 60 | 100 | 75 | 80 |
| VIbias_PH | 105 | 100 | 100 | 100 | 105 | 105 | 100 | 100 | 95 | 95 |

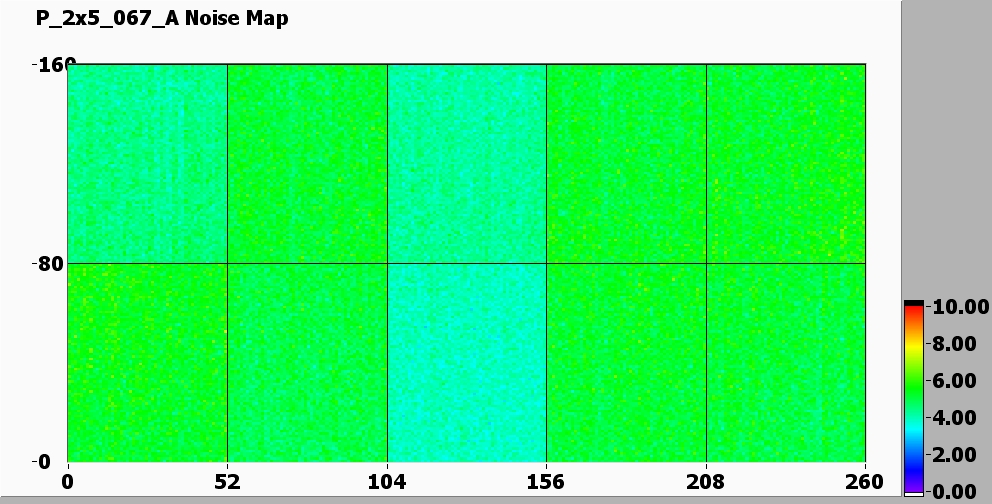

Noise MAP
![[IMAGE] of](P_2x5_067_A-580-noise.jpg)

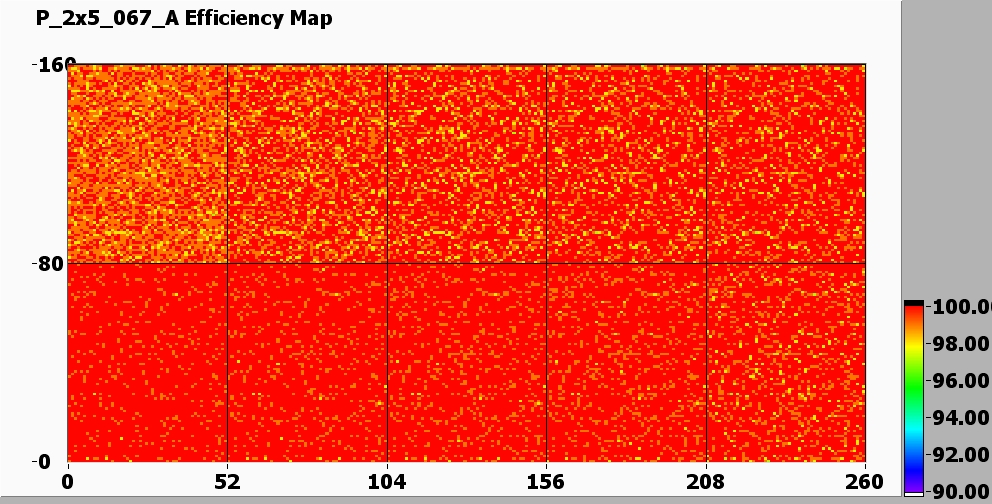

Efficiency MAP
![[IMAGE] of](P_2x5_067_A-580-efficiency.jpg)
PLAQUETTE READY TO BE SHIPPED
