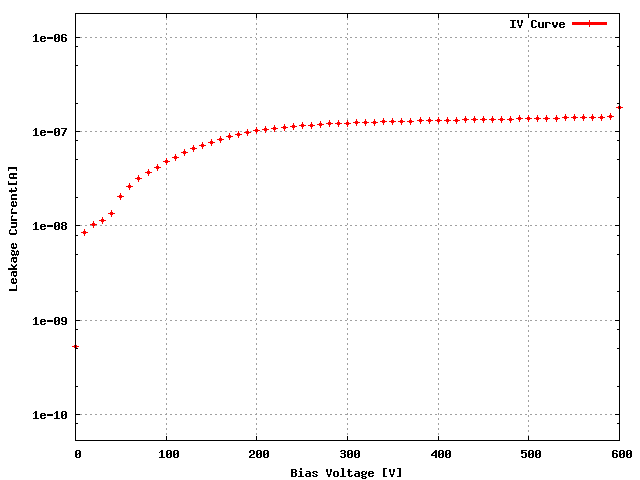

Sensor: S_2x5_067, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	W29_X64K5ST	16B
ROC1	W29_X64K5ST	16A
ROC2	W29_X64K5ST	15D
ROC3	W29_X64K5ST	15B
ROC4	W29_X64K5ST	15A
ROC5	W33_XC4K5LT	63B
ROC6	W33_XC4K5LT	63D
ROC7	W33_XC4K5LT	64A
ROC8	W33_XC4K5LT	64B
ROC9	W33_XC4K5LT	64C

Depletion Voltage is -48 and suggested operational voltage is -88

Ibias_DAC, Ibias_DAC Data	132	138	154	126	138	132	130	144	144	140
Vana, VanaData	122	132	134	128	127	127	135	128	127	134
CalDelData and plots	83	72	87	71	70	80	82	87	80	70
VthrCompData and plots	72	90	76	66	85	81	68	77	78	79
TestDdata ,TestD Plots	1	0	0	0	0	4	1	0	7	35
LightData ,Light Plots	0	0	0	0	0	0	0	0	0	0
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

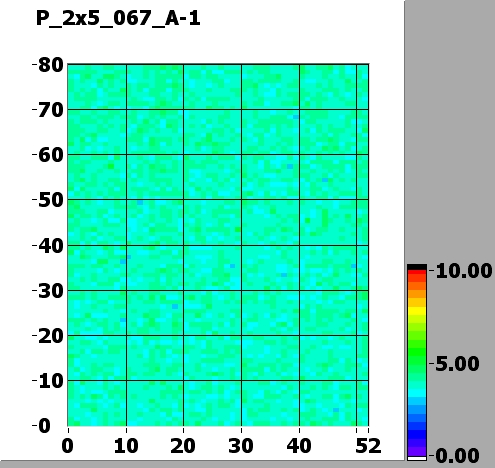

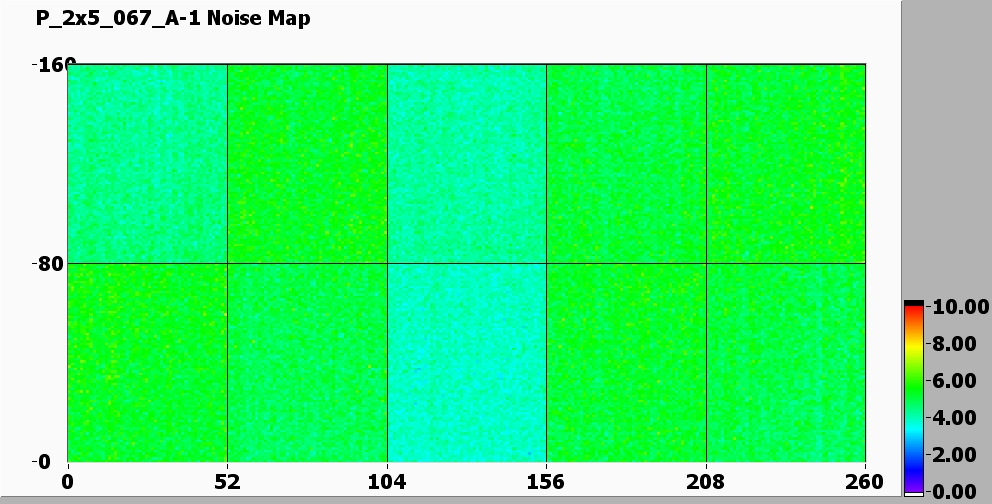

Noise MAP

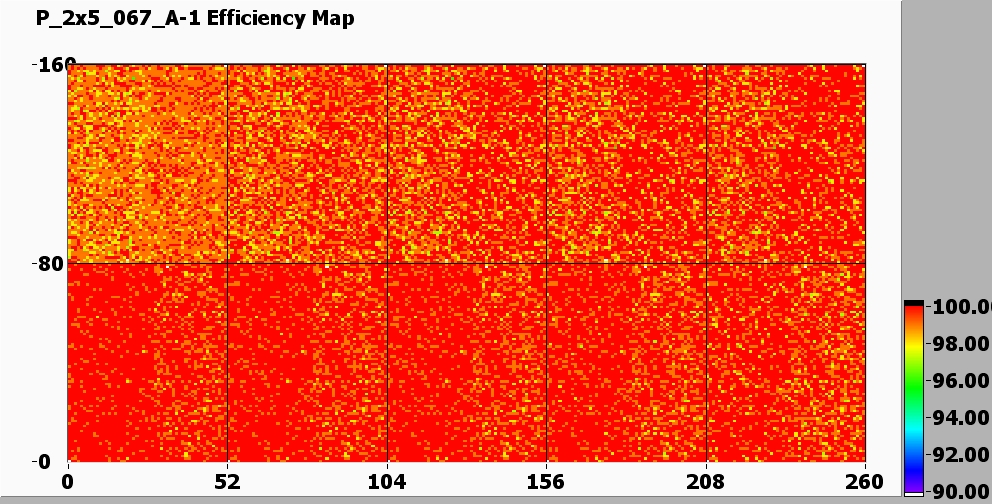

Efficiency MAP

EXTRA DACs for NOISE

ROC0 NOISE			MEAN = 5.305998 SIGMA = 0.391013
ROC1 NOISE			MEAN = 4.876252 SIGMA = 0.375646
ROC2 NOISE			MEAN = 3.863570 SIGMA = 0.298000
ROC3 NOISE			MEAN = 5.199494 SIGMA = 0.415495
ROC4 NOISE			MEAN = 4.928863 SIGMA = 0.412700

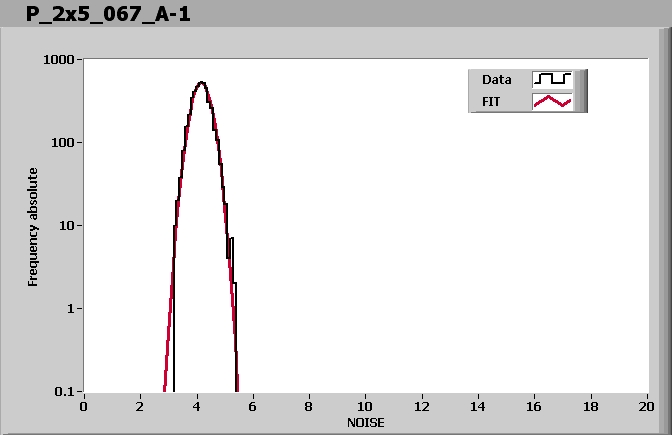

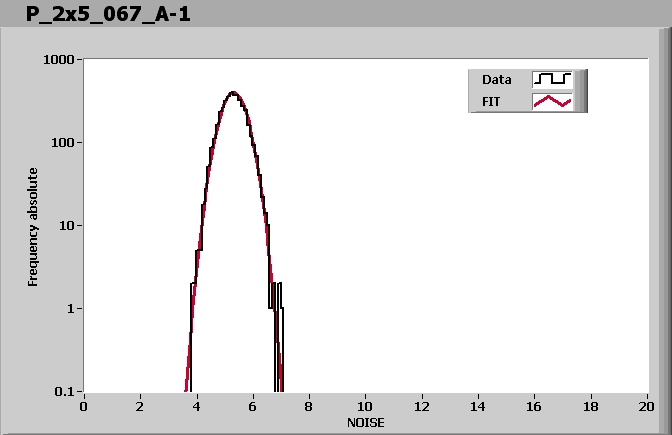

ROC5 NOISE			MEAN = 5.305847 SIGMA = 0.419027

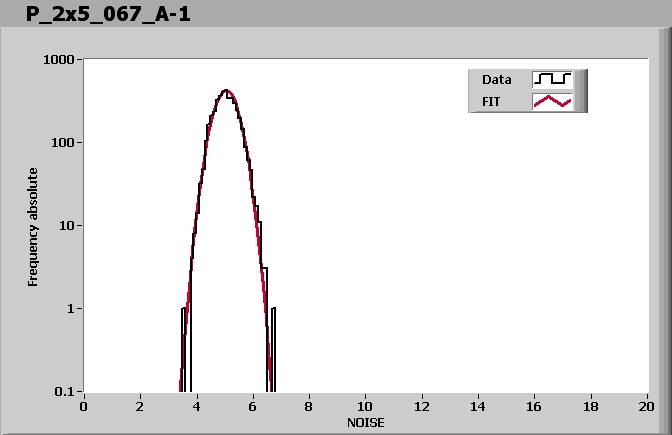

ROC6 NOISE			MEAN = 5.033364 SIGMA = 0.398641
ROC7 NOISE			MEAN = 4.157560 SIGMA = 0.315070
ROC8 NOISE			MEAN = 5.292802 SIGMA = 0.409580
ROC9 NOISE			MEAN = 4.356548 SIGMA = 0.338871

Comment (if any):

P_2x5_067_A.html,

End testing time: 9:52 AM
