P_2x5_058

P_2x5_058_C

Parts committed by Emily Grace on date 6/1/2007

Part	ID
BBM	BBM_058-2x5
VHDI	2x5_618

ROC ROC wafer Label

ROC0 DULQEDT 28A

ROC1 DULQEDT 28D

ROC2 DULQEDT 38C

ROC3 DULQEDT 38A

ROC4 DULQEDT 48B

ROC5 DULQEDT 39C

ROC6 DULQEDT 39A

ROC7 DULQEDT 49C

ROC8 DULQEDT 49D

ROC9 DULQEDT 49B

ROC	ROC wafer	Label
ROC0	DULQEDT	28A
ROC1	DULQEDT	28D
ROC2	DULQEDT	38C
ROC3	DULQEDT	38A
ROC4	DULQEDT	48B
ROC5	DULQEDT	39C
ROC6	DULQEDT	39A
ROC7	DULQEDT	49C
ROC8	DULQEDT	49D
ROC9	DULQEDT	49B

Inspected by Arndt Kirk on date 6/15/2007

Picture Comment

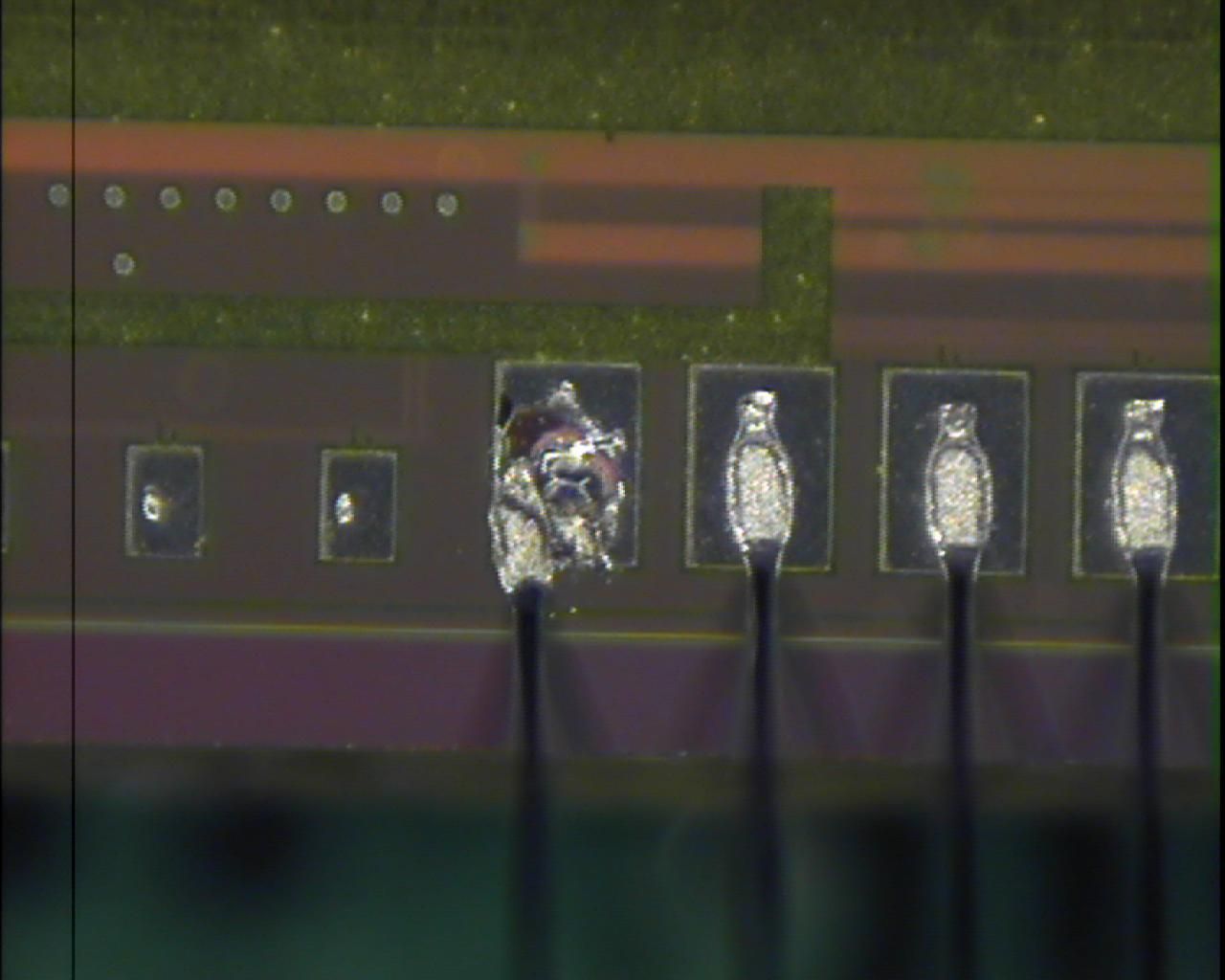

Multiple attempts required to wirebond to VHDI pad for ROC6 channel 1 GND_CAP removed metal from the center of the ROC pad. Repair bond is off-center on the ROC pad.

LR_dev 0.025

LL_dev 0.027

Picture	Comment
	Multiple attempts required to wirebond to VHDI pad for ROC6 channel 1 GND_CAP removed metal from the center of the ROC pad. Repair bond is off-center on the ROC pad.

PLAQUETTE GLUED with HALF PRESSURE

FINAL COMMENT by Arndt Kirk

Assembled at HALF-PRESSURE. No assembly problems. Multiple attempts required to bond to VHDI pads for ROC3 ch 1; ROC5 ch 1,35; ROC6 ch 1. Multiple bond cycles removed pad metal from ROC6 ch1 pad, repair bond is off-center on the ROC pad. All wires OK.

PLAQUETTE made READY for ENCAPSULATION on 6/15/2007 by Arndt Kirk

P_2x5_058_Con 6/15/2007 10:42 AM

PLAQUETTE encapsulated on 6/15/2007 by Ozhan Koybasi

PLAQUETTE made READY for testing on 6/15/2007 by Ozhan Koybasi

P_2x5_058_C-1on 6/18/2007 12:11 PM

PLAQUETTE TESTED on 2007-06-18 by Emily Grace

IV_XML-File

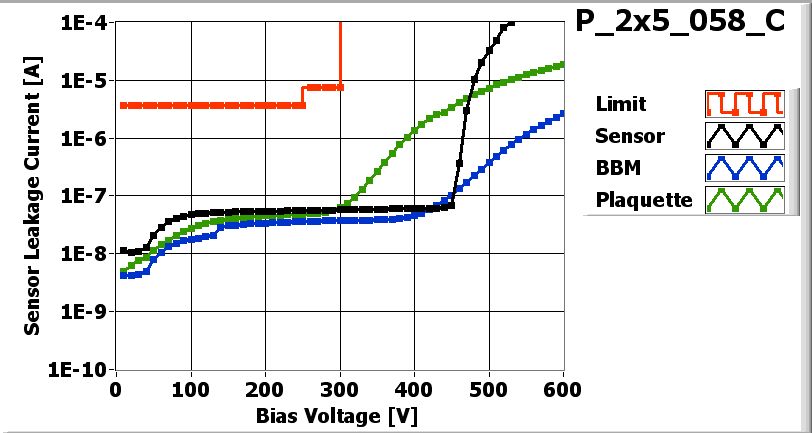

Maximum Voltage 600 V

LASER_XML-File

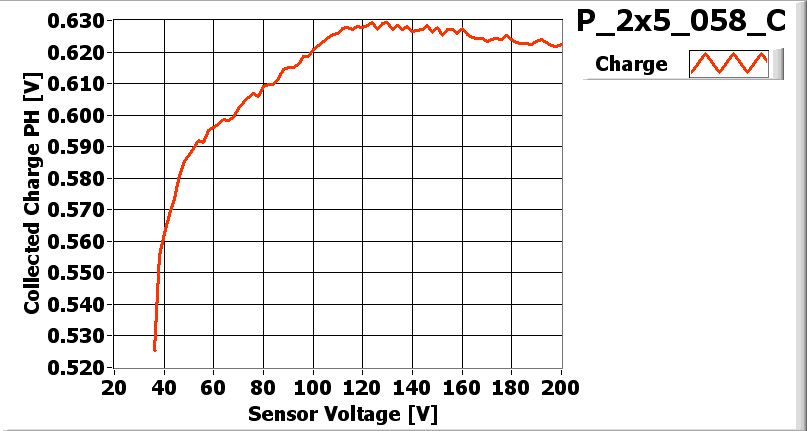

Depletion Voltage 54 V

Operational Voltage 94 V

ROC	ROC0	ROC1	ROC2	ROC3	ROC4	ROC5	ROC6	ROC7	ROC8	ROC9

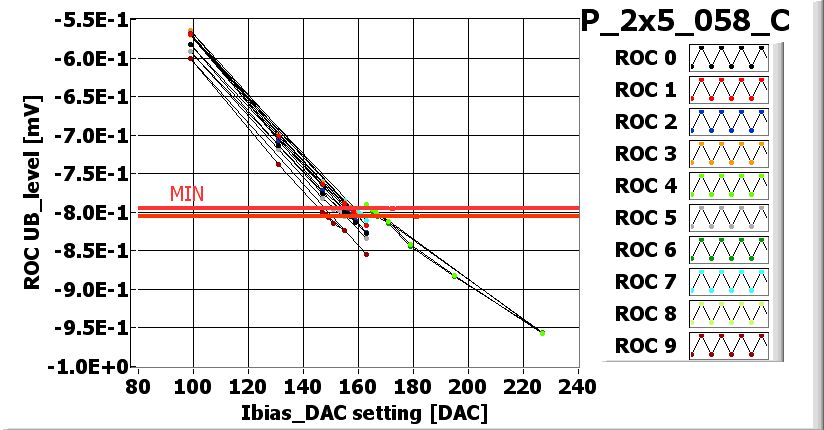

Ibias_DAC	156	158	156	158	166	154	166	160	158	148

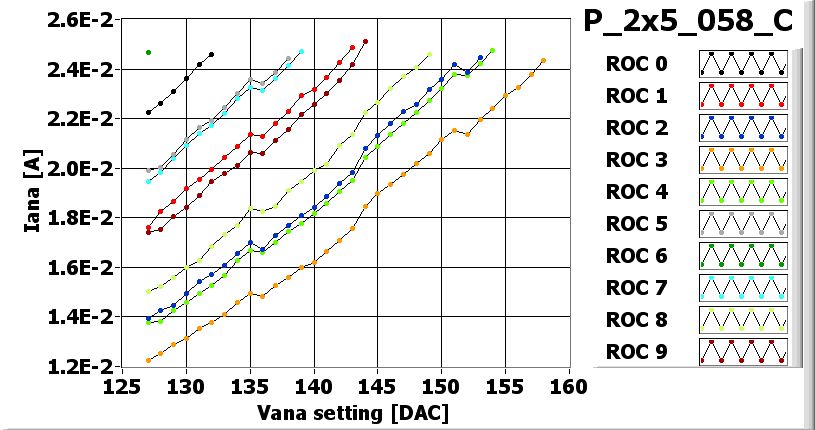

Vana	132	143	153	158	154	138	127	139	149	144
Cal_Del	79	92	96	82	83	90	93	84	88	92
Vthrs_Comp	91	90	88	89	89	76	84	92	84	92
Unbumped	0	1	1	0	0	2	2	0	0	8
Dead	0	0	0	0	0	0	1	0	0	0
Noisy	0	0	0	0	0	0	0	0	0	0
Undecoded	0	0	0	0	0	0	0	0	0	0
Total BAD	0	1	1	0	0	2	3	0	0	8

ASSEMBLY_XML-File	SUMMARY_XML-File, and SUMMARY_PER_ROC_XML-File
	I_BIAS_DAC_XML-File
	VANA_XML-File
	DEAD_XML-File
	NOISY_XML-File
	UNDECODED_XML-File
	LIGHT_XML-File

EXTRA DACs for NOISE

VHldDe	130	95	95	105	95	105	120	100	100	100
Vsf	140	145	150	155	150	140	140	140	150	140
VoffsetOp	120	110	110	125	120	110	110	125	100	100
VIbias_PH	100	95	100	95	95	95	100	100	105	105

Noise MAP at VMAX

Efficiency MAP

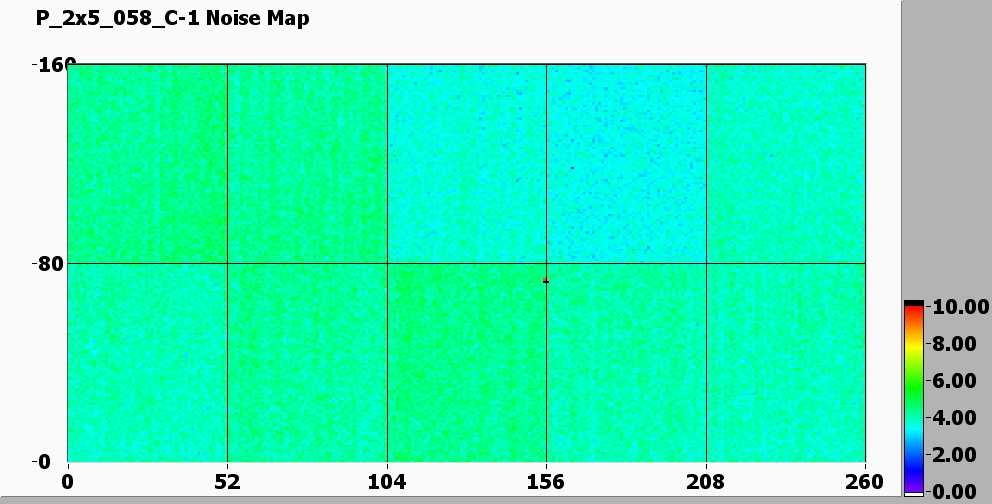

Noise MAP at -200 V

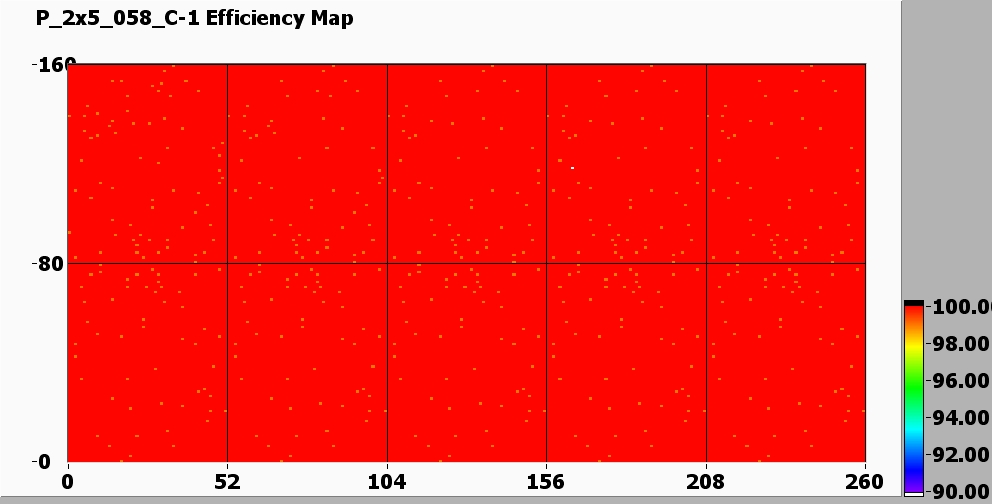

Efficiency MAP

PLAQUETTE READY TO BE SHIPPED

Shipped on date 2007-06-20
