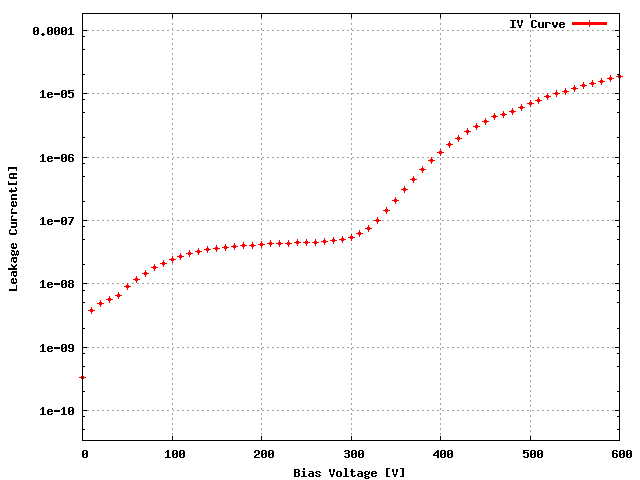

Sensor: S_2x5_058, Data for leakage current measurement , and plot on overall it is a GOOD sensor

ROC	ROC wafer	Label
ROC0	DULQEDT	28A
ROC1	DULQEDT	28D
ROC2	DULQEDT	38C
ROC3	DULQEDT	38A
ROC4	DULQEDT	48B
ROC5	DULQEDT	39C
ROC6	DULQEDT	39A
ROC7	DULQEDT	49C
ROC8	DULQEDT	49D
ROC9	DULQEDT	49B

Depletion Voltage is -50 and suggested operational voltage is -90

Ibias_DAC, Ibias_DAC Data	154	158	156	158	166	152	164	160	158	146
Vana, VanaData	132	143	153	158	153	139	127	139	149	144
CalDelData and plots	79	92	97	82	83	90	93	84	88	92
VthrCompData and plots	90	90	88	89	88	77	84	92	84	91
TestDdata ,TestD Plots	0	1	1	0	0	2	3	0	0	7
LightData ,Light Plots	0	1	1	0	0	2	2	0	0	8
Pass/Fail TestD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD
Pass/Fail LIGHT	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD	GOOD

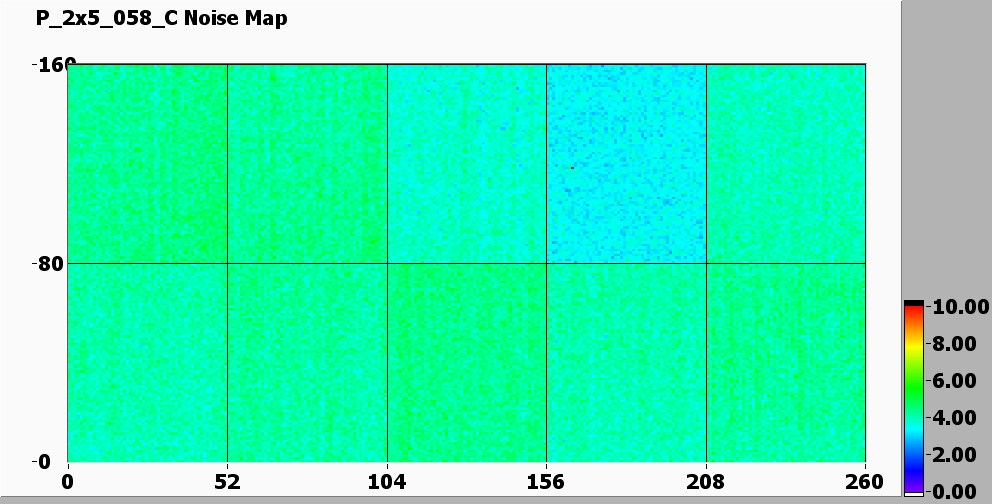

Noise MAP at VMAX

Efficiency MAP

EXTRA DACs for NOISE

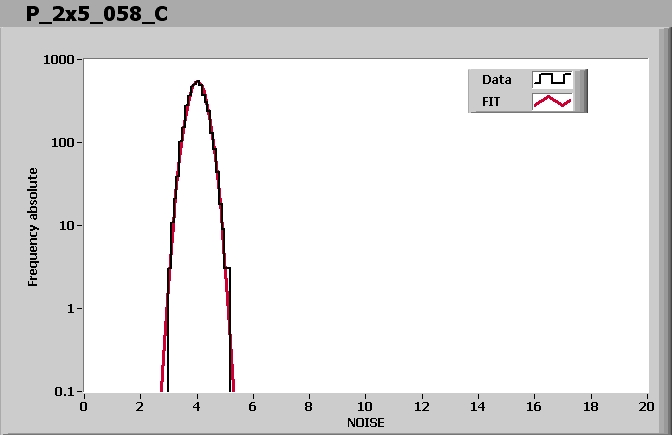

ROC0 NOISE			MEAN = 4.018936 SIGMA = 0.306717

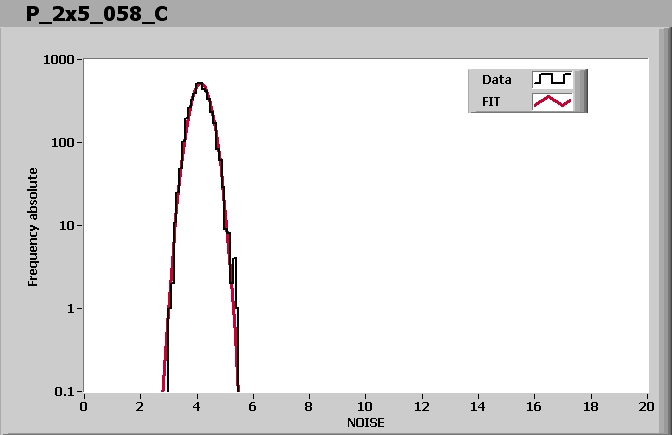

ROC1 NOISE			MEAN = 4.138491 SIGMA = 0.324333

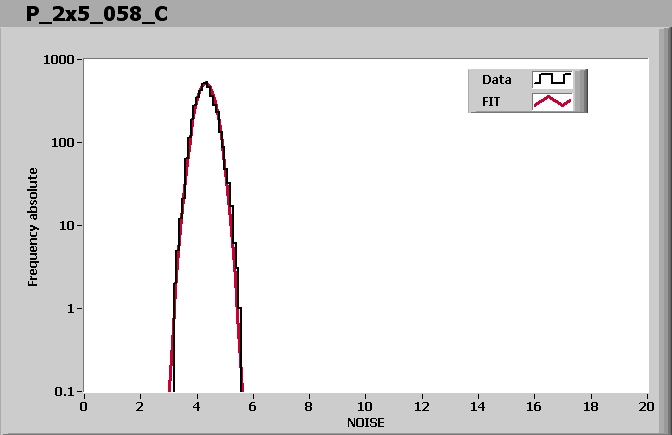

ROC2 NOISE			MEAN = 4.314458 SIGMA = 0.314903
ROC3 NOISE			MEAN = 3.998465 SIGMA = 0.318459

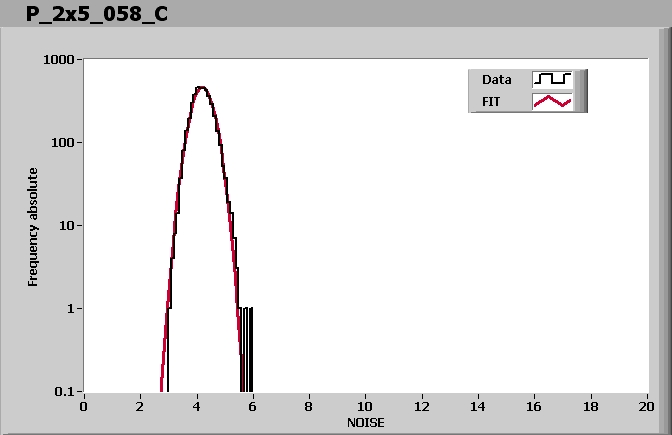

ROC4 NOISE			MEAN = 4.195565 SIGMA = 0.356274

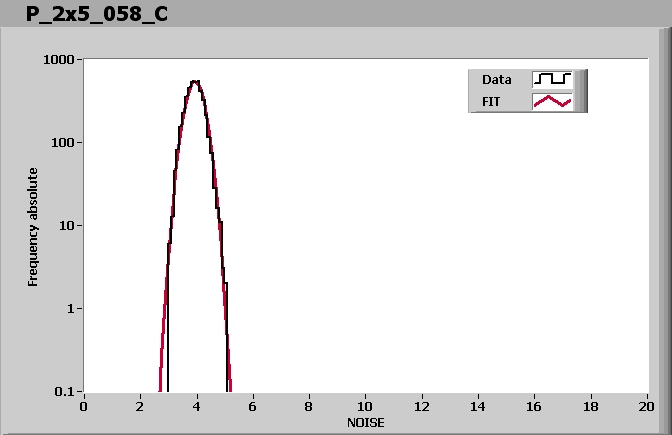

ROC5 NOISE			MEAN = 3.932841 SIGMA = 0.303297

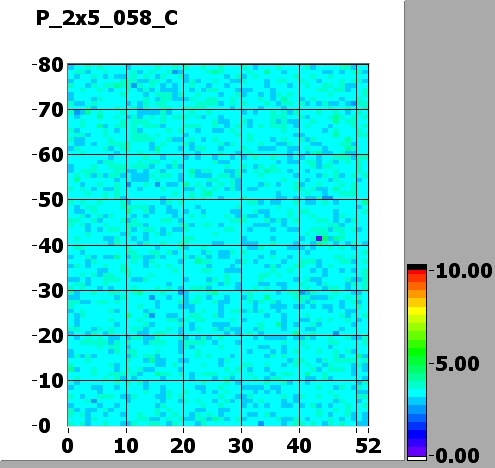

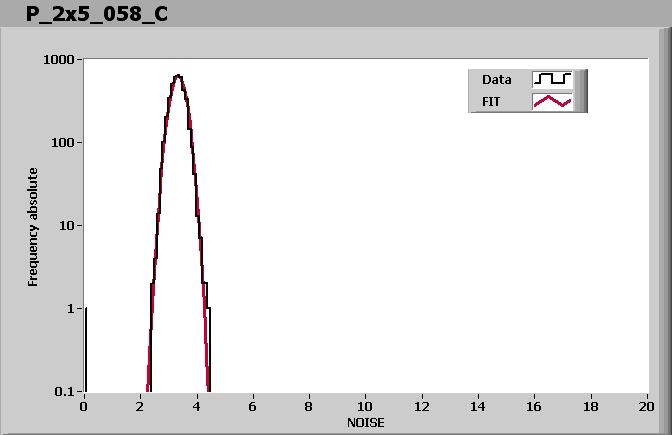

ROC6 NOISE			MEAN = 3.332391 SIGMA = 0.257679

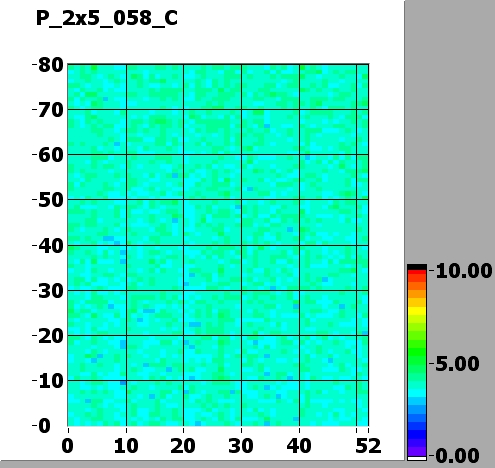

ROC7 NOISE			MEAN = 3.761906 SIGMA = 0.303154

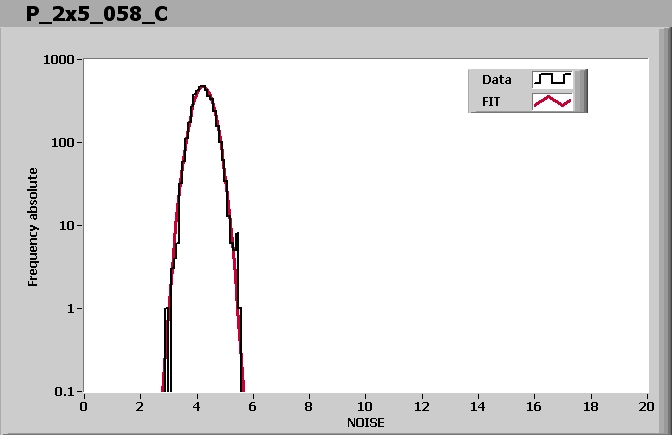

ROC8 NOISE			MEAN = 4.223526 SIGMA = 0.348752

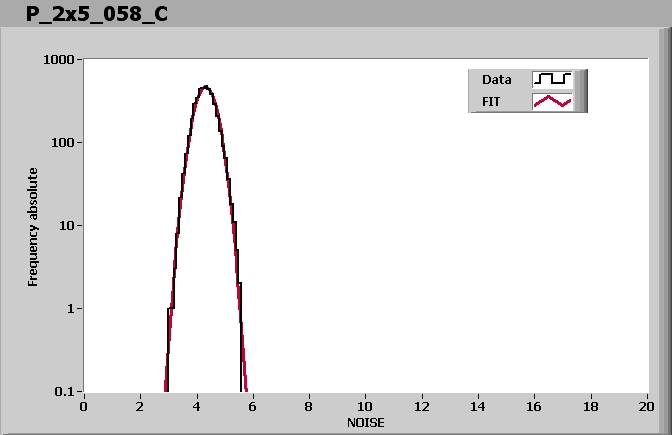

ROC9 NOISE			MEAN = 4.307264 SIGMA = 0.348460

Comment (if any):

End testing time: 11:13 AM
